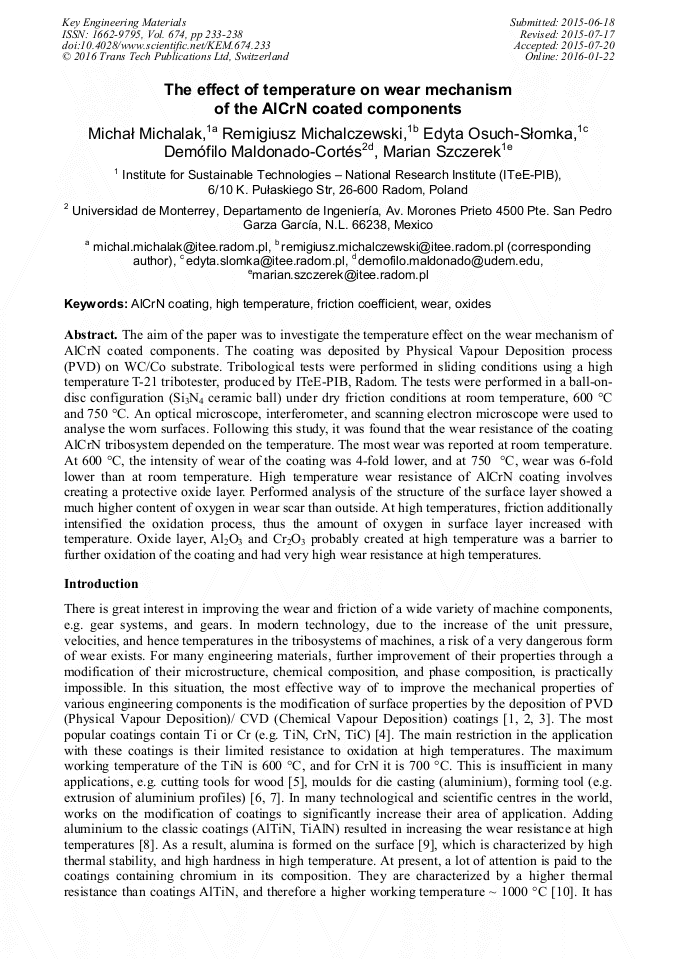

The Effect of Temperature on Wear Mechanism of the AlCrN Coated Components

Abstract:

The aim of the paper was to investigate the temperature effect on the wear mechanism of AlCrN coated components. The coating was deposited by Physical Vapour Deposition process (PVD) on WC/Co substrate. Tribological tests were performed in sliding conditions using high temperature T‑21 tribotester, produced by ITeE-PIB Radom. The tests were performed in a ball-on-disc configuration (Si₃N₄ ceramic ball), under dry friction conditions at room temperature, 600°C and 750°C. An optical microscope, interferometer, and scanning electron microscope were used to analyse the worn surfaces. Following this study, it was found that wear resistance of the coating AlCrN tribosystem depended on the temperature. The biggest wear was reported at room temperature. At 600°C the intensity of wear of the coating was 4-fold lower, and at 750°C wear was 6-fold lower that at room temperature. High temperature wear resistance of AlCrN coating involves creating protective oxide layer. Performed analysis of structure the surface layer, showed a much higher content of oxygen in wear scar than outside. At high temperatures, friction additional intensified oxidation process thus the amount of oxygen in surface layer increased with temperature. Oxide layer, Al₂O₃ and Cr₂O₃ probably, created at high temperature was a barrier to further oxidation of the coating and had very high wear resistance at high temperature.

• Periodical: Key Engineering Materials (Volume 674)
• Pages: 233-238
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.674.233
• Online since: January 2016
• Authors: Michał Michalak, Remigiusz Michalczewski*, Edyta Osuch-Słomka, Demófilo Maldonado-Cortés, Marian Szczerek
• Keywords: AlCrN Coating, Friction Coefficient, High Temperature, Oxides, Wear

References

[1] M. Szczerek, W. Piekoszewski, R. Michalczewski, The problems of application of PVD/CVD thin hard coatings for heavy-loaded machine components, Proc. of the ASME/STLE Int. Joint Tribology Conference, PTS A AND B, (2008) 35-37.

DOI: 10.1115/ijtc2007-44244

[2] R. Michalczewski, W. Piekoszewski, M. Szczerek, W. Tuszynski, The problems of resistance to scuffing of heavily loaded lubricated friction joints with WC/C-coated parts, Ind. Lubr. Tribol. 66 (2014) 434-442.

DOI: 10.1108/ilt-01-2012-0001

[3] W. Tuszynski, R. Michalczewski, M. Szczerek, M. Kalbarczyk, A new scuffing shock test method for the determination of the resistance to scuffing of coated gears, Archives of Civil and Mechanical Engineering. 12 (2012) 436-445.

DOI: 10.1016/j.acme.2012.08.003

[4] J. Bujak, R. Michalczewski, Characterization and properties of low-friction, multilayered Cr-doped diamond-like carbon coatings prepared by pulse biased filtered cathodic arc deposition, P I Mech. Eng. J-J Eng. 225 (2011) 875-882.

DOI: 10.1177/1350650111411380

[5] J. Szparaga, J. Ratajski, Polioptymalizacja powłok przeciwzużyciowych TiAlN i TiN nakładanych metodą PVD na narzędzia do obróbki drewna. PAK 57 (09) (2011) 2-6.

[6] T. Śleboda, J. Krawczyk, S. Zimowski, M. Kot, Wysokotemperaturowe własności tribologiczne stopów Fe-Al, Tribologia 3 (246) (2012) 209-215.

[7] L. Wang, J. Zhou, J. Duszczyk, L. Katgerman, Friction in aluminium extrusion - part 1: A review of friction testing techniques for aluminium extrusion, Tribology International 56 (2012) 89-98.

DOI: 10.1016/j.triboint.2012.01.012

[8] K. Kutschej, P. Mayrhofer, M. Kathrein, P. Polcik, C. Mitterer, A new low-friction concept for Ti1-xAlxN based coatings in high-temperature applications, Surface & Coatings Technology 188–189 (2004) 358-363.

DOI: 10.1016/j.surfcoat.2004.08.022

[9] J.L. Mo, M.H. Zhu, Tribological oxidation behaviour of PVD hard coatings, Tribology International 42 (2009)1758–1764.

DOI: 10.1016/j.triboint.2009.04.026

[10] J. Bujak, Z. Słomka, Badania wysokotemperaturowej odporności na zużycie ścierne wielowarstwowych powłok AlCrTiN osadzanych metodą łukowo-próżniową. Tribologia 6 (246) (2012) 37-49.

[11] M. Michalak, R. Michalczewski, J. Wulczyński, Modyfikacja tribologicznego urządzenia badawczego T-21, przeznaczonego do badania materiałów w wysokiej temperaturze. Tribologia 6 (258) (2014) 79-95.

[12] J. Małecka, Odporność na utlenianie powłoki AlCrN naniesionej metodą PVD na stop Ti-46Al-7Nb-0, 7Cr-0, 1Si-0, 2Ni. Inżyniera Materiałowa, 1 (2013) 13-18.

[13] Y.C. Chim, X.Z. Dzing, X.T. Zeng, Zhang S. Oxidation resistance of TiN, CrN, TiAlN and CrAlN coatings deposited by lateral rotating cathode arc. Tribology International 517 (2009) 4845-4849.

DOI: 10.1016/j.tsf.2009.03.038
