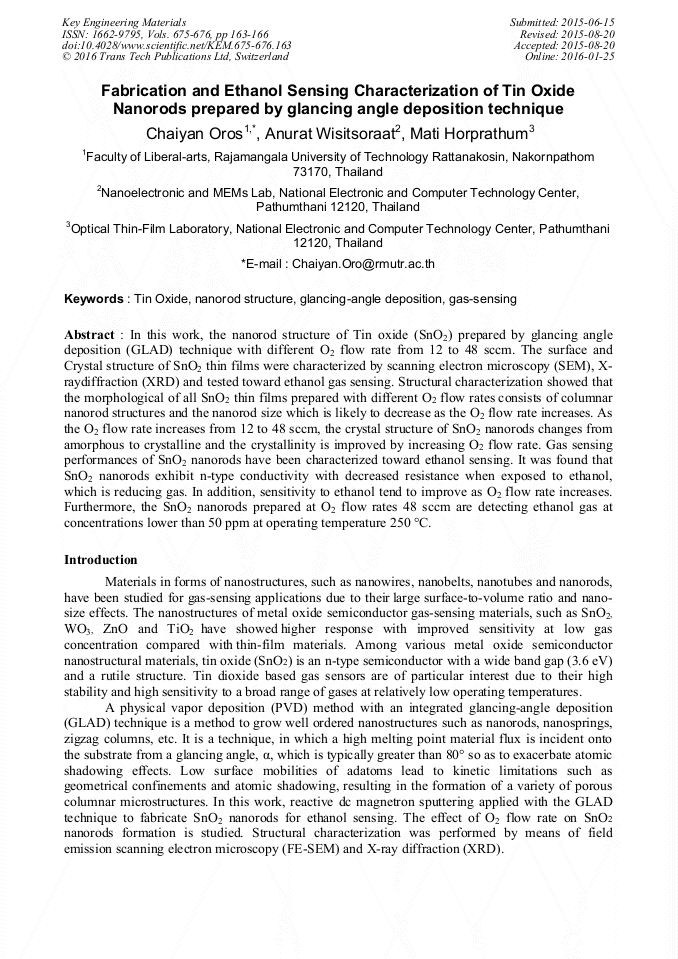

Fabrication and Ethanol Sensing Characterization of Tin Oxide Nanorods Prepared by Glancing Angle Deposition Technique

Abstract:

In this work, the nanorod structure of Tin oxide (SnO₂) prepared by glancing angle deposition (GLAD) technique with different O₂ flow rate from 12 to 48 sccm. The surface and Crystal structure of SnO₂ thin films were characterized by scanning electron microscopy (SEM), X-raydiffraction (XRD) and tested toward ethanol gas sensing. Structural characterization showed that the morphological of all SnO₂ thin films prepared with different O₂ flow rates consists of columnar nanorod structures and the nanorod size which are likely to decrease as the O₂ flow rate increases. As the O₂ flow rate increases from 12 to 48 sccm, the crystal structure of SnO₂ nanorods changes from amorphous to crystalline and the crystallinity is improved by the increase of the O₂ flow rate. Gas sensing performances of SnO₂ nanorods have been characterized toward ethanol sensing. It was found that SnO₂ nanorods exhibit n-type conductivity with decreased resistance when exposed to ethanol, which is reducing gas. In addition, sensitivity to ethanol tend to improve as O₂ flow rate increases. Furthermore, the SnO₂ nanorods prepared at O₂ flow rates 48 sccm are detecting ethanol gas at concentrations lower than 50 ppm at operating temperature 250 °C.

You might also be interested in these eBooks

Applied Physics and Material Applications II

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 675-676)

Pages:

163-166

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.675-676.163

Citation:

Cite this paper

Online since:

January 2016

Authors:

Chaiyan Oros*, Anurat Wisitsoraat, Mati Horprathum

Keywords:

Gas-Sensing, Glancing-Angle Deposition, Nanorod Structure, TiN Oxide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M.A. Gubbins, V. Casey, S.B. Newcomb, Nanostructural characterisation of SnO2 thin films prepared by reactiver. f. magnetron sputtering of tin, Thin Solid Films, 405 (2002), p.270–275.

DOI: 10.1016/s0040-6090(01)01728-x

Google Scholar

[2] B. Wang , L. F. Zhu , Y. H. Yang , N. S. Xu and G. W. Yang, Fabrication of a SnO2 Nanowire Gas Sensor and Sensor Performance for Hydrogen, J. Phys. Chem. C, 2008, 112 (17), p.6643–6647.

DOI: 10.1021/jp8003147

Google Scholar

[3] Deniz, D.; Frankel, D. J.; Lad, R. J.; Nanostructured tungsten and tungsten trioxide films prepared by glancing angle deposition, Thin Solid Films, 2010, 518, pp.4095-4099.

DOI: 10.1016/j.tsf.2009.10.153

Google Scholar
