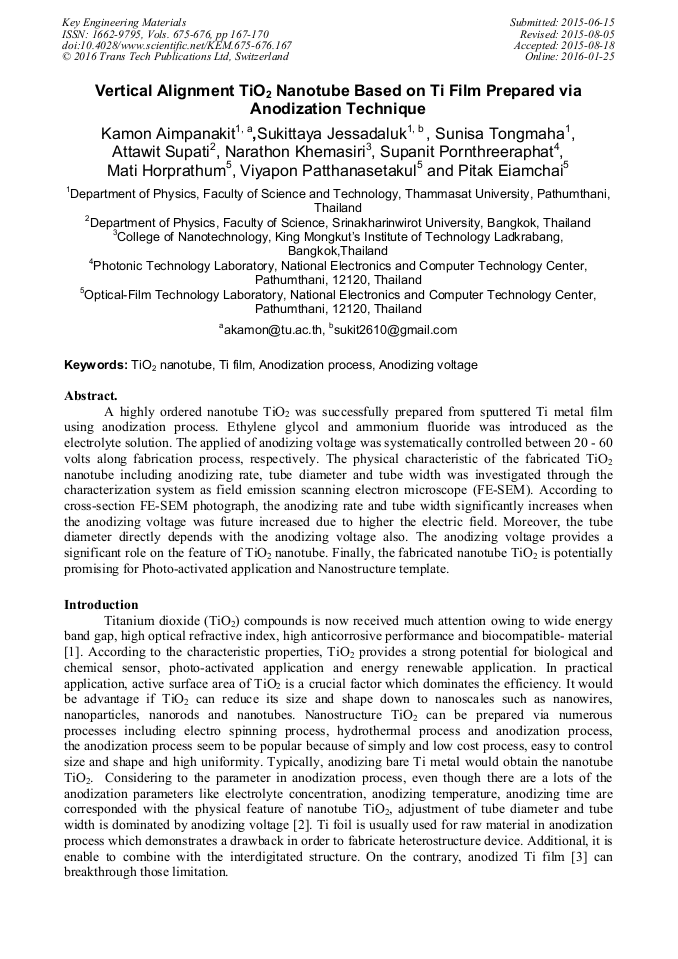

Vertical Alignment TiO₂ Nanotube Based on Ti Film Prepared via Anodization Technique

Abstract:

A highly ordered nanotube TiO₂ was successfully prepared from sputtered Ti metal film using anodization process. Ethylene glycol and ammonium fluoride was introduced as the electrolyte solution. The applied of anodizing voltage was systematically controlled between 20 - 60 volts along fabrication process, respectively. The physical characteristic of the fabricated TiO₂ nanotube including anodizing rate, tube diameter and tube width was investigated through the characterization system as field emission scanning electron microscope (FE-SEM). According to cross-section FE-SEM photograph, the anodizing rate and tube width significantly increases when the anodizing voltage was future increased due to higher the electric field. Moreover, the tube diameter directly depends with the anodizing voltage also. The anodizing voltage provides a significant role on the feature of TiO₂ nanotube. Finally, the fabricated nanotube TiO₂ is potentially promising for Photo-activated application and Nanostructure template.

• Periodical: Key Engineering Materials (Volumes 675-676)
• Pages: 167-170
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.675-676.167
• Online since: January 2016
• Authors: Kamon Aiempanakit*, Sukittaya Jessadaluk, Sunisa Tongmaha, Attawit Supati, Narathon Khemasiri, Supanit Pornthreeraphat, Mati Horprathum, Viyapon Patthanasetakul, Pitak Eiamchai
• Keywords: Anodising Voltage, Anodization Process, Ti Film, TiO₂ Nanotube

References

[1] Chawla, V., Jayaganthan, R., Chawla, a. K., & Chandra, R. (2009). Microstructural characterizations of magnetron sputtered Ti films on glass substrate. Journal of Materials Processing Technology, 209(7), 3444–3451.

DOI: 10.1016/j.jmatprotec.2008.08.004

[2] Kar, P. (2010). Effect of anodization voltage on the formation of phase pure anatase nanotubes with doped carbon. Inorganic Materials, 46(4), 377–382. http: /doi. org/10. 1134/S0020168510040102.

DOI: 10.1134/s0020168510040102

[3] Kuzmych, O., Nonomura, K., Johansson, E. M. J., Nyberg, T., Hagfeldt, A., & Skompska, M. (2012).

[4] Roy, P., Berger, S., & Schmuki, P. (2011). TiO2 nanotubes: Synthesis and applications. Angewandte Chemie - International Edition, 50(13), 2904–2939.

DOI: 10.1002/anie.201001374

[5] Tao, J., Zhao, J., Tang, C., Kang, Y., & Li, Y. (2008). Mechanism study of self-organized TiO2 nanotube arrays by anodization. New Journal of Chemistry, 32(12), 2164.

DOI: 10.1039/b808719a

[6] Wang, H., Li, H., Wang, J., & Wu, J. (2012). High aspect-ratio transparent highly ordered titanium dioxide nanotube arrays and their performance in dye sensitized solar cells. Materials.

DOI: 10.1016/j.matlet.2012.04.053

[7] Wang, J., Wang, H., Li, H., & Wu, J. (2013). Synthesis and characterization of TiO2 nanotube film on fluorine-doped tin oxide glass. Thin Solid Films, 544, 276–280.

DOI: 10.1016/j.tsf.2013.03.104
