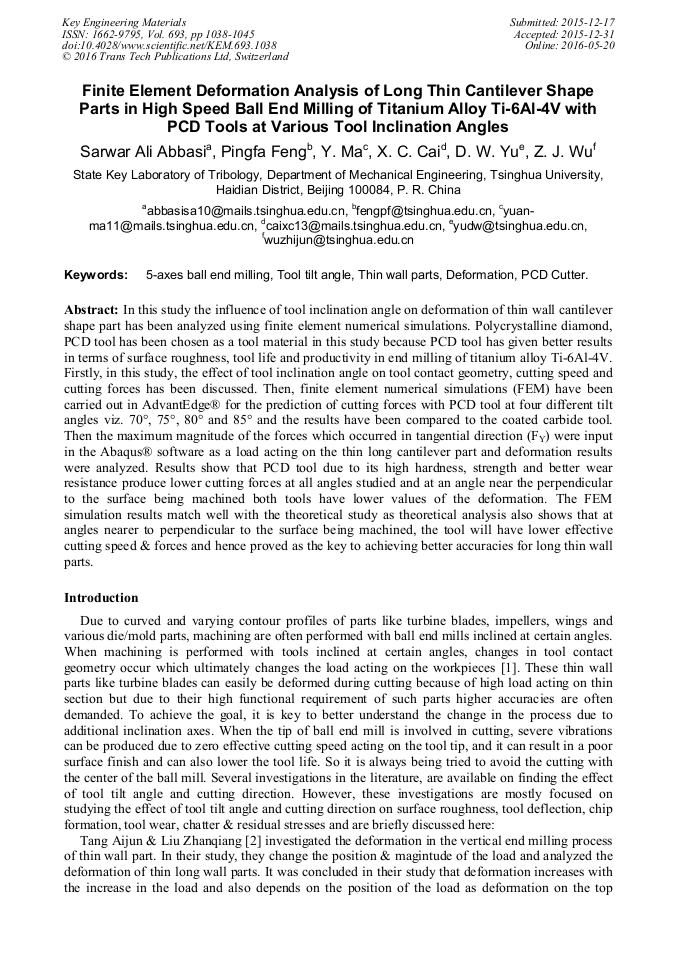

Finite Element Deformation Analysis of Long Thin Cantilever Shape Parts in High Speed Ball End Milling of Titanium Alloy Ti-6Al-4V with PCD Tools at Various Tool Inclination Angles

Abstract:

In this study the influence of tool inclination angle on deformation of thin wall cantilever shape part has been analyzed using finite element numerical simulations. Polycrystalline diamond, PCD tool has been chosen as a tool material in this study because PCD tool has given better results in terms of surface roughness, tool life and productivity in end milling of titanium alloy Ti-6Al-4V. Firstly, in this study, the effect of tool inclination angle on tool contact geometry, cutting speed and cutting forces has been discussed. Then, finite element numerical simulations (FEM) have been carried out in AdvantEdge® for the prediction of cutting forces with PCD tool at four different tilt angles viz. 70°, 75°, 80° and 85° and the results have been compared to the coated carbide tool. Then the maximum magnitude of the forces which occurred in tangential direction (F_Y) were input in the Abaqus® software as a load acting on the thin long cantilever part and deformation results were analyzed. Results show that PCD tool due to its high hardness, strength and better wear resistance produce lower cutting forces at all angles studied and at an angle near the perpendicular to the surface being machined both tools have lower values of the deformation. The FEM simulation results match well with the theoretical study as theoretical analysis also shows that at angles nearer to perpendicular to the surface being machined, the tool will have lower effective cutting speed & forces and hence proved as the key to achieving better accuracies for long thin wall parts.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 1038-1045
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.1038
• Online since: May 2016
• Authors: Sarwar Ali Abbasi*, Ping Fa Feng, Yuan Ma, X.C. Cai, Ding Wen Yu, Zhi Jun Wu
• Keywords: 5-Axes Ball End Milling, Deformation, PCD Cutter, Thin Wall Parts, Tool Tilt Angle

References

[1] T. Altan, B. W. Lilly, J.P. Kruth, W. Konig, H.K. Tonshoff, C.A. Van Luttervelt, A.B. Khairy, Advance techniques for dies and mold manufacturing, Annals of CIRP. 42(2), (1993), 707-716.

DOI: 10.1016/s0007-8506(07)62533-5

[2] Tang Aijun, Liu Zhanqiang, Deformations of thin wall plate due to static end milling force, Journal of Materials Processing Technololgy. 206, (2008), 345-351.

DOI: 10.1016/j.jmatprotec.2007.12.089

[3] Weifang Chen, Jianbin Xue, Dunbin Tang, Hua Chen, Shaopeng Qu, Deformation prediction and error compensation in multilayer milling processes for thin wall parts, International Journal of Machine Tool & Manufacture. 49, (2009), 859-864.

DOI: 10.1016/j.ijmachtools.2009.05.006

[4] Kuljanic, E., Fioretti, M., and Beltrame L., Miani, F., Milling titanium compressor blades with PCD cutters. CIRP Annals Manufacturing. Technology. 47 (1), (1998), 61-64.

DOI: 10.1016/s0007-8506(07)62785-1

[5] A. Antoniadis, C. Savakis, N. Bilalis, and A. Balouktsis, Prediction of surface topomorphy and roughness in ball end milling, International Journal of Advanced Manufacturing Technology. 21, (2003), 965-971.

DOI: 10.1007/s00170-002-1418-8

[6] D.K. Aspinwall, R.C. Dewes, E. -G. Ng, C. Sage, S.L. Soo, The influence of cutter orientation and workpiece angle on machinability when high-speed milling inconel 718 under finishing condition, International Journal of Machine Tool & Manufacture. 47, (2007).

DOI: 10.1016/j.ijmachtools.2007.04.007

[7] Tae Soon Lim, Chea-Moon Lee, Seok-Won Kim, Deug-Woo Lee, Evaluation of cutter orientations in 5-axes high speed milling of turbine blade, Journal of Materials Processing Technology. 130-131, (2002), 401-406.

DOI: 10.1016/s0924-0136(02)00745-8

[8] C.N. Chu, S.Y. Kim, J.M. Lee, Feed rate optimization of ball end milling considering local shape features, Annals of CIRP. 46 (1), (1997), 433-436.

DOI: 10.1016/s0007-8506(07)60859-2

[9] C.M. Lee, S.W. Kim, Y.H. Lee, D.W. Lee, The optimal cutter orientation in ball end milling of cantilever- shaped thin plate, Journal of Materials Processing Technology, 153-154, (2004), 900-906.

DOI: 10.1016/j.jmatprotec.2004.04.106

[10] Nabhani, F., Machining of aerospace titanium alloys, Robotics Computer Integrated Manufacturing. 17(1-2), (2001), 99-106.

DOI: 10.1016/s0736-5845(00)00042-9

[11] Nural Amin A.K.M., Ismail Ahmad F, Khairusshima M.K. Nor, Effectiveness of un-coated WC-Co and PCD inserts in end milling of titanium alloy–Ti6Al4V, Journal of Materials Processing Technology. 192-193, (2007), 147-158.

DOI: 10.1016/j.jmatprotec.2007.04.095

[12] M. Boujelbene, A. Moisan, W. Bouzid, S. Torbaty, Variation cutting speed on 5-axes milling, Journal of Achievement in Material & Manufacturing Engineering. 21(2), (2007), 7-14.

[13] Germain G., and Morel A., Identification of material constitutive laws representative of machining conditions for two titanium alloys: Ti6Al4V and Ti555-3, Journal of Engineering Materials and Technology. 135/ 031002-1 to 11, (2013).

DOI: 10.1115/1.4023674
