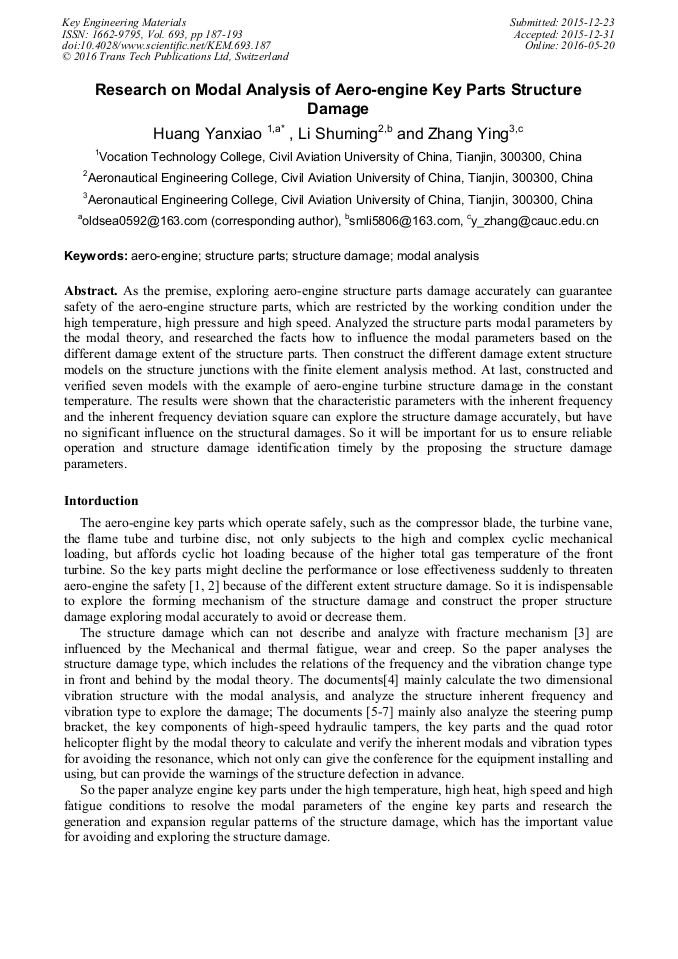

Research on Modal Analysis of Aero-Engine Key Parts Structure Damage

Abstract:

As the premise, exploring aero-engine structure parts damage accurately can guarantee safety of the aero-engine structure parts, which are restricted by the working condition under the high temperature, high pressure and high speed. Analyzed the structure parts modal parameters by the modal theory, and researched the facts how to influence the modal parameters based on the different damage extent of the structure parts. Then construct the different damage extent structure models on the structure junctions with the finite element analysis method. At last, constructed and verified seven models with the example of aero-engine turbine structure damage in the constant temperature. The results were shown that the characteristic parameters with the inherent frequency and the inherent frequency deviation square can explore the structure damage accurately, but have no significant influence on the structural damages. So it will be important for us to ensure reliable operation and structure damage identification timely by the proposing the structure damage parameters.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 187-193
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.187
• Online since: May 2016
• Authors: Yanxiao Huang*, Shu Ming Li, Ying Zhang
• Keywords: Aero-Engine, Modal Analysis, Structure Damage, Structure Parts

References

[1] Yang Zhou, Du Zunling, Zhang Yimin. Reliability-Based Sensitivity Design of an Aero-engine Turbine Disk[J]. Journal of Northeastern U niversity ( Natural Science), 2011, 32(8) : P1161 - 1164.

[2] Li Zhao, Zou Wu. Temperature and Stress Analysis of Engine Turbine Disc[J]. Mechanical Engineering & Automation, 2014, (3): P122-124.

[3] Yang Hui, Zhang Jin, Nie jingxu, Hou Guicang. Nonlinear Damage Accumulation Model for Turbine Disc Slots[J]. Journal of Aerospace Power, 1998, 13(4): P385-389.

[4] Chen N Z, Guedes S C. Spectral stochastic finite element analysis for laminated composite plates[J]. Computer Methods in Applied Mechanics and Engineering, 2008, 197(50) : 4830- 4839.

DOI: 10.1016/j.cma.2008.07.003

[5] Zheng Weigang, Liu Zhijun, Yang Ning. Analysis on Modal and Static of Steering Pump Bracket [J]. Machinery Design & Manufacture, 2014, (6): P182-184.

[6] Si Kuimao, Xiao Tingting, Li Peng, Xu Xin. Modal Analysis on Key Components of High-speed Hydraulic Tampers[J]. Chinese Journal of Construction Machinery, 2014, 12(4) : P356-359.

[7] Tian Weijun, Li Yu, He Koufang, Liu Heng, Yin Yui. Structure Design and Modal Analysis of the Quad rotor Helicopter Flight[J]. Manufacturing Automation, 2014, 36(2): P37-39.

[8] Brincker R, Zhang L, Andersen P. Modal identification of output-only systems using frequency domain decomposition[J]. Smart Master Structure, 2001, (10): 441-445.

DOI: 10.1088/0964-1726/10/3/303
