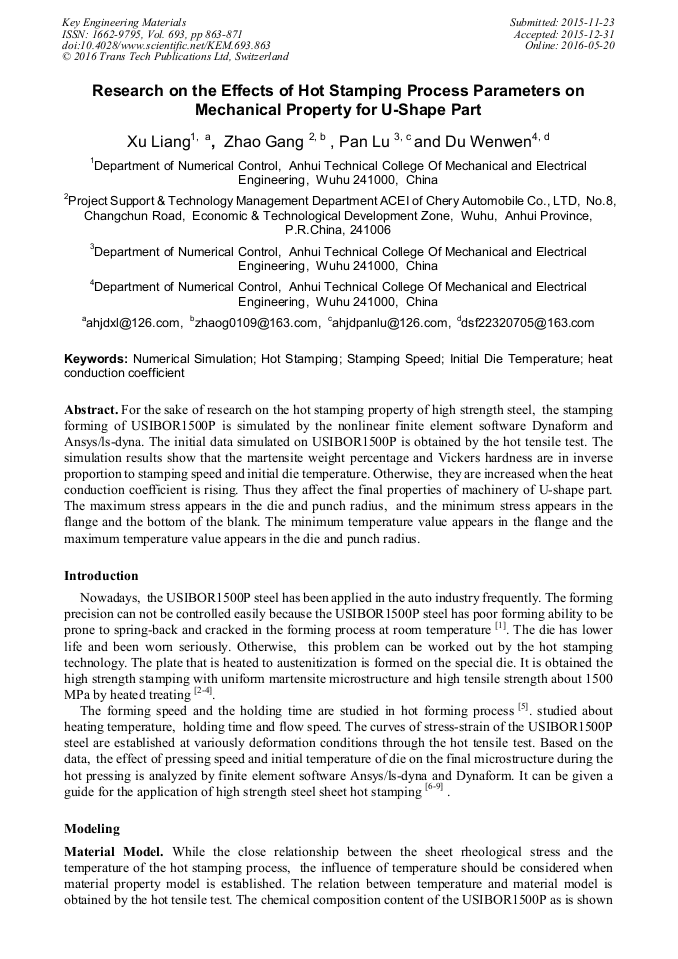

Research on the Effects of Hot Stamping Process Parameters on Mechanical Property for U-Shape Part

Abstract:

For the sake of research on the hot stamping property of high strength steel, the stamping forming of USIBOR1500P is simulated by the nonlinear finite element software Dynaform and Ansys/ls-dyna. The initial data simulated on USIBOR1500P is obtained by the hot tensile test. The simulation results show that the martensite weight percentage and Vickers hardness are in inverse proportion to stamping speed and initial die temperature. Otherwise, they are increased when the heat conduction coefficient is rising. Thus they affect the final properties of machinery of U-shape part. The maximum stress appears in the die and punch radius, and the minimum stress appears in the flange and the bottom of the blank. The minimum temperature value appears in the flange and the maximum temperature value appears in the die and punch radius.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 863-871
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.863
• Online since: May 2016
• Authors: Liang Xu*, Gang Zhao, Lu Pan, Wen Wen Du
• Keywords: Heat Conduction Coefficient, Hot Stamping, Initial Die Temperature, Numerical Simulation, Stamping Speed

References

[1] Peng C, Muammer K, Simulation of springback variation in forming of advanced high strength steels, J. Journal of Materials Processing Technology. 190(3) (2007) 189-198.

DOI: 10.1016/j.jmatprotec.2007.02.046

[2] Zhang Zhi-qiang, Hot stamping of high strength steel sheet and its numerical simulation, J. Hot Working Technology. 39(11) (2010) 103-105.

[3] Lin Jian-ping, Wang Li-ying, Tian Hao-bin, Research and progress of hot stamping of ultrahigh strength steel, J. Hot Working Technology. 37(21) (2008) 140-146.

[4] Liu Hong-sheng, Bao Jun, Xing Zhong-wen, Song Bao-yu, Yang Yu-ying, Numerical simulation on channel shape hot stamping of high strength sheet metal based on thermo-mechanical coupled method, J. Materials science and Technology. 18(4) (2010).

[5] Liu Wen, Wang Meng-han, Ran Yun-lan, Numerical simulation of cooling process in hot forming for ultrahigh strength steel, J. Hot Working Technology. 41(3) (2012) 78-80.

[6] Ma Ning, Hu Ping, Yan Kang-kang, Research and application of boron steel High strength of hot forming technology, J. Journal of Mechanical Engineering. 46(14) (2010) 68-72.

[7] Shan Zhong-de, Zhang Mi-lan, Jiang Chao, Basic study on die cooling system of hot stamping process, Proceedings of the international conference on advanced technology of design and manufacture, IET PRESS, Beijing, 2010, pp.23-25.

DOI: 10.1049/cp.2010.1248

[8] Jiang Hai-tao, Tang Di, Mi Zhen-li, The influence of the hot stamping steel group performance and boron partial poly of Process parameters, J. Material Engineering. 2 (2010) 69-73.

[9] Zhuang Bai-liang, Shan Zhong-de, Jiang Chao, Numerical simulation of hot stamping technology for automotive structural parts, Proceedings of the international conference on advanced technology of design and manufacture, IET PRESS, Beijing, 2010, pp.176-180.

DOI: 10.1049/cp.2010.1286

[10] AkerstromP, WikmanB，Oldenburg M, Material Parameter estimation for boron steel from simulataneous cooling and compression experiments, J. Modeling and Simulation in Materials Science and Engineering. 13(2005) 1291-1308.

DOI: 10.1088/0965-0393/13/8/007

[11] Akerstrom P, Oldenburg M, Austenite decomposition during press hardening of aboron steel-computer simulation and test, J. Journal of Materials Processing Technology. 174(18)(2006) 399-406.

DOI: 10.1016/j.jmatprotec.2006.02.013

[12] Ma Peng-fei, Zhang Song-sheng, Mechanical Engineering Material and The Processing Technology, Chemical Industry Press, Beijing, 2008, p.65.
