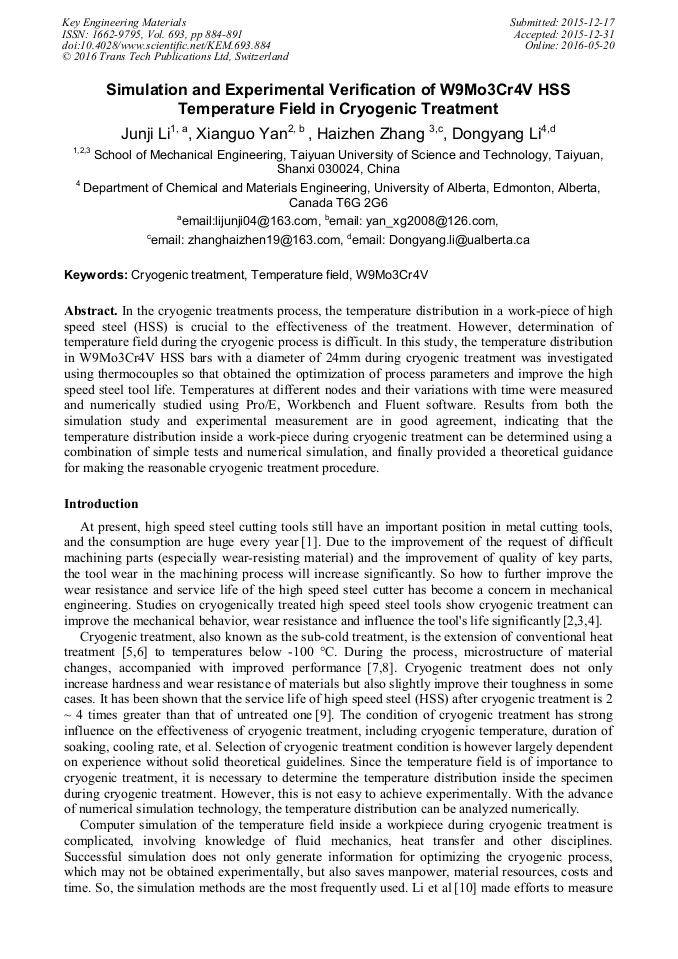

Simulation and Experimental Verification of W9Mo3Cr4V HSS Temperature Field in Cryogenic Treatment

Abstract:

In the cryogenic treatments process, the temperature distribution in a work-piece of high speed steel (HSS) is crucial to the effectiveness of the treatment. However, determination of temperature field during the cryogenic process is difficult. In this study, the temperature distribution in W9Mo3Cr4V HSS bars with a diameter of 24mm during cryogenic treatment was investigated using thermocouples so that obtained the optimization of process parameters and improve the high speed steel tool life. Temperatures at different nodes and their variations with time were measured and numerically studied using Pro/E, Workbench and Fluent software. Results from both the simulation study and experimental measurement are in good agreement, indicating that the temperature distribution inside a work-piece during cryogenic treatment can be determined using a combination of simple tests and numerical simulation, and finally provided a theoretical guidance for making the reasonable cryogenic treatment procedure.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 884-891
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.884
• Online since: May 2016
• Authors: Jun Ji Li*, Xian Guo Yan, Hai Zhen Zhang, Dong Yang Li
• Keywords: Cryogenic Treatment, Temperature Field, W9Mo3Cr4V

References

[1] Huang Minchun, Study on Phase Transformation and Wear-resistance of Cutting-tool by Cryogenic Process, Transactions of the Chinese Society for Agricultural Machinery. 34 (2009) 147-149, 146.

[2] Firouzdor V., Nejati E., Khomamizadeh F, Effect of deep cryogenic treatment on wear resistance and tool life of M2 HSS drill, Journal of Materials Processing Technology. 206 (2008) 467-472.

DOI: 10.1016/j.jmatprotec.2007.12.072

[3] Franjo Cajner, Vojteh Leskovsek, Darko Landek, et. al, Effect of deep-cryogenic treatment on high speed steel properties , Materials and Manufacturing Processes, 24 (2009) 743-746.

DOI: 10.1080/10426910902809743

[4] Flavio J. da Silva, Sinesio D. Franco, Alisson R. Machado, et. al, Performance of cryogenically treated HSS tools, Wear. 206(2006) 674-685.

DOI: 10.1016/j.wear.2006.01.017

[5] Yan Xianguo, Pang Siqin, Li Yongtang, Advances in high-speed steel cryogenic processing technology, New Technology and New Process. 3 (2008)14-15.

[6] Susheel Kalia, Cryogenic processing: A study of materials at low temperatures, Low Temp. Phys. 158 (2010)934-945.

DOI: 10.1007/s10909-009-0058-x

[7] M Preciado, P. M. Bravo, J M Alegre, Effect of low temperature tempering prior cryogenic treatment on carburized steels, Journal of Materials Processing Technology. 176 (2006) 41-44.

DOI: 10.1016/j.jmatprotec.2006.01.011

[8] Huang J Y, Zhu Y T, Liao X Z, et al, Microstructure of cryogenic treated 2 tool steel , Materials Science and Engineering. 339 (2003) 241-244.

DOI: 10.1016/s0921-5093(02)00165-x

[9] Yan Hongjuan, Xu Honghai, Wang Hongyan, Luo Xueke, Experimental research on deep cryogenic treatment of W4Mo3Cr4VSi twist drill , Journal of modern manufacturing engineering. 4 (2009) 72-73.

[10] Li Junwan, TANG Lei1ei, LI Shaohong, WU Xiaochun, FEM simulation and experimental verification of temperature field and phase transformation in deep cryogenic treatment , Trans. Nonferrous Met. Soc. China. 22 (2012) 2421-2430.

DOI: 10.1016/s1003-6326(11)61480-5

[11] Fu Jun, Wang Qiucheng, Hu Xiaodong, Numerical Simulation of Temperature Field in 7050 Aluminum Alloy Plates During Its Cryogenic Treatment, Low Temperature and Specialty Gases., 23(2005) 20-23, 38.

[12] Binhui Han, Computer simulation of M24 Taps quenching and cryogenic processing, Taiyuan University of Science and Technology, (2007).
