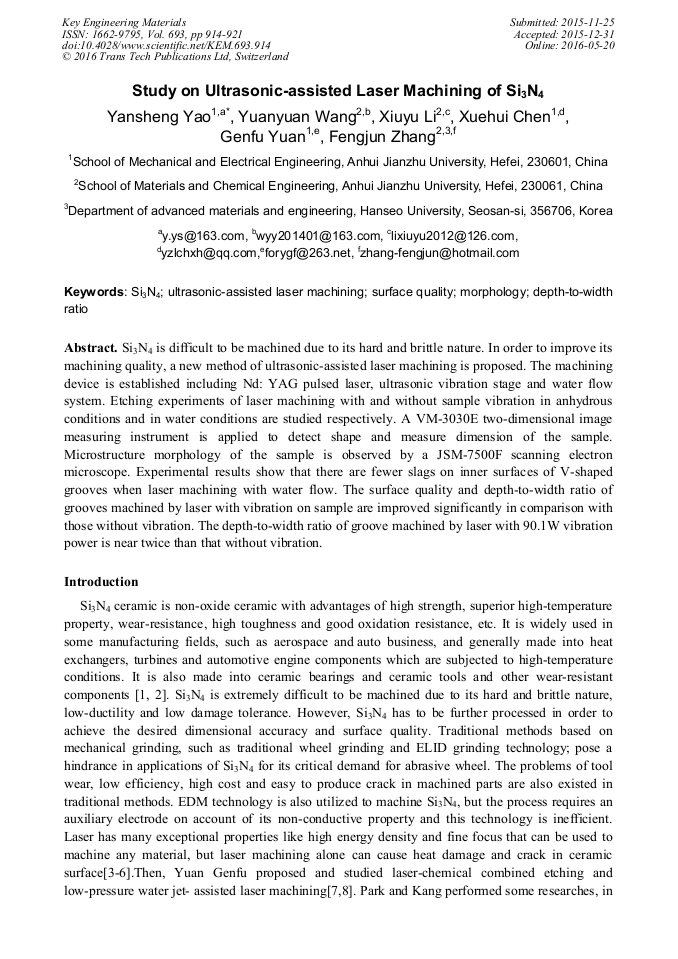

Study on Ultrasonic-Assisted Laser Machining of Si₃N₄

Abstract:

Si₃N₄ is difficult to be machined due to its hard and brittle nature. In order to improve its machining quality, a new method of ultrasonic-assisted laser machining is proposed. The machining device is established including Nd: YAG pulsed laser, ultrasonic vibration stage and water flow system. Etching experiments of laser machining with and without sample vibration in anhydrous conditions and in water conditions are studied respectively. A VM-3030E two-dimensional image measuring instrument is applied to detect shape and measure dimension of the sample. Microstructure morphology of the sample is observed by a JSM-7500F scanning electron microscope. Experimental results show that there are fewer slags on inner surfaces of V-shaped grooves when laser machining with water flow. The surface quality and depth-to-width ratio of grooves machined by laser with vibration on sample are improved significantly in comparison with those without vibration. The depth-to-width ratio of groove machined by laser with 90.1W vibration power is near twice than that without vibration.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 914-921
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.914
• Online since: May 2016
• Authors: Yan Sheng Yao*, Yuan Yuan Wang, Xiu Yu Li, Xue Hui Chen, Gen Fu Yuan, Feng Jun Zhang
• Keywords: Si₃N₄, Depth-to-Width Ratio, Morphology, Surface Quality, Ultrasonic-Assisted Laser Machining

References

[1] M.H. Bocanegra-Bernal, B. Matovic, Mechanical properties of silicon nitride-based ceramics and its use in structural applications at high temperatures, Materials Science and Engineering: A . 527 (6) (2010)1314-1338.

DOI: 10.1016/j.msea.2009.09.064

[2] H. Klemm, Silicon Nitride for High-Temperature Applications, Journal of the American Ceramic Society. 93 (6) (2010) 1501-1522.

DOI: 10.1111/j.1551-2916.2010.03839.x

[3] A.N. Samant, N. B. Dahotre, Differences in physical phenomena governing laser machining of structural ceramics, Ceramics International. 35 (5) (2009) 2093-(2097).

DOI: 10.1016/j.ceramint.2008.11.013

[4] W. D. Jin, Research on Ultra-precision Grinding of Hard and Brittle Material Si3N4 with Electrolytic In-process Dressing (ELID), ​​Tianjin University. (2005).

[5] A. K. Dubey, V. Yadava, Laser beam machining—a review, International Journal of Machine Tools and Manufacture. 48 (6) (2008) 609-628.

DOI: 10.1016/j.ijmachtools.2007.10.017

[6] O. VAN DER BIEST, Wire EDM machining of Si3N4, ZrO2 and Al2O3-based ceramics, International Journal of Electrical Machining. 10 (2005) 33-37.

DOI: 10.2526/ijem.10.33

[7] G. F. Yuan, Y. S. Yao, W. H. Chen, Experimental studies on quality of material surface applied laser-chemical combined etching, Chinese Journal of Laser. (1) (2010) 281-283.

[8] G. F. Yuan, Z. W. Feng, J. H. Wang, Experimental Study of the Low-Pressure Water Jet Assisted Laser Processing of Al2O3 Ceramic, Applied Laser. 33 (003) (2013)278-284.

DOI: 10.3788/al20133303.0278

[9] J. K. Park, J. W. Yoon, S. H. Cho, Vibration assisted femtosecond laser machining on metal, Optics and Lasers in Engineering. 50 (6) (2012) 833-837.

DOI: 10.1016/j.optlaseng.2012.01.017

[10] Kang B, Woo Kim G, Yang M, et al, A study on the effect of ultrasonic vibration in nanosecond laser machining, Optics and Lasers in Engineering. 50 (12) (2012) 1817-1822.

DOI: 10.1016/j.optlaseng.2012.06.013

[11] Y. S. Yao, G. F. Yuan, X. H. Chen, Study on Ultrasonic Assisted Laser under Liquid Processing Platform, Advanced Materials Research. 765 (2013) 3090-3093.

DOI: 10.4028/www.scientific.net/amr.765-767.3090

[12] W. Zheng, Experimental Investigation on Laser-Low Pressure Medium Jet Compound Machining, Anhui Institute of Architecture & industry. (2012).

[13] X. Y. Li, Ultrasonic Analysis of Molten Pool in Laser Melting Process In the Flow Field, Applied Laser. 34 (3) (2014) 204-210.

DOI: 10.3788/al20143403.0204

[14] J. P. Murray, G. Flamant, C. J. Roos, Silicon and solar-grade silicon production by solar dissociation of Si3N4, Solar Energy. 80 (10) (2006) 1349-1354.

DOI: 10.1016/j.solener.2005.11.009

[15] S. Y. Chen, G. Q. Jiang, J. J. Yu, Oxidation Mechanism Study of Silicon Nitride, Aerospace Materials & Technology. (1) (2010) 28-31.

[16] X. H. Chen, G. F. Yuan, W. Zheng, Experimental Investigation of Water Jet-Assisted Laser Etching on Al2O3 Ceramics, China Mechanical Engineering. 24 (12) (2013) 1568-1571.

[17] X. L. Tian, B. G. Zhang, F. Guo. Removal mechanism for special machining of engineeringCeramics based on energy density, Journal of Shenyang University of Technology. 35(2)(2013)149-154.

[18] Y. Huang, J. Q. Dai, X. L. Xu, Surface Character and Aqueous Colloidal Chemistry of Silicon Nitride Powder, Bulletin of the Chinese Ceramic Society. 19 (2) (2000)35-42.
