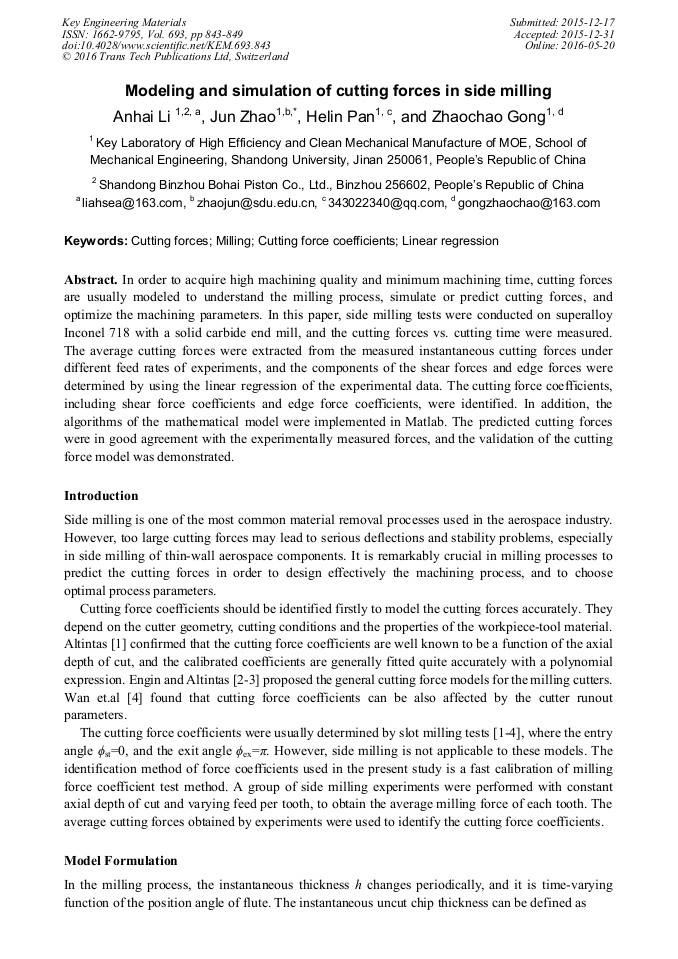

Modeling and Simulation of Cutting Forces in Side Milling

Abstract:

In order to acquire high machining quality and minimum machining time, cutting forces are usually modeled to understand the milling process, simulate or predict cutting forces, and optimize the machining parameters. In this paper, side milling tests were conducted on superalloy Inconel 718 with a solid carbide end mill, and the cutting forces vs. cutting time were measured. The average cutting forces were extracted from the measured instantaneous cutting forces under different feed rates of experiments, and the components of the shear forces and edge forces were determined by using the linear regression of the experimental data. The cutting force coefficients, including shear force coefficients and edge force coefficients, were identified. In addition, the algorithms of the mathematical model were implemented in Matlab. The predicted cutting forces were in good agreement with the experimentally measured forces, and the validation of the cutting force model was demonstrated.

You might also be interested in these eBooks

Advanced Materials and Manufacturing Technology II

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 693)

Pages:

843-849

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.693.843

Citation:

Cite this paper

Online since:

May 2016

Authors:

An Hai Li*, Jun Zhao, He Lin Pan, Zhao Chao Gong

Keywords:

Cutting Force, Cutting Force Coefficients, Linear Regression, Milling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Altintas., Manufacturing automation: metal cutting mechanics, machine tool vibrations, and CNC design, Cambridge university press, (2012).

DOI: 10.1017/cbo9780511843723

Google Scholar

[2] S. Engin, Y. Altintas., Mechanics and dynamics of general milling cutters.: Part I: helical end mills, Int. J. Mach. Tools Manuf., 41 (2001) 2195-2212.

DOI: 10.1016/s0890-6955(01)00045-1

Google Scholar

[3] S. Engin, Y. Altintas., Mechanics and dynamics of general milling cutters.: Part ii: inserted cutters, Int. J. Mach. Tools Manuf., 41 (2001) 2213-2231.

DOI: 10.1016/s0890-6955(01)00046-3

Google Scholar

[4] M. Wan, W.H. Zhang, J.W. Dang, Y. Yang, New procedures for calibration of instantaneous cutting force coefficients and cutter runout parameters in peripheral milling, Int. J. Mach. Tools Manuf., 49 (2009) 1144-1151.

DOI: 10.1016/j.ijmachtools.2009.08.005

Google Scholar
