For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Preface, Committees
Moisture Effects on Patch Bonded Composite Repairs
p.3
Comparative Investigation on the Failure Modes of Natural Kenaf/Epoxy Reinforced Composite Hexagonal Tubes
p.7
Research on DC Breakdown and Flashover Characteristics of PI with Different Temperature
p.11
Effect of Magnetic Field Strength on Carbide Precipitation Behavior in W6Mo5Cr4V3 High Speed Steel during Medium Temperature Tempering
p.15
The Influence of High-k Material/SiO2 Gate Stacks on Direct Gate Tunneling Current of Cylindrical Surrounding-Gate MOSFETs
p.19
Experimental Study on the Plant Dye Sensitized TiO2 Electrode
p.23
Effect of Glycidyl Methacrylate (GMA) Content on Grafting Yield and Mechanical Properties of GMA Grafted Poly(Lactic Acid) Prepared by Melt Mixing Method
p.27
The Konjac/Chitosan Microspheres Prepared by Emulsion Crosslinking Method
p.32

Moisture Effects on Patch Bonded Composite Repairs

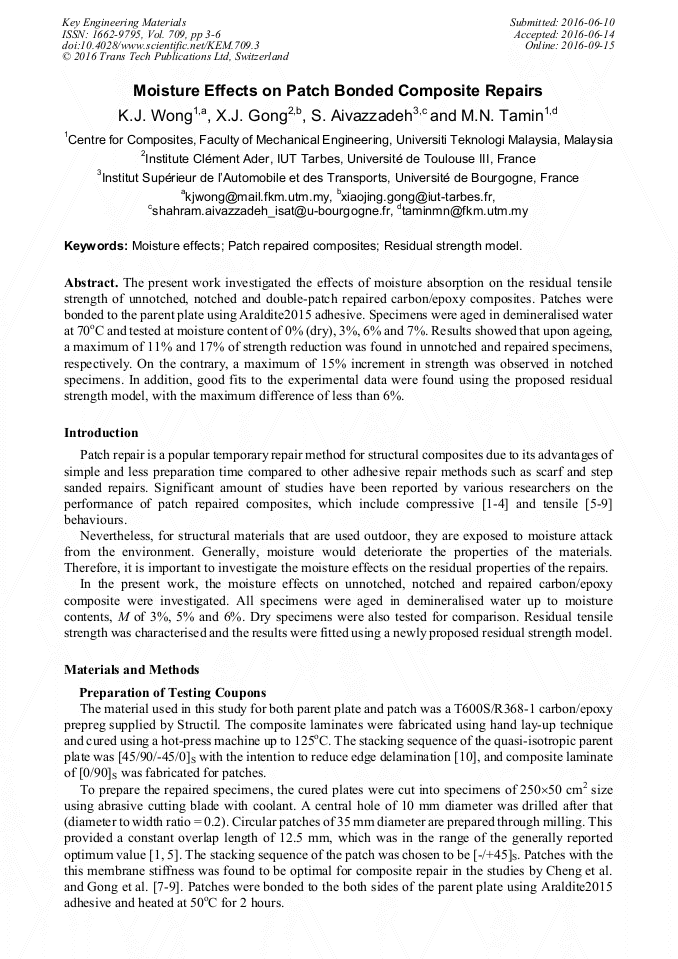

Article Preview

Abstract:

The present work investigated the effects of moisture absorption on the residual tensile strength of unnotched, notched and double-patch repaired carbon/epoxy composites. Patches were bonded to the parent plate using Araldite2015 adhesive. Specimens were aged in demineralised water at 70°C and tested at moisture content of 0% (dry), 3%, 6% and 7%. Results showed that upon ageing, a maximum of 11% and 17% of strength reduction was found in unnotched and repaired specimens, respectively. On the contrary, a maximum of 15% increment in strength was observed in notched specimens. In addition, good fits to the experimental data were found using the proposed residual strength model, with the maximum difference of less than 6%.

You might also be interested in these eBooks
Proceeding of the International Conference on Materials Engineering and Nanotechnology 2016 View Preview

Info:

Periodical:

Key Engineering Materials (Volume 709)

Pages:

3-6

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.709.3

Citation:

Cite this paper

Online since:

September 2016

Authors:

King Jye Wong*, Xiao Jing Gong, Shahram Aivazzadeh, Mohd Nasir Tamin

Keywords:

Moisture Effects, Patch Repaired Composites, Residual Strength Model

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] C. Soutis and F.Z. Hu: P I Mech Eng G-J Aer Vol. 211 (1997), p.263.

Google Scholar

[2] C. Soutis, D.M. Duan and P. Goutas: Compos. Struct. Vol. 45 (1999), p.289.

Google Scholar

[3] F.Z. Hu and C. Soutis: Compos. Sci. Technol. Vol. 60 (2000), p.1103.

Google Scholar

[4] R.D.S.G. Campilho, M.F.S.F. de Moura, D.A. Ramantani, J.J.L. Morais and J.J.M.S. Domingues: Compos. Sci. Technol. Vol. 70 (2010), p.371.

Google Scholar

[5] X. Liu and G. Wang: Compos. Struct. Vol. 81 (2007), p.331.

Google Scholar

[6] R.D.S.G. Campilho, M.F.S.F. de Moura, D.A. Ramantani, J.J.L. Morais and J.J.M.S. Domingues: Int. J. Adhes. Adhes. Vol. 29 (2009), p.678.

Google Scholar

[7] P. Cheng, X. -J. Gong, D. Hearn and S. Aivazzadeh: Compos. Struct. Vol. 93 (2011), p.582.

Google Scholar

[8] P. Cheng, X. -J. Gong, S. Aivazzadeh and X. Xiao: Polym. Test. Vol. 34 (2014), p.146.

Google Scholar

[9] X. -J. Gong, P. Cheng, S. Aivazzadeh and X. Xiao: Compos. Struct. Vol. 123 (2015), p.292.

Google Scholar

[10] K.J. Wong: PhD Thesis, Université de Bourgogne, France (2013).

Google Scholar

[11] C. Vlattas and C. Soutis, in: 7th ECCM, London, UK: Woodhead Publishing Ltd (1996).

Google Scholar

[12] P. Cheng: PhD Thesis, Université de Bourgogne, France (2010).

Google Scholar

[13] L.L. Peng: PhD Thesis, Université de Bourgogne, France (2013).

Google Scholar

[14] C.E. Browning, G.E. Husman and J.M. Whitney, in: Composite Materials: Testing and Design (4th Conference), ASTM STP 617 (1977).

Google Scholar

[15] K.J. Wong, H.A. Israr and M.N. Tamin, in: MIMEC, Bali, Indonesia (2015).

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
