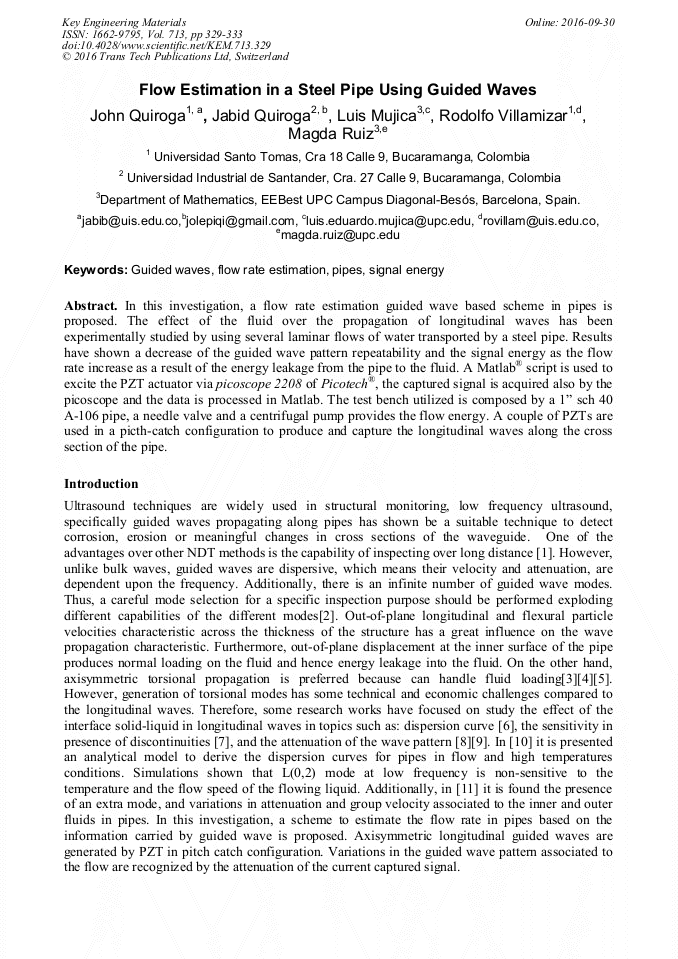

Flow Estimation in a Steel Pipe Using Guided Waves

Abstract:

In this investigation, a flow rate estimation guided wave based scheme in pipes is proposed. The effect of the fluid over the propagation of longitudinal waves has been experimentally studied by using several laminar flows of water transported by a steel pipe. Results have shown a decrease of the guided wave pattern repeatability and the signal energy as the flow rate increase as a result of the energy leakage from the pipe to the fluid. A Matlab^® script is used to excite the PZT actuator via picoscope 2208 of Picotech^®, the captured signal is acquired also by the picoscope and the data is processed in Matlab. The test bench utilized is composed by a 1” sch 40 A-106 pipe, a needle valve and a centrifugal pump provides the flow energy. A couple of PZTs are used in a picth-catch configuration to produce and capture the longitudinal waves along the cross section of the pipe

• Periodical: Key Engineering Materials (Volume 713)
• Pages: 329-333
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.713.329
• Online since: September 2016
• Authors: John Quiroga*, Jabid Quiroga, Luis Mujica, Rodolfo Villamizar, Magda Ruiz
• Keywords: Flow Rate Estimation, Guided Waves, Pipes, Signal Energy

References

[1] J. Li and J. L. Rose: Natural beam focusing of non-axisymmetric guided waves in large-diameter pipes, Ultrasonics, vol. 44, no. 1, (2006), p.35–45.

DOI: 10.1016/j.ultras.2005.07.002

[2] A. J. Croxford, P. D. Wilcox, B. W. Drinkwater, and G. Konstantinidis: Strategies for guided-wave structural health monitoring, Proc. R. Soc. A Math. Phys. Eng. Sci., vol. 463 (2007) p.2961–2981.

DOI: 10.1098/rspa.2007.0048

[3] J. L. Rose: Ultrasonic Waves in Solid Media. (2014).

[4] H. Kwun, S. Y. Kim, M. S. Choi, and S. M. Walker: Torsional guided-wave attenuation in coal-tar-enamel-coated, buried piping, NDT E Int., vol. 37, no. 8 (2004), p.663–665.

DOI: 10.1016/j.ndteint.2004.05.003

[5] J. L. Rose, Y. Cho, and M. J. Avioli: Next generation guided wave health monitoring for long range inspection of pipes, J. Loss Prev. Process Ind., vol. 22, no. 6, (2009), p.1010–1015.

DOI: 10.1016/j.jlp.2009.08.011

[6] H. Kwun, K. a. Bartels, and C. Dynes: Dispersion of longitudinal waves propagating in liquid-filled cylindrical shells" J. Acoust. Soc. Am., vol. 105, (1999), p.2601.

DOI: 10.1121/1.426876

[7] F. Li, Z. Liu, X. Sun, H. Li, and G. Meng: Propagation of guided waves in pressure vessel, Wave Motion, vol. 52, (2015), p.216–228.

DOI: 10.1016/j.wavemoti.2014.10.005

[8] P. B. Nagy, F. Simonetti, and G. Instanes: Corrosion and erosion monitoring in plates and pipes using constant group velocity Lamb wave inspection" Ultrasonics, vol. 54, no. 7, (2014) p.1832–1841.

DOI: 10.1016/j.ultras.2014.01.017

[9] W. -B. Na and H. -S. Yoon: Wave-attenuation estimation in fluid-filled steel pipes: The first longitudinal guided wave mode, Russ. J. Nondestruct. Test., vol. 43, no. 8, (2007), p.549–554.

DOI: 10.1134/s1061830907080074

[10] B. Zhang, H. Cui, J. Shen, and J. Trevelyan: Influence of flow speed on guided waves in a liquid filled pipe, IEEE Int. Ultrason. Symp. IUS, vol. 1, no. 3, (2013), p.182–185.

DOI: 10.1109/ultsym.2013.0047

[11] C. Aristégui, M. J. S. Lowe, and P. Cawley, Guided waves in fluid-filled pipes surrounded by different fluids, Ultrasonics, vol. 39, no. 5, (2001), p.367–375.

DOI: 10.1016/s0041-624x(01)00064-6

[12] B. N. Pavlakovic: Leaky Guided Ultrasonic Waves in NDT, PhD Dissertation, (1998).

[13] M. Lowe, Plate waves for the NDT of diffusion bonded titanium, PhD Dissertation (1992).
