Identification of Friction Coefficient in Forging Processes by Means T-Shape Tests in High Temperature

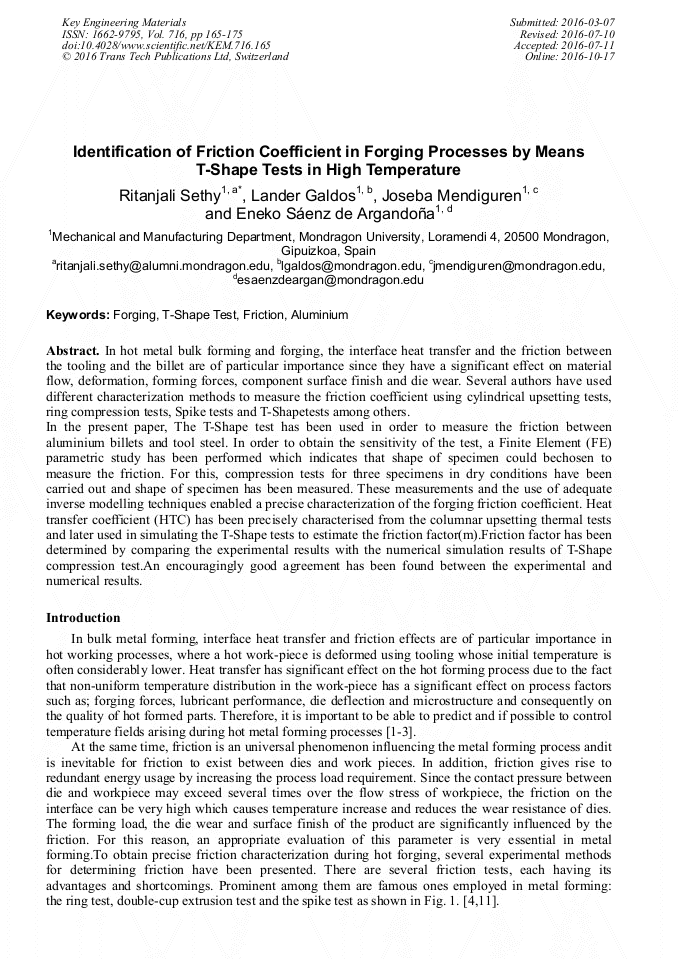

Abstract:

In hot metal bulk forming and forging, the interface heat transfer and the friction between the tooling and the billet are of particular importance since they have a significant effect on material flow, deformation, forming forces, component surface finish and die wear. Several authors have used different characterization methods to measure the friction coefficient using cylindrical upsetting tests, ring compression tests, Spike tests and T-Shape tests among others.In the present paper, The T-Shape test has been used in order to measure the friction between aluminium billets and tool steel. In order to obtain the sensitivity of the test, a Finite Element (FE) parametric study has been performed which indicates that shape of specimen could be chosen to measure the friction. For this, compression tests for three specimens in dry conditions have been carried out and shape of specimen has been measured. These measurements and the use of adequate inverse modelling techniques enabled a precise characterization of the forging friction coefficient. Heat transfer coefficient (HTC) has been precisely characterised from the columnar upsetting thermal tests and later used in simulating the T-Shape tests to estimate the friction factor (m). Friction factor has been determined by comparing the experimental results with the numerical simulation results of T-Shape compression test. An encouragingly good agreement has been found between the experimental and numerical results.

• Periodical: Key Engineering Materials (Volume 716)
• Pages: 165-175
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.716.165
• Online since: October 2016
• Authors: Ritanjali Sethy*, Lander Galdos, Joseba Mendiguren, Eneko Sáenz de Argandoña
• Keywords: Aluminium, Forging, Friction, T-Shape Test

References

[1] Q. Bai, J. Lin, L. Zhan, T. A. Dean, D. S. Balint, Z. Zhang, An efficient closed-form methodfor determining interfacial heat transfer coefficient in metal forming, Int. J. Mach. Tool. Manuf. 56 (2012) 102–110.

DOI: 10.1016/j.ijmachtools.2011.12.005

[2] W. R. D. Wilson, S. R. Schmid, J. Liu, Advanced simulations for hot forging: Heat transfer model for use with the finite element method, J. Mater. Process. Technol. 155 (2004) 1912–(1917).

DOI: 10.1016/j.jmatprotec.2004.04.399

[3] Z.M. Hu, J.W. Brooks, T.A. Dean, The interfacial heat transfer coefficient in hot die forging of titanium alloy, Proceedings of the Institution of Mechanical Engineers, Part C: Journal of Mechanical Engineering Science. 212 (1998) 485-496.

DOI: 10.1243/0954406981521385

[4] L. Deng, X.T. Li, J.S. Jin, X.Y. Wang, J.J. Li, T-shape upsetting-extruding test for evaluating friction conditions during rib-web part forming, J. Mater. Process. Tech. 214 (2014) 2276–2283.

DOI: 10.1016/j.jmatprotec.2014.04.021

[5] A.T. Male, M.G. Cockcroft, A method for determination of the coefficient of friction of metals under conditions of bulk plastic deformation, J. Inst. Metals. 93 (1964) 38–45.

[6] R. Geiger, Metal flow in combined can extrusion, Berichte aus dem Institut für Umformtechnik, Universität Stuttgart, Verlag Giradet, Essen, Germany 36 (1976).

[7] A. Barcellona, L. Cannizzaro, A. Forcellese, F. Gabrilli, Validation of friction studies by double-cup extrusion tests in cold forging. CIRP Annals-Manufact. Technol. 45 (1996) 211–214.

DOI: 10.1016/s0007-8506(07)63049-2

[8] T. Schrader, M. Shirgaokar, T. Altan, A critical evaluation of the double cupextrusion test for selection of cold forging lubricants, J. Mater. Process Tech. 189 (2007) 36–44.

DOI: 10.1016/j.jmatprotec.2006.11.229

[9] D.M. Petty, Friction models for finite element modelling, J. Mater. Process. Tech. 45 (1994) 7–12.

[10] W.L. Xu, K.P. Rao, Analysis of the deformation characteristics of spike forging process through FE simulations and experiments, J. Mater. Process Tech. 70 (1997) 122–128.

DOI: 10.1016/s0924-0136(97)00048-4

[11] Q. Zhang, E. Felder, S. Bruschi, Evaluation of friction condition in cold forging by using T- shape compression test, J. Mater. Process. Technol. 209 (2009) 5720–5729.

DOI: 10.1016/j.jmatprotec.2009.06.002

[12] Q. Zhang, M. Arentoft, S. Bruschi, L. Dubar, E. Felder, Measurement of friction in a cold extrusion operation: study by numerical simulation of four friction tests, Inter. J. Mater. Form. 1 (2008) 1270–1274.

DOI: 10.1007/s12289-008-0133-x

[13] F. Fereshteh-Saniee, H. Badnava, S.M. Pezeshki-Najafabadi, Application of T-shape friction test for AZ31 and AZ80 magnesium alloys at elevated temperatures, Materials and Design. 32 (2011) 3221–3230.

DOI: 10.1016/j.matdes.2011.02.042

[14] J. P. Wang, A new evaluation to friction analysis for the ring test, Int. J. Mach Tool. Manuf. 41 (2001) 311–24.

[15] G. Y. Tzou, H. H. Hsu, Y. H. Hsiao, Investigation of a slab method analysis and FEM simulation on rotating compression forming of ring, J. Mater. Process. Tech. 3 (2000).

DOI: 10.1016/j.jmatprotec.2006.04.073
