Crack Formation and Propagation Mechanism in the Punching Process of High Tensile Strength Steel Sheet

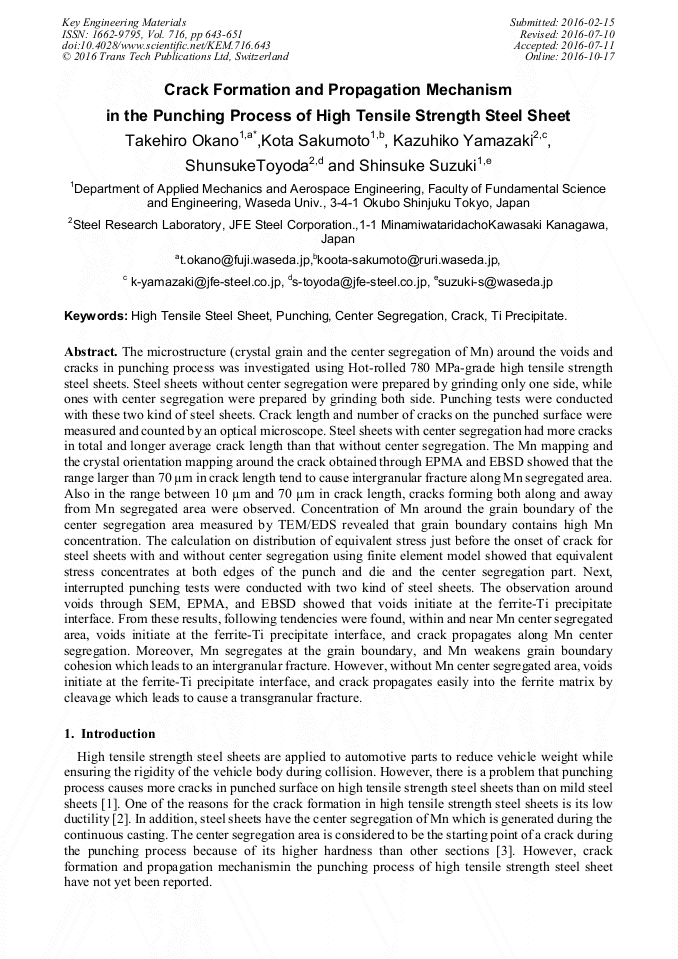

Abstract:

The microstructure (crystal grain and the center segregation of Mn) around the voids and cracks in punching process was investigated using Hot-rolled 780 MPa-grade high tensile strength steel sheets. Steel sheets without center segregation were prepared by grinding only one side, while ones with center segregation were prepared by grinding both side. Punching tests were conducted with these two kind of steel sheets. Crack length and number of cracks on the punched surface were measured and counted by an optical microscope. Steel sheets with center segregation had more cracks in total and longer average crack length than that without center segregation. The Mn mapping and the crystal orientation mapping around the crack obtained through EPMA and EBSD showed that the range larger than 70 µm in crack length tend to cause intergranular fracture along Mn segregated area. Also in the range between 10 µm and 70 µm in crack length, cracks forming both along and away from Mn segregated area were observed. Concentration of Mn around the grain boundary of the center segregation area measured by TEM/EDS revealed that grain boundary contains high Mn concentration. The calculation on distribution of equivalent stress just before the onset of crack for steel sheets with and without center segregation using finite element model showed that equivalent stress concentrates at both edges of the punch and die and the center segregation part. Next, interrupted punching tests were conducted with two kind of steel sheets. The observation around voids through SEM, EPMA, and EBSD showed that voids initiate at the ferrite-Ti precipitate interface. From these results, following tendencies were found, within and near Mn center segregated area, voids initiate at the ferrite-Ti precipitate interface, and crack propagates along Mn center segregation. Moreover, Mn segregates at the grain boundary, and Mn weakens grain boundary cohesion which leads to an intergranular fracture. However, without Mn center segregated area, voids initiate at the ferrite-Ti precipitate interface, and crack propagates easily into the ferrite matrix by cleavage which leads to cause a transgranular fracture.

• Periodical: Key Engineering Materials (Volume 716)
• Pages: 643-651
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.716.643
• Online since: October 2016
• Authors: Takehiro Okano*, Kota Sakumoto, Kazuhiko Yamazaki, Shunsuke Toyoda, Shinsuke Suzuki
• Keywords: Center Segregation, Crack, High Tensile Steel Sheet, Punching, Ti Precipitate

References

[1] E. Iizuka, T. Hira, A. Yoshitake, Effect of forming conditions on stretch flange formability of high- strength hot-rolled steel sheets, Jpn. Soc. Technol. Plasticity 46 (2005) 81-85.

[2] K. Mori, Y. Abe, Y. Suzui, Improvement of stretch flangeability of ultra high strength steel sheet by smoothing of sheared edge, J. Mater. Process. 210 (2010) 653-659.

DOI: 10.1016/j.jmatprotec.2009.11.014

[3] K. Sakumoto, K. Yamazaki, T. Kobayashi, S. Suzuki, Improvement in punching properties of high tensile strength steel sheet by heat-treatments for reduction of center segregation, Key Eng. Mater. 622-623 (2014) 1075-1080.

DOI: 10.4028/www.scientific.net/kem.622-623.1075

[4] Japanese industrial standards committee, JIS Z 2241 Metallic materials-Tensile testing-Method of test at room temperature, Japanese standards association, Tokyo, (2008).

[5] M. Achouri, G. Germain, P. D. Santo, D. Saidane, Experimental characterization and numerical modeling of micromechanical damage under different stress states, Mater. Des. 50 (2013) 207-222.

DOI: 10.1016/j.matdes.2013.02.075

[6] C. Wang, J. Chen, C. Xia, F. Ren, J. Chen, A new method to calculate threshold values of ductile fracture criteria for advanced high-strength sheet blanking, J. Mater. Eng. Perform. 23 (2014) 1296-1306.

DOI: 10.1007/s11665-013-0861-z

[7] T. Matsuno, Y. Kuriyama, S. Yonezawa, H. Murakami, N. Ohtake, Mechanism analysis of roughness improvement on pierced surface using press working punch by finite element method, Jpn. Soc. Technol. Plasticity. 53 (2012) 836-841.

DOI: 10.9773/sosei.53.836

[8] K. Mori, Y. Abe, Y. Kidoma, P. Kadarno, Slight clearance punching of ultra-high strength steel sheets using punch having small round edge, Int. J. Mach. Tools Manuf. 65 (2013) 41-46.

DOI: 10.1016/j.ijmachtools.2012.09.005
