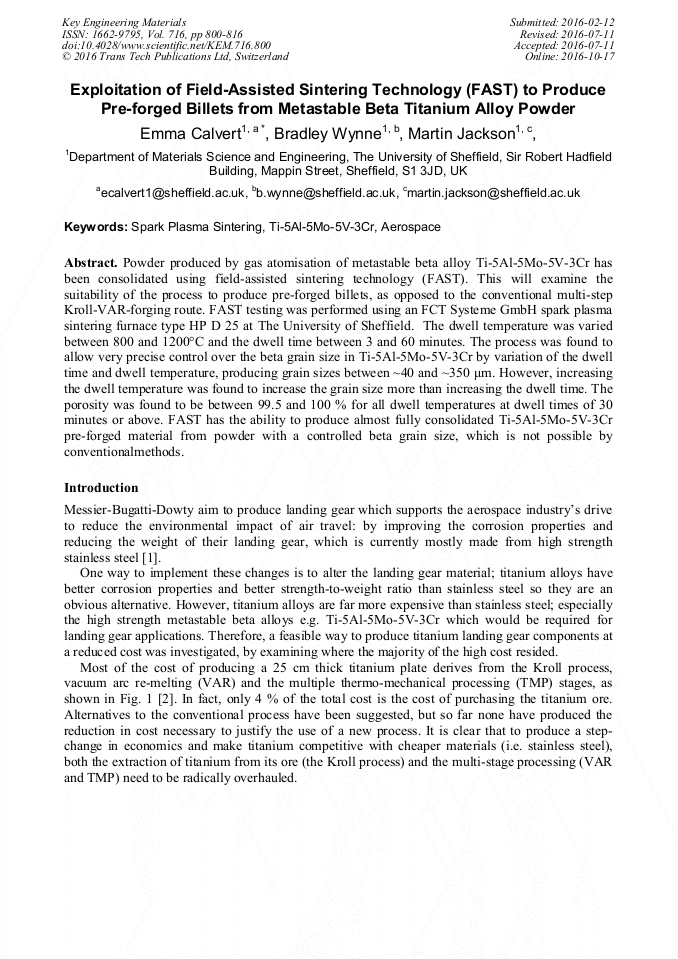

Exploitation of Field-Assisted Sintering Technology (FAST) to Produce Pre-Forged Billets from Metastable Beta Titanium Alloy Powder

Abstract:

Powder produced by gas atomisation of metastable beta alloy Ti-5Al-5Mo-5V-3Cr has been consolidated using field-assisted sintering technology (FAST) to examine the suitability of the process to produce pre-forged billets as opposed to the conventional multi-step Kroll-VAR-forging route. FAST testing was performed using an FCT Systeme GmbH spark plasma sintering furnace type HP D 25 at The University of Sheffield. The dwell temperature was varied between 800 and 1200°C and the dwell time between 3 and 60 minutes. The process was found to allow very precise control over the beta grain size in Ti-5Al-5Mo-5V-3Cr by variation of the dwell time and dwell temperature, producing grain sizes between ~40 and ~350 μm. However, it was found that the grain size was increased more by increasing the dwell temperature than increasing the dwell time. The porosity was found to be between 99.5 and 100 % for all dwell temperatures at dwell times of 30 minutes or above. FAST has the ability to produce almost fully consolidated Ti-5Al-5Mo-5V-3Cr pre-forged material from powder with a controlled beta grain size, which is not possible by other methods.

• Periodical: Key Engineering Materials (Volume 716)
• Pages: 800-816
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.716.800
• Online since: October 2016
• Authors: Emma Calvert*, Bradley P. Wynne, Martin Jackson
• Keywords: Aerospace, Spark Plasma Sintering, Ti-5Al-5Mo-5V-3Cr

References

[1] J.P. Serey, Trends in landing gear material, Aerosp. Eng. (2005) 46.

[2] A.D. Hartman, S.J. Gerdemann, J.S. Hansen, Producing lower-cost titanium for automotive applications, JOM 50 (1998) 16 – 19.

DOI: 10.1007/s11837-998-0408-1

[3] Information on http: /www. essentialchemicalindustry. org/metals/titanium. html.

[4] Information on http: /www. nottingham. ac. uk/~enzgzc/FFC_Process. htm.

[5] M. Suárez, AFernández, J. Menéndez et al., Challenges and Opportunities for Spark Plasma Sintering: A Key Technology for a New Generation of Materials, in: B. Ertuğ (Ed. ), Sintering Applications, InTech, Croatia, 2013, p.319 – 342.

[6] Information on http: /www. ifam. fraunhofer. de/en/Dresden/technologien/Formgebung/spark_plasma_sinteranlage. html.

[7] Information on http: /sps. fdc. co. jp/whats/whats4. html.

[8] Information on http: /www. thermaltechnology. com/spark-plasma-sintering. html.

[9] Information on http: /www. ceramicindustry. com/articles/92601-high-tech-sintering.

[10] N.S. Weston, F. Derguti, A. Tudball, M. Jackson, Spark plasma sintering of commercial and development titanium alloy powders, J. Mater. Sci. 50 (2015) 4860 – 4878.

DOI: 10.1007/s10853-015-9029-6

[11] S. Veeck, D. Lee, R. Boyer, R. Briggs, The Castability of Ti-5553 alloy, Adv. Mater. Processes (2004) 47 – 49.

[12] Information on http: /imagej. nih. gov/ij/download. html.

[13] Information on http: /shop. buehler. com/digital-imaging-image-analysis.

[14] C. Leyens, M. Peters (Eds. ), Titanium and Titanium Alloys: Fundamentals and Applications, Wiley-VCH, Weinheim, (2003).

[15] J.D. Cotton, R.D. Briggs, R.R. Boyer et al., State of the Art in Beta Titanium Alloys for Airframe Applications, JOM 67 (2015) 1281 – 1303.

DOI: 10.1007/s11837-015-1442-4

[16] N.G. Jones, R.J. Dashwood, D. Dye, M. Jackson, Thermomechanical processing of Ti-5Al-5Mo-5V-3Cr, Mater. Sci. Eng. A 490 (2008) 369 – 377.

DOI: 10.1016/j.msea.2008.01.055

[17] A. Dehghan-Manshadi, R.J. Dippenaar, Development of α-phase morphologies during low temperature isothermal heat treatment of a Ti-5Al-5Mo-5V-3Cr alloy, Mater. Sci. Eng. A 528 (2011) 1833 – 1839.

DOI: 10.1016/j.msea.2010.09.061

[18] J.C.M. Li (Ed. ), Microstructure and Properties of Materials Volume 2, World Scientific, Singapore, (2000).

[19] G. Luetjering, J.C. Williams, Titanium, second ed., Springer-Verlag Berlin Heidelberg, Berlin, (2007).
