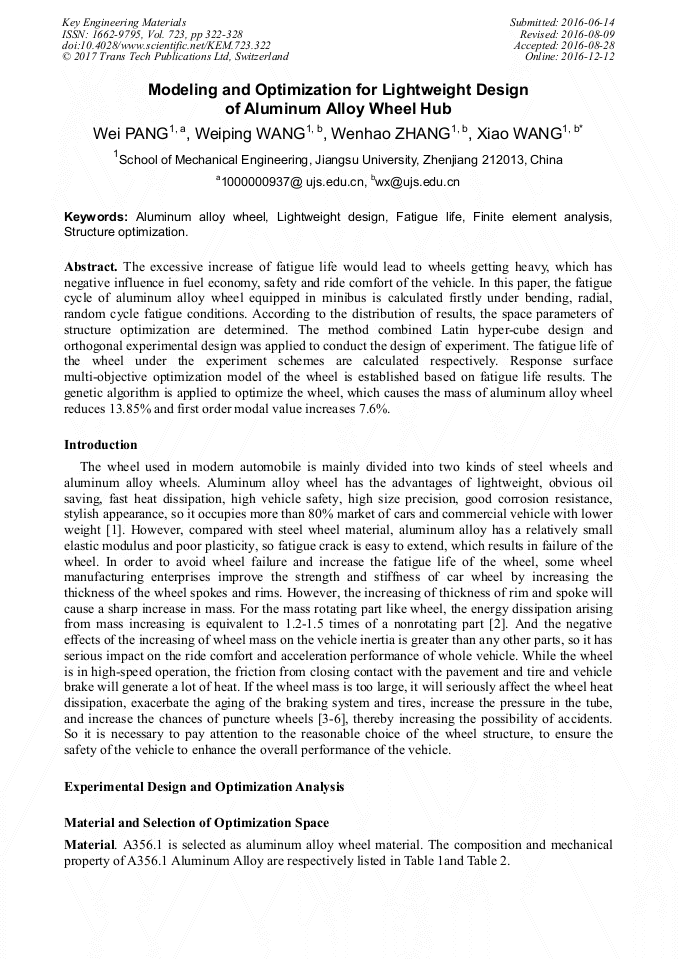

Modeling and Optimization for Lightweight Design of Aluminum Alloy Wheel Hub

Abstract:

The excessive increase of fatigue life would lead to wheels getting heavy, which has negative influence in fuel economy, safety and ride comfort of the vehicle. In this paper, the fatigue cycle of aluminum alloy wheel equipped in minibus is calculated firstly under bending, radial, random cycle fatigue conditions. According to the distribution of results, the space parameters of structure optimization are determined. The method combined Latin hyper-cube design and orthogonal experimental design was applied to conduct the design of experiment. The fatigue life of the wheel under the experiment schemes are calculated respectively. Response surface multi-objective optimization model of the wheel is established based on fatigue life results. The genetic algorithm is applied to optimize the wheel, which causes the mass of aluminum alloy wheel reduces 13.85% and first order modal value increases 7.6%.

• Periodical: Key Engineering Materials (Volume 723)
• Pages: 322-328
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.723.322
• Online since: December 2016
• Authors: Wei Pang, Wei Ping Wang, Wen Hao Zhang, Xiao Wang*
• Keywords: Aluminum Alloy Wheel, Fatigue Life, Finite Element Analysis, Lightweight Design, Structure Optimization

References

[1] Z. Yao, Structural Design and Impact Experiment of the Automobile Wheel (MS., Northeastern University, China, 2008).

[2] H. Z. Lu, J. Li, J. G. Wang, A. M. Guo, G. M. Lu, The development of steel wheels for the application of passenger cars, Society of Automotive Engineers of China, 2014CG-MT013, pp.862-866 (In Chinese).

[3] B. Zhai: The Structural Analysis and the Optimization of Aluminum Alloy Wheels (MS., Northeastern University, China, 2011).

[4] Y. S. Zhang, P. J. Miao, S. Z. Shang, Y. Wei, J. Zhao, Design of motorcycle aluminum alloy wheels, J. Gansu Sci. 26 (2014) 123-126 (In Chinese).

[5] W. C. Guo: Research on Nozzle and Fluid Field Temperature Field of Bloom Mold (MS., Yanshan University, China, 2013).

[6] J. Yin, P. Zhu, S. L. Zhang, Simulation and experimental study of steel wheel impact test considering strain rate effect, J. Shanghai Jiaotong U. 47(6) (2013) 967-971 (In Chinese).

[7] S. Z. Yan, Finite Element Analysis and Experimental Study on Aluminum Alloy Wheels Structure (Ph.D., Zhejiang University, China, 2008).

[8] S. R. Yan, L. J. He, Dynamic behavior analysis and structure optimization of magnesium alloy wheel of vehicle, J. Fuzhou U. (Natural Science Edition). 42 (2014) 584-590 (In Chinese).

[9] Y. H. Liang, M. S. Hsu, Weight reduction of aluminum disc wheels under fatigue constraints using a sequential neural network approximation method, Comput. Ind. 46(2) (2001) 167-179.

DOI: 10.1016/s0166-3615(01)00125-7
