Magnetic and Electrical Properties of Iron-Based Soft Magnetic Composites with Silicone Resin Insulation Coating

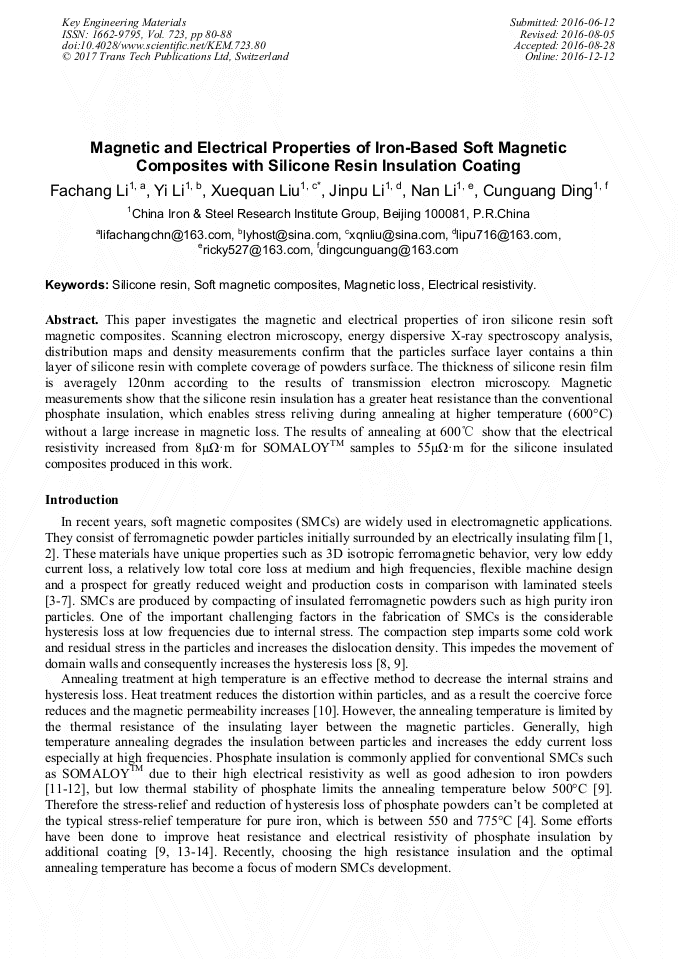

Article Preview

Abstract:

This paper investigates the magnetic and electrical properties of iron silicone resin soft magnetic composites. Scanning electron microscopy, energy dispersive X-ray spectroscopy analysis, distribution maps and density measurements confirm that the particles surface layer contains a thin layer of silicone resin with complete coverage of powders surface. The thickness of silicone resin film is averagely 120nm according to the results of transmission electron microscopy. Magnetic measurements show that the silicone resin insulation has a greater heat resistance than the conventional phosphate insulation, which enables stress reliving during annealing at higher temperature (600°C) without a large increase in magnetic loss. The results of annealing at 600°C show that the electrical resistivity increased from 8μΩ·m for SOMALOY^TM samples to 55μΩ·m for the silicone insulated composites produced in this work.

You might also be interested in these eBooks

Proceedings of International Conference on Material Science and Engineering 2016

Info:

Periodical:

Key Engineering Materials (Volume 723)

Pages:

80-88

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.723.80

Citation:

Cite this paper

Online since:

December 2016

Authors:

Fa Chang Li, Yi Li, Xue Quan Liu*, Jin Pu Li, Nan Li, Cun Guang Ding

Keywords:

Electrical Resistivity, Magnetic Loss, Silicone Resin, Soft Magnetic Composites

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] E. Bayramli, O. Golgelioglu, H. B. Ertan, Powder metal development for electrical motor applications, J. Mater. Process. Technol. 161(1-2) (2005) 83-88.

[2] S. Giménez, T. Lauwagie, G. Roebben, W. Heylen, O. Van der Biest, Effects of microstructural heterogeneity on the mechanical properties of pressed soft magnetic composite bodies, J. Alloys Compd. 419(1) (2006) 299-305.

DOI: 10.1016/j.jallcom.2005.09.053

[3] E. Enescu, P. Lungu, S. Marinescu, P. Dragoi, The effect of processing conditions on magnetic and electric properties of composite materials used in nonconventional magnetic circuits, Adv. Mater. 8(2) (2006) 745-748.

[4] I. Hemmati, H. R. Madaah Hosseini, A. Kianvash, The correlations between processing parameters and magnetic properties of an iron–resin soft magnetic composite, J. Magn. Magn. Mater. 305(1) (2006) 147-151.

DOI: 10.1016/j.jmmm.2005.12.004

[5] A. Ozols, M. Pagnola, D. Iñaki García, H. Sirkin, Electroless coating of Permalloy powder and DC-resistivity of alloy composites, Surf. Coat. Technol. 200(24) (2006) 6821-6825.

DOI: 10.1016/j.surfcoat.2005.10.028

[6] H. Shokrollahi, K. Janghorban, Soft magnetic composite materials (SMCs), J. Mater. Process. Technol. 189(1-3) (2007) 1-12.

[7] I. P. Gilbert, V. Moorthy, S. J. Bull, J. T. Evans, A. G. Jack, Development of soft magnetic composites for low-loss applications J. Magn. Magn. Mater. 242-245 (2002) 232-234.

DOI: 10.1016/s0304-8853(01)01252-5

[8] A. H. Taghvaei, A. Ebrahimi, M. Ghaffari, K. Janghorban, Magnetic and structural studies of mechanically alloyed nanostructured Fe49Co49V2 powders, J. Magn. Magn. Mater. 322(24) (2010) 3932-3937.

DOI: 10.1016/j.jmmm.2010.08.025

[9] A. H. Taghvaei, H. Shokrollahi, K. Janghorban, Properties of iron-based soft magnetic composite with iron phosphate–silane insulation coating, J. Alloys Compd. 481(1-2) (2009) 681-686.

DOI: 10.1016/j.jallcom.2009.03.074

[10] H. Shokrollahi, K. Janghorban, Effect of warm compaction on the magnetic and electrical properties of Fe-based soft magnetic composites, J. Magn. Magn. Mater. 313(1) (2007) 182-186.

DOI: 10.1016/j.jmmm.2006.12.022

[11] Y. G. Guo, J. G. Zhu, Z. W. Lin, J. J. Zhong, 3D vector magnetic properties of soft magnetic composite material, J. Magn. Magn. Mater. 302(2) (2006) 511-516.

DOI: 10.1016/j.jmmm.2005.10.019

[12] J. J. Zhong, Y. G. Guo, J. G. Zhu, Z. W. Lin, Characteristics of soft magnetic composite material under rotating magnetic fluxes, J. Magn. Magn. Mater. 299(1) (2006) 29-34.

DOI: 10.1016/j.jmmm.2005.03.016

[13] A. H. Taghvaei, H. Shokrollahi, K. Janghorban, Magnetic and structural properties of iron phosphate–phenolic soft magnetic composites, J. Magn. Magn. Mater. 321(23) (2009) 3926-3932.

DOI: 10.1016/j.jmmm.2009.07.061

[14] A. H. Taghvaei, H. Shokrollahi, K. Janghorban, H. Abiri, Eddy current and total power loss separation in the iron–phosphate–polyepoxy soft magnetic composites, Mater. Des. 30(10) (2009) 3989-3995.

DOI: 10.1016/j.matdes.2009.05.026

[15] S. Wu, A. Z. Sun, F. Q. Zhai, J. Wang, Q. Zhang, W. H. Xu, Annealing effects on magnetic properties of silicone-coated iron-based soft magnetic composites, J. Magn. Magn. Mater. 324(5) (2012) 818-822.

DOI: 10.1016/j.jmmm.2011.09.026

[16] A. H. Taghvaei, H. Shokrollahi, M. Ghaffari, K. Janghorban, Influence of particle size and compaction pressure on the magnetic properties of iron-phenolic soft magnetic composites, J. Phys. Chem. Solids. 71(1) (2010) 7-11.

DOI: 10.1016/j.jpcs.2009.08.008

[17] G. Herzer, W. Fernengel, E. Adler, On the theory of nucleation fields in uniaxial ferromagnets, J. Magn. Magn. Mater. 58(1-2) (1986) 48-54.

DOI: 10.1016/0304-8853(86)90121-6

[18] H. Shokrollahi, K. Janghorban, Different annealing treatments for improvement of magnetic and electrical properties of soft magnetic composites, J. Magn. Magn. Mater. 317(1-2) (2007) 61-67.

DOI: 10.1016/j.jmmm.2007.04.011
