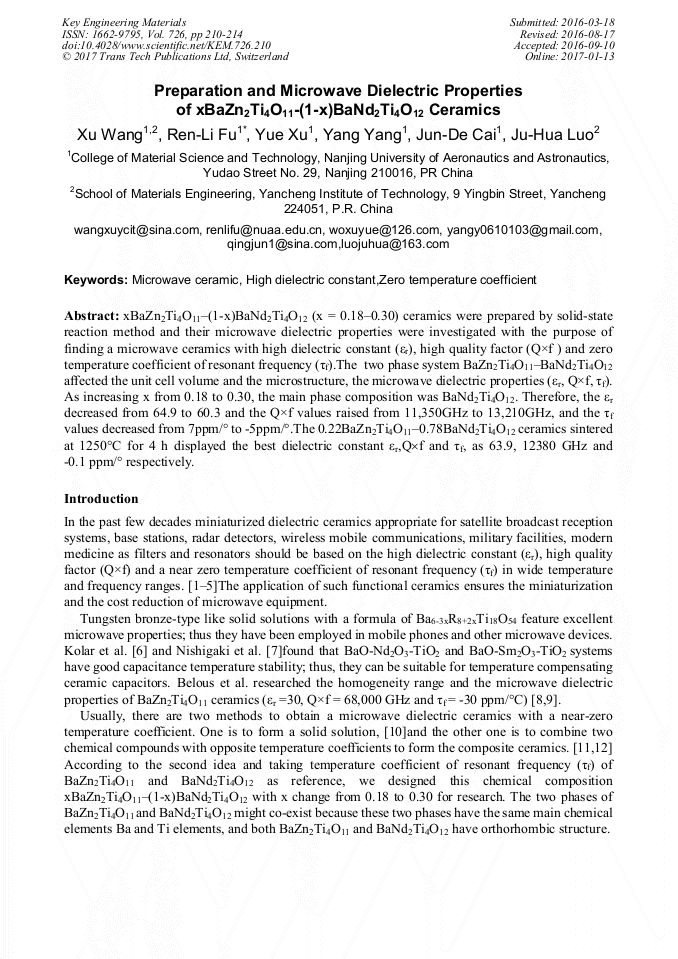

Preparation and Microwave Dielectric Properties of xBaZn₂Ti₄O₁₁-(1-x)BaNd₂Ti₄O₁₂ Ceramics

Abstract:

xBaZn₂Ti₄O₁₁–(1-x)BaNd₂Ti₄O₁₂ (x = 0.18–0.30) ceramics were prepared by solid-state reaction method and their microwave dielectric properties were investigated with the purpose of finding a microwave ceramics with high dielectric constant (ε_r), high quality factor (Q×f ) and zero temperature coefficient of resonant frequency (τ_f).The two phase system BaZn₂Ti₄O₁₁–BaNd₂Ti₄O₁₂ affected the unit cell volume and the microstructure, the microwave dielectric properties (ε_r, Q×f, τ_f). As increasing x from 0.18 to 0.30, the main phase composition was BaNd₂Ti₄O₁₂. Therefore, the ε_r decreased from 64.9 to 60.3 and the Q×f values raised from 11,350GHz to 13,210GHz, and the τ_f values decreased from 7ppm/° to -5ppm/°.The 0.22BaZn₂Ti₄O₁₁–0.78BaNd₂Ti₄O₁₂ ceramics sintered at 1250°C for 4 h displayed the best dielectric constant ε_r,Q×f and τ_f, as 63.9, 12380 GHz and-0.1 ppm/° respectively.

• Periodical: Key Engineering Materials (Volume 726)
• Pages: 210-214
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.726.210
• Online since: January 2017
• Authors: Xu Wang, Ren Li Fu*, Yue Xu, Yang Yang, Jun De Cai, Ju Hua Luo
• Keywords: High Dielectric Constant, Microwave Ceramic, Zero Temperature Coefficient

References

[1] M.T. Sebastian, Dielectric materials for wireless communication, ed., Elsevier, San Diego, (2008).

[2] E.A. Nenasheva, N.F. Kartenko, High dielectric constant microwave ceramics, J. Eur. Ceram. Soc. 21 (2001) 2697-2701.

DOI: 10.1016/s0955-2219(01)00348-x

[3] I.M. Reaney, Microwave dielectric ceramics for resonators and filters in mobile phone Networks, J. Eur. Ceram. Soc. 89 (2006) 2063-(2072).

[4] R. Freer, F. A Zough, Macrostructure engineering of microwave dielectric ceramics, J. Eur. Ceram. Soc. 28 (2008) 1433-1441.

[5] Z.J. Gong, Z.F. Wang, L.X. Wang, Z.X. Fu, W. Han, and Q.T. Zhang, Microwave dielectric properties of high-Q Mg(SnxTi1−x)O3 ceramics, Electron. Mater. Lett. 9 (2013) 331-335.

DOI: 10.1007/s13391-013-2214-3

[6] D. Kolar, Z. Stadler, S. Gaberscek and D. Suvorov, Ceramic and dielectric properties of selected compositions in the BaO-TiO2-Nd2O3 system, Ber. Dt. Keram. Ges. 55(1978), 346–347.

[7] S. Nishigaki, H. Kato, S. Yano and R. Kamimura, Microwave dielectric properties of (Ba, Sr)O–Sm2O3–TiO2 ceramics.J. Am. Ceram. Soc. Bull. 66(1987), 1405–1410.

[8] A.G. Belous, O.V. Ovchar, M.K. Marjeta, M. Valant, The homogeneity range and the microwave dielectric properties of the BaZn2Ti4O11 ceramics, J. Eur. Ceram. Soc. 26 (2006) 3733-3739.

DOI: 10.1016/j.jeurceramsoc.2005.12.013

[9] S.Q. Yu, B. Tang, S.R. Zhang, X.H. Zhou, Improved High Q Microwave Dielectric Ceramics in CuO-Doped BaTi4O9 BaZn2Ti4O11 System. J. Alloys Compd. 95 (2012) 1939-(1943).

DOI: 10.1111/j.1551-2916.2012.05086.x

[10] D. Zhou, H. Wang, X. Yao, L.X. Pang, Microwave dielectric characterization of a Li3NbO4 ceramic and its chemical compatibility with silver, J. Am. Ceram. Soc. 91 (2008) 4115-4117.

DOI: 10.1111/j.1551-2916.2008.02764.x

[11] C.F. Tseng, C.L. Huang, W.R. Yang, Microwave dielectric properties of xNd(Zn1/2Ti1/2)O3-(1-x)CaTiO3 ceramics, Mater. Lett. 61 (2007) 4054-4057.

DOI: 10.1016/j.matlet.2007.01.015

[12] L. Pang, H. Wang, D. Zhou, X. Yao, A new temperature stable microwave dielectric with low-firing temperature in Bi2MoO6-TiO2 system, J. Alloys Compd. 493 (2010) 626-629.

DOI: 10.1016/j.jallcom.2009.12.168
