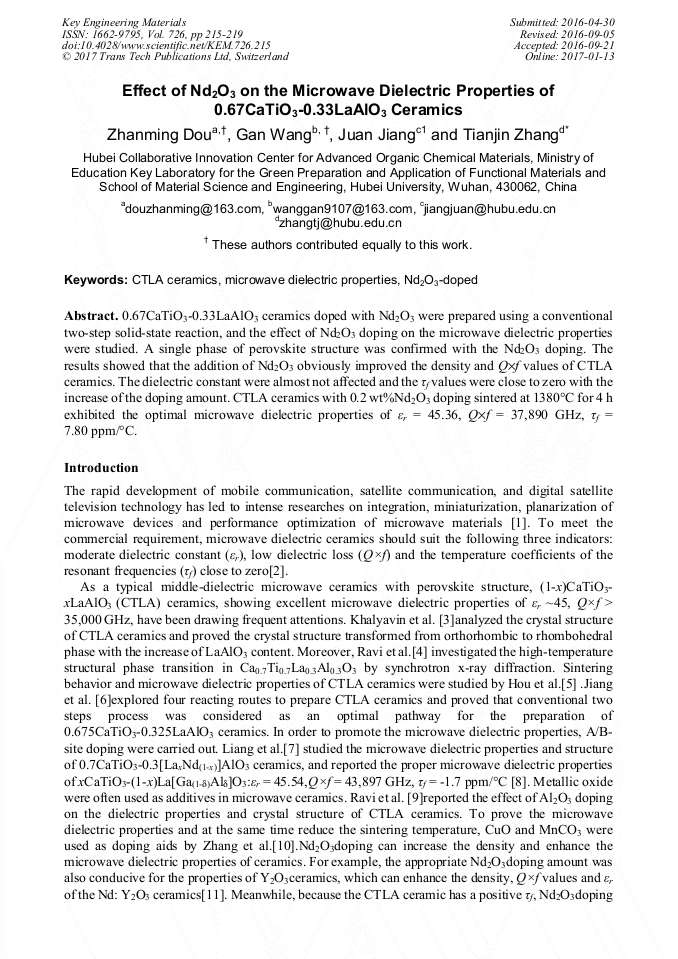

Effect of Nd₂O₃ on the Microwave Dielectric Properties of 0.67CaTiO₃-0.33LaAlO₃ Ceramics

Abstract:

0.67CaTiO₃-0.33LaAlO₃ ceramics doped with Nd₂O₃ were prepared using a conventional two-step solid-state reaction, and the effect of Nd₂O₃ doping on the microwave dielectric properties were studied. A single phase of perovskite structure was confirmed with the Nd₂O₃ doping. The results showed that the addition of Nd₂O₃ obviously improved the density and Q×f values of CTLA ceramics. The dielectric constant were almost not affected and the τ_f values were close to zero with the increase of the doping amount. CTLA ceramics with 0.2 wt% Nd₂O₃ doping sintered at 1380 °C for 4 h exhibited the optimal microwave dielectric properties of ε_r = 45.36, Q×f = 37,890 GHz, τ_f = 7.80 ppm/°C.

• Periodical: Key Engineering Materials (Volume 726)
• Pages: 215-219
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.726.215
• Online since: January 2017
• Authors: Zhan Ming Dou, Gan Wang, Juan Jiang*, Tian Jin Zhang
• Keywords: CTLA Ceramics, Microwave Dielectric Properties, Nd₂O₃-Doped

References

[1] G. Wang, J. Jiang, Z. Dou, F. Zhang, T. Zhang, Sintering behavior and microwave dielectric properties of 0. 67CaTiO3–0. 33LaAlO3 ceramics modified by B2O3–Li2O–Al2O3 and CeO2, Ceram. Int. (2016).

DOI: 10.1016/j.ceramint.2016.03.239

[2] Z. Dou, J. Jiang, G. Wang, F. Zhang, T. Zhang, Effect of Ga3+ substitution on the microwave dielectric properties of 0. 67CaTiO3–0. 33LaAlO3 ceramics, Ceram. Int. 42(6) (2016) 6743-6748.

DOI: 10.1016/j.ceramint.2016.01.046

[3] D.D. Khalyavin, A.N. Salak, A.M.R. Senos, P.Q. Mantas, V.M. Ferreira, Structure Sequence in the CaTiO3-LaAlO3 Microwave Ceramics-Revised, J. Am. Ceram. Soc. 89(5) (2006) 1721-1723.

DOI: 10.1111/j.1551-2916.2006.00929.x

[4] G.A. Ravi, F. Azough, R. Freer, R.J. Cernik, A.M.T. Bell, High-Temperature Structural Phase Transition in Ca0. 7Ti0. 7La0. 3Al0. 3O3: Investigation by Synchrotron X-Ray Diffraction, J. Am. Ceram. Soc. 90.

[12] (2007) 3947-3952.

[5] G. Hou, Z. Wang, F. Zhang, Sintering behavior and microwave dielectric properties of (1−x)CaTiO3−xLaAlO3 ceramics, J. Rare Earths 29(2) (2011) 160-163.

DOI: 10.1016/s1002-0721(10)60423-1

[6] J. Jiang, D. Fang, C. Lu, Z. Dou, G. Wang, F. Zhang, T. Zhang, Solid-state reaction mechanism and microwave dielectric properties of CaTiO3–LaAlO3 ceramics, J. Alloys Compd. 638 (2015) 443-447.

DOI: 10.1016/j.jallcom.2015.03.073

[7] F. Liang, M. Ni, W. Lu, G. Fan, Microwave dielectric properties and crystal structures of 0. 7CaTiO3–0. 3[LaxNd(1−x)]AlO3 ceramics, J. Alloys Compd. 568 (2013) 11-15.

DOI: 10.1016/j.jallcom.2013.03.059

[8] F. Liang, M. Ni, W. Lu, S. Feng, Crystal structure and microwave dielectric properties of CaTiO3–La[Ga(1−δ)Alδ]O3 ceramics system, Mater. Res. Bull. 57 (2014) 140-145.

DOI: 10.1016/j.materresbull.2014.05.042

[9] G.A. Ravi, F. Azough, R. Freer, Effect of Al2O3 on the structure and microwave dielectric properties of Ca0. 7Ti0. 7La0. 3Al0. 3O3, J. Eur. Ceram. Soc. 27(8-9) (2007) 2855-2859.

DOI: 10.1016/j.jeurceramsoc.2006.11.010

[10] J. Zheng, C. Zhang, Z. Xiong, F. Xiao, G. Yang, H. Xue, Influence of CuO or MnCO3 additive on the dielectric properties of Ca0. 65Ti0. 65La0. 35Al0. 35O3Ceramics, J. Phys: Conf. Ser. 152 (2009) 012062.

[11] X. Zhang, G. Fan, X. Wang, W. Lei, L. Fei, W. Lu, Effects of sintering parameters and Nd doping on the microwave dielectric properties of Y2O3 ceramics, Ceram. Int. 42(7) (2016) 7962-7967.

DOI: 10.1016/j.ceramint.2016.01.192
