Radio Frequency (RF) Magnetron Sputtered Barium Strontium Titanate (BST) Thin Film

Abstract:

Barium strontium titanate (BST) thin films with excellent dielectric properties are deposited by on-axis RF magnetron sputtering system. The effects of composition of the target and oxygen partial pressure on the microstructure of BST thin film have been investigated. The dielectric properties of the thin films are investigated. The results show that composition of BST thin film deposited with pure argon ambient by the target with 30atm% excess of Ba and Sr is stoichiometric. Perovskite phase can be observed in the thin film annealed in oxygen at 750 °C for 30 min. A metal-insulator-metal (MIM) capacitor is fabricated by microfabrication technique. The capacitance value at 2 GHz is 0.417 pF and 1.42 pF for 50 nm and 90 nm BST thin film respectively, and the leakage current density is 6×10^-6 A/cm²and 5.35×10^-8 A/cm²respectively.

You might also be interested in these eBooks

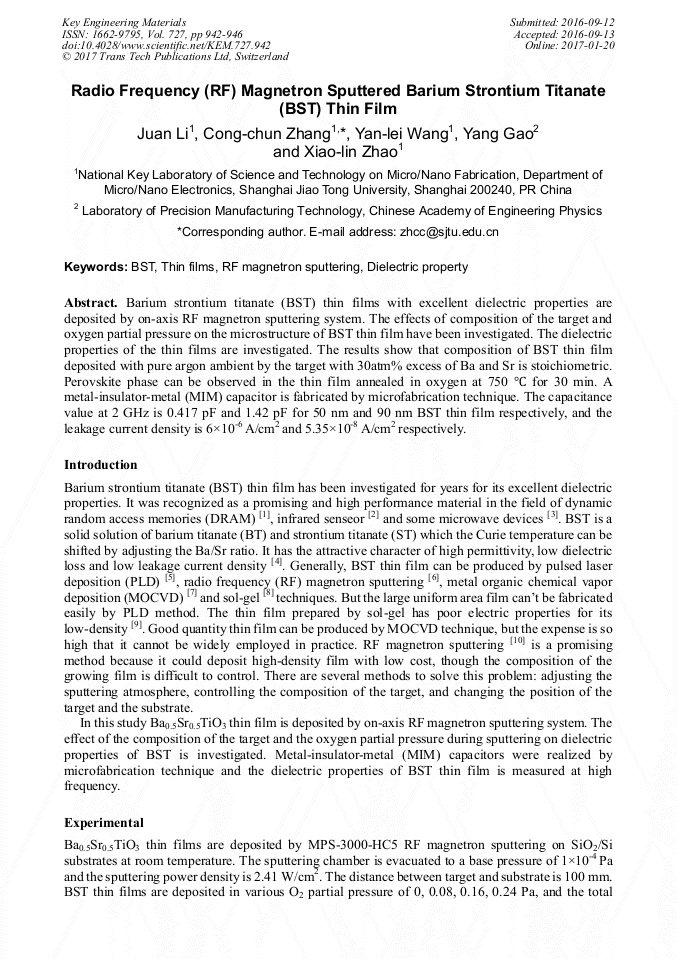

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 727)

Pages:

942-946

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.727.942

Citation:

Cite this paper

Online since:

January 2017

Authors:

Juan Li, Cong Chun Zhang, Yan Lei Wang, Yang Gao, Xiao Lin Zhao

Keywords:

BST, Dielectric Property, RF Magnetron Sputtering, Thin Films

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Ezhilvalavan, Tseung-Yuen Tseng, Progress in the developments of (Ba, Sr)TiO3 (BST) thin films for gigabit era DRAMs, J. Mater. Chem. Phys. 65( 2000) 227-248.

DOI: 10.1016/s0254-0584(00)00253-4

Google Scholar

[2] H. Zhu, M. Noda, T. Mukaigawa, H.P. Xu, K. Hashimoto, M. Okuyama, Application of ferroelectric BST thin film prepared by MOD for uncooled infrared senseor of dielectric bolometer mode , J. TIEE Japan. 120(2000) 554-558.

DOI: 10.1541/ieejsmas.120.554

Google Scholar

[3] G.Q. Zhang , Q. Xiao, C.Y. Cheng, X.L. Chen, S.W. Jiang, A voltage-controlled microstrip antenna made with BST variable capacitor, J. Electronic Components And Materials. 30(2012) 1001-(2028).

Google Scholar

[4] I. Norezan, A.K. Yahya, M.K. Talari, Effect of (Ba0. 6Sr0. 4)TiO3(BST) Doping on Dielectric Properties of CaCu3Ti4O12(CCTO), J. Journal of Mater. Sci. Technol. 28(2012) 1137-1144.

DOI: 10.1016/s1005-0302(12)60183-2

Google Scholar

[5] L. Goux, M. Gervais, A. Catherinot, C. Champeaux, F. Sabary, Crystalline and electrical properties of pulsed laser deposited BST on Platonized silicon substrates, J. Journal of Non-Crystalline Solids. 303(2002) 194-200.

DOI: 10.1016/s0022-3093(02)00985-7

Google Scholar

[6] J. Xu, M. Wolfgang, I.T. Ellen, Processing and properties of BST thin films for tunable microwave devices, J. Journal of the European Ceramic Society. 24(2004) 1735-1739.

DOI: 10.1016/s0955-2219(03)00485-0

Google Scholar

[7] S. Regnery, P. Ehrhart, F. Fitsilis, R. Waser, Y. Ding, C.L. Jia, M. Schumacher, F. Schienle, H. Juergensen, (Ba, Sr)TiO3 thin film growth in a batch processing MOCVD reactor[J]. Journal of the European Ceramic Society, J. Journal of the European Ceramic Society. 24(2004).

DOI: 10.1016/s0955-2219(03)00235-8

Google Scholar

[8] M. Nayak, T.Y. Tseng, Dielectric tunability of barium strontium titanate films prepared by a sol–gel method, J. Thin Solid Films. 408(2002) 194–199.

DOI: 10.1016/s0040-6090(02)00083-4

Google Scholar

[9] Y. Liu, J.H. Jin, Electrical transport properties of YCo1−𝑥Mn𝑥O3 (0 ≤𝑥 ≤ 0. 2) prepared by sol–gel process, B. Chin. Phys. 24(2015) 047202.

Google Scholar

[10] L. Wang. H.F. Sun, H.H. Zhou, J. Zhu, Preparation of BST nanocrystals embedded in SiO2 film by magnetron sputtering for nonvolatile memory applications, J. China. Sci. Bul. 56(2011) 1139−1141.

DOI: 10.1007/s11434-010-4159-3

Google Scholar
