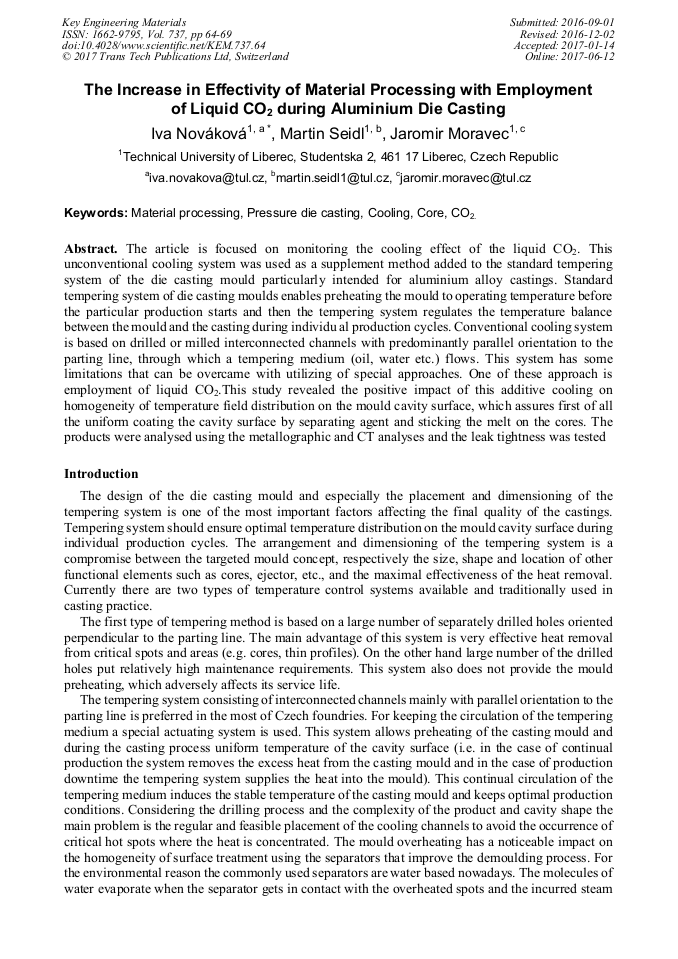

The Increase in Effectivity of Material Processing with Employment of Liquid CO₂ during Aluminium Die Casting

Abstract:

The article is focused on monitoring the cooling effect of the liquid CO₂. This unconventional cooling system was used as a supplement method added to the standard tempering system of the die casting mould particularly intended for aluminium alloy castings. Standard tempering system of die casting moulds enables preheating the mould to operating temperature before the particular production starts and then the tempering system regulates the temperature balance between the mould and the casting during individu al production cycles. Conventional cooling system is based on drilled or milled interconnected channels with predominantly parallel orientation to the parting line, through which a tempering medium (oil, water etc.) flows. This system has some limitations that can be overcame with utilizing of special approaches. One of these approach is employment of liquid CO₂.This study revealed the positive impact of this additive cooling on homogeneity of temperature field distribution on the mould cavity surface, which assures first of all the uniform coating the cavity surface by separating agent and sticking the melt on the cores. The products were analysed using the metallographic and CT analyses and the leak tightness was tested.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 737)

Pages:

64-69

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.737.64

Citation:

Cite this paper

Online since:

June 2017

Authors:

Iva Nováková*, Martin Seidl, Jaromír Moravec

Keywords:

CO₂, Cooling, Core, Material Processing, Pressure Die Casting

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J. Pasko, S. Gaspar, J. Ruzbarsky, Die casting defects of castings from silumin, Adv. Mater. Res. 510 (2014) 91-96.

DOI: 10.4028/www.scientific.net/amm.510.91

Google Scholar

[2] S. Gaspar, J. Pasko, Influence of technological factors of die casting on mechanical properties of castings from silumin, Lecture Notes in Electrical Engineering, 240 LNEE, (2013), pp.713-722.

DOI: 10.1007/978-94-007-6738-6_88

Google Scholar

[3] I. Nováková, I. Nová, P. Solfronk, J., Novák, J., Štverák, J. Špidlen, Technical report about activities in the branch of die casting TL_2013_1. TA03010492, TU of Liberec, (2013), pp.1-13.

Google Scholar

[4] I. Nováková, I. Nová, P. Solfronk, J. Novák, J. Štverák, J. Špidlen, Technical report about activities in the branch of die casting TL_2014_1. TA03010492, TU of Liberec. (2014), pp.1-32.

Google Scholar

[5] Information on http: /www. linde-gas. cz/cs/industries/plastics/index. html.

Google Scholar

[6] Information on http: /www. rmk-group. de/dokumente/upload/rmk_imageflyer-cz_1a198. pdf.

Google Scholar
