Fracture Toughness of Massively Transformed and Subsequently Heat Treated TiAl Intermetallic Compound

Koji Sakurai; Makoto Hasegawa; Ivo Dlouhý

doi:10.4028/www.scientific.net/KEM.741.25

Paper Titles

Mechanical Properties of Functionally Graded Porous Aluminum Consisting of Pure Aluminum and Al-Mg-Si Aluminum Alloy
p.1

Influence of Sintering Conditions on Mechanical Properties of Ag-Nano Sintered Material
p.7

Crack Resistance Characterization in TiAl Intermetallics with Enhanced Toughness
p.13

Development of Evaluation Method that Takes into Account the Effect of the Fine Structure of Adhesive Interface for Delamination Strength of the Packaging Resin
p.19

Fracture Toughness of Massively Transformed and Subsequently Heat Treated TiAl Intermetallic Compound
p.25

Solid-State Diffusion Bonding of Titanium by Using Metal Salt Coated Aluminum Sheet
p.31

Mechanical Stability and Deformation-Induced Transformation of Retained Austenite in TRIP Steels at Low Temperatures
p.36

Influence of Chloride for SCC Susceptibility on 15Cr Stainless Steel at High Temperatures under CO₂ Environment
p.42

Potentiodynamic Polarization and Electrochemical Impedance Spectroscopy Used for Prediction of Nitinol Stent’s Lifetime
p.50

HomeKey Engineering MaterialsKey Engineering Materials Vol. 741Fracture Toughness of Massively Transformed and...

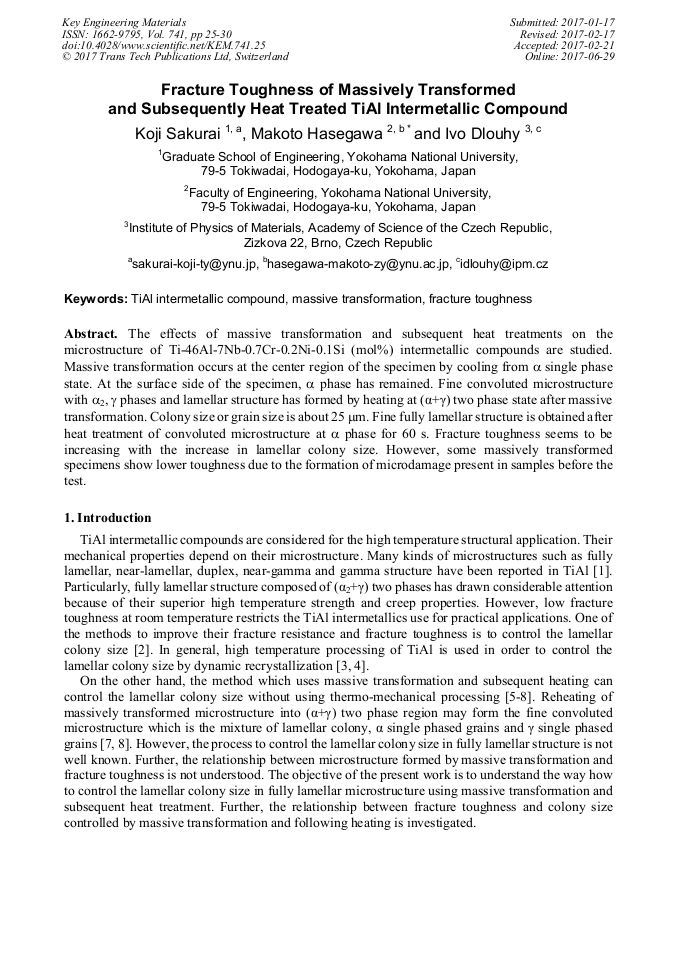

Fracture Toughness of Massively Transformed and Subsequently Heat Treated TiAl Intermetallic Compound

Abstract:

The effects of massive transformation and subsequent heat treatments on the microstructure of Ti-46Al-7Nb-0.7Cr-0.2Ni-0.1Si (mol%) intermetallic compounds are studied. Massive transformation occurs at the center region of the specimen by cooling from α single phase state. At the surface side of the specimen, α phase has remained. Fine convoluted microstructure with α₂, γ phases and lamellar structure has formed by heating at (α+γ) two phase state after massive transformation. Colony size or grain size is about 25 μm. Fine fully lamellar structure is obtained after heat treatment of convoluted microstructure at α phase for 60 s. Fracture toughness seems to be increasing with the increase in lamellar colony size. However, some massively transformed specimens show lower toughness due to the formation of microdamage present in samples before the test.

You might also be interested in these eBooks

Analysis of Damage Features and Failures for Structural Materials and Parts

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 741)

Pages:

25-30

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.741.25

Citation:

Cite this paper

Online since:

June 2017

Authors:

Koji Sakurai, Makoto Hasegawa*, Ivo Dlouhý

Keywords:

Fracture Toughness, Massive Transformation, TiAl Intermetallic Compound

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y-W. Kim, JOM, 46 (1994) 30-39.

Google Scholar

[2] Y-W. Kim, Intermetallics, 6 (1998) 623-628.

Google Scholar

[3] A. Nomoto, H. Fukutomi, J. Japan Inst. Metals, 61 (1997) 378-384.

Google Scholar

[4] M. Hasegawa, H. Fukutomi, Mater. Sci. Eng., A 508 (2009) 106-113.

Google Scholar

[5] P. Wang, G.B. Viswanathan, V.K. Vasudevan, Metall. Trans., A 23 (1992) 690-697.

Google Scholar

[6] M. Takeyama, T. Kumagai, T. Aritomi, M. Nakamura, Japanese patent JP6279964, (1994).

Google Scholar

[7] A. Sankaran, E. Bouzy, J. J. Fundenberger, A. Hazotte, Intermetallics, 17 (2009) 1007-1016.

DOI: 10.1016/j.intermet.2009.05.001

Google Scholar

[8] M. Hasegawa, T. Nomura, H. Haga, I. Dlouhy, H. Fukutomi, Int. J. Mater. Res., 105 (2014), 1075-1083.

Google Scholar

[9] S. Kobayashi, Ph. D Thesis, Tokyo Institute of Technology, Tokyo, (2001).

Google Scholar

[10] I. Dlouhy , M. Holzmann, J. Man, L. Valka, Metall. Mater., 32 (1994) 5-10.

Google Scholar

[11] M.J. Blackburn, The Science, Technology and Application of Titanium, (1970) 633-643.

Google Scholar

[12] I. Dlouhy, Z. Chlup, H. Hadraba, K. Krahula: Metallofiz. Noveishie Tekhnol. 31 (2009) 1001-1016.

Google Scholar

[13] I. Dlouhy, Z. Chlup, H. Hadraba, V. Kozák, in: T. Boukharouba, M. Elboujdaini, G. Pluvinage (Eds. ), Damage and Fracture Mechanics: Fracture Analysis of Engineering Materials and Structures, Springer (2009) 265.

DOI: 10.1007/978-90-481-2669-9

Google Scholar
