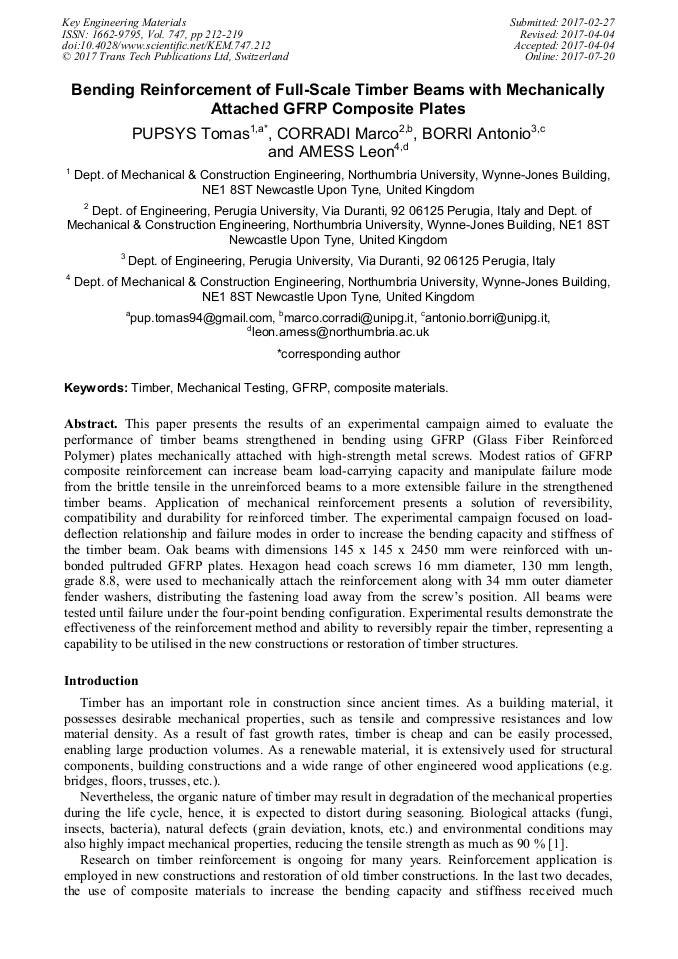

Bending Reinforcement of Full-Scale Timber Beams with Mechanically Attached GFRP Composite Plates

Abstract:

This paper presents the results of an experimental campaign aimed to evaluate the performance of timber beams strengthened in bending using GFRP (Glass Fiber Reinforced Polymer) plates mechanically attached with high-strength metal screws. Modest ratios of GFRP composite reinforcement can increase beam load-carrying capacity and manipulate failure mode from the brittle tensile in the unreinforced beams to a more extensible failure in the strengthened timber beams. Application of mechanical reinforcement presents a solution of reversibility, compatibility and durability for reinforced timber. The experimental campaign focused on load-deflection relationship and failure modes in order to increase the bending capacity and stiffness of the timber beam. Oak beams with dimensions 145 x 145 x 2450 mm were reinforced with un-bonded pultruded GFRP plates. Hexagon head coach screws 16 mm diameter, 130 mm length, grade 8.8, were used to mechanically attach the reinforcement along with 34 mm outer diameter fender washers, distributing the fastening load away from the screw’s position. All beams were tested until failure under the four-point bending configuration. Experimental results demonstrate the effectiveness of the reinforcement method and ability to reversibly repair the timber, representing a capability to be utilised in the new constructions or restoration of timber structures.

• Periodical: Key Engineering Materials (Volume 747)
• Pages: 212-219
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.747.212
• Online since: July 2017
• Authors: Tomas Pupsys*, Marco Corradi, Antonio Borri, Leon Amess
• Keywords: Composite Materials, Glass Fiber Reinforced Polymer (GFRP), Mechanical Testing, Timber

References

[1] Thelandersson S, Larsen HJ. Timber engineering. John Wiley & Sons (2003).

[2] M. Corradi, A. Borri, Fir and chestnut timber beams reinforced with GFRP pultruded elements, Compos. Part B-Eng. 38 (2007) 172-181.

DOI: 10.1016/j.compositesb.2006.07.003

[3] G.M. Raftery, A.M. Harte, Low-grade glued laminated timber reinforced with FRP plate, Compos. Part B-Eng. 42 (2011) 724-735.

DOI: 10.1016/j.compositesb.2011.01.029

[4] C. Gentile, D. Svecova, S.R. Rizkalla, Timber beams strengthened with GFRP bars: development and applications, J. Compos. Constr. 6 (2002) 11-20.

DOI: 10.1061/(asce)1090-0268(2002)6:1(11)

[5] A. Borri, M. Corradi, A. Grazini, A method for flexural reinforcement of old wood beam with CFRP materials, Compos. Part B-Eng. 36 (2005) 143-153.

DOI: 10.1016/j.compositesb.2004.04.013

[6] F. Micelli, V. Scialpi, A. La Tegola, Flexural reinforcement of glulam timber beams and joints with carbon fiber-reinforced polymer rods, J. Compos. Constr. 9 (2005) 337-347.

DOI: 10.1061/(asce)1090-0268(2005)9:4(337)

[7] G.M. Raftery, C. Whelan, Low-grade glued laminated timber beams reinforced using improved arrangements of bonded-in GFRP rods, Constr. Build. Mater. 52 (2014) 209-220.

DOI: 10.1016/j.conbuildmat.2013.11.044

[8] L. Righetti, M. Corradi, A. Borri, Bond strength of composite CFRP reinforcing bars in timber, Materials 8 (2015) 4034-4049.

DOI: 10.3390/ma8074034

[9] A. D'Ambrisi, Focacci F, L. Raimondo, Experimental investigation on flexural behavior of timber beams repaired with CFRP plates, Compos. Struct. 108 (2014) 720-728.

DOI: 10.1016/j.compstruct.2013.10.005

[10] P. de la Rosa García, A. Cobo Escamilla, M.N. González García, Bending reinforcement of timber beams with composite carbon fiber and basalt fiber materials, Compos. Part. B: Eng. 55 (2013) 528-536.

DOI: 10.1016/j.compositesb.2013.07.016

[11] Y.J. Kim, K.A. Harries, Modeling of timber beams strengthened with various CFRP composites, Eng. Struct. (2010) 32 3225-3234.

DOI: 10.1016/j.engstruct.2010.06.011

[12] S. Hay, K. Thiessen, D. Svecova, B. Bakht, Effectiveness of GFRP sheets for shear strengthening of timber, J. Compos. Constr. 10 (2006) 483-491.

DOI: 10.1061/(asce)1090-0268(2006)10:6(483)

[13] J. Jasieńko, T.P. Nowak, Ł Bednarz, Baroque structural ceiling over the Leopoldinum Auditorium in Wrocław University: tests, conservation, and a strengthening concept, Int. J. Archit. Herit. 8 (2014) 269-289.

DOI: 10.1080/15583058.2012.692848

[14] D.W. Radford, D. Van Goethem, R.M. Gutkowski, M.L. Peterson, Composite repair of timber structures, Constr. Build. Mater. 16 (2002) 417-425.

DOI: 10.1016/s0950-0618(02)00044-2

[15] K.U. Schober, A.M. Harte, R. Kliger, R. Jockwer, Q. Xu, Chen JF. FRP reinforcement of timber structures, Constr. Build. Mater. 97 (2015) 106-118.

DOI: 10.1016/j.conbuildmat.2015.06.020

[16] A. Borri, M. Corradi, E. Speranzini, Reinforcement of wood with natural fibres, Compos. Part B-Eng. 53 (2013) 1-8.

[17] P. Munafò, F. Stazi, C. Tassi, F. Davì, Experimentation on historic timber trusses to identify repair techniques compliant with the original structural–constructive conception, Constr. Build. Mater. 87 (2015) 54-66.

DOI: 10.1016/j.conbuildmat.2015.03.086

[18] L. Wang, A. Toppinen, H. Juslin, Use of wood in green building: a study of expert perspectives from the UK, J. Clean. Prod. 65 (2014) 350-361.

DOI: 10.1016/j.jclepro.2013.08.023

[19] M. Corradi, A. Borri, G. Castori, E. Speranzini, Fully reversible reinforcement of softwood beams with unbonded composite plates, Compos. Struct. 149 (2016) 54-68.

DOI: 10.1016/j.compstruct.2016.04.014

[20] EN 338: 2009. Structural timber - Strength classes.

[21] EN 14399: 2005 High-strength structural bolting assemblies for preloading.

[22] EN 408: 2010. Timber structures. Structural timber and glued laminated timber: determination of some physical and mechanical properties.

DOI: 10.3403/30159970

[23] ASTM D143: 2009. Standard test methods for small clear specimens of timber.

[24] EN 13183-1: 2002. Moisture content of a piece of sawn timber. Determination by oven dry method.

DOI: 10.3403/02558468

[25] EN 13706-1: 2002. Reinforced plastics composites. Specifications for pultruded profiles.

[26] ASTM D3039: 2009. Standard test method for tensile properties of fiber-resin composites.
