Epitaxial Growth of Diamond by In-Liquid Plasma CVD Method

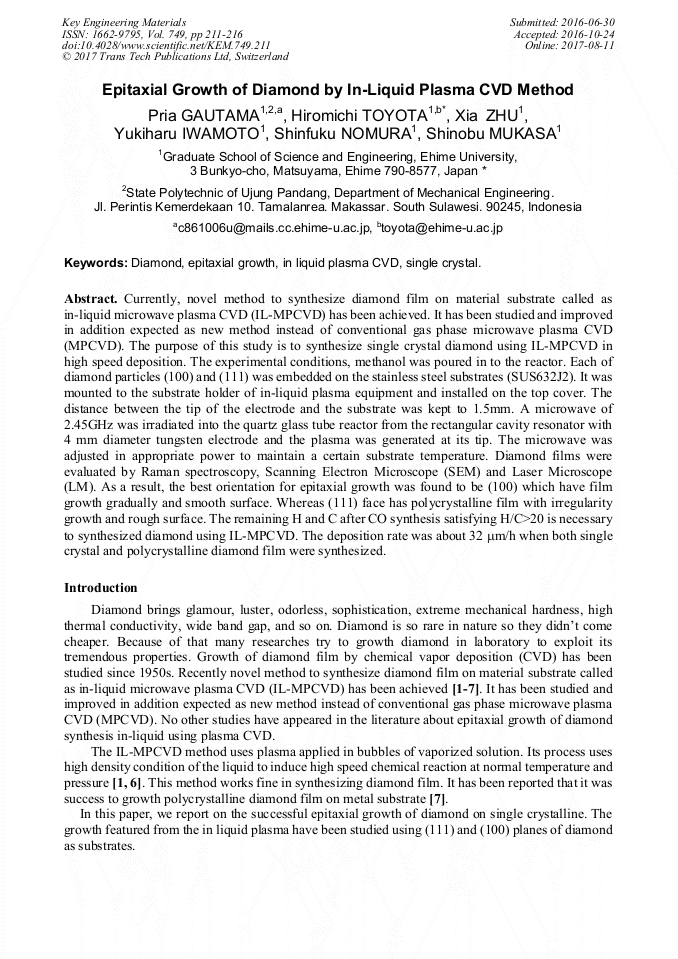

Abstract:

Currently, novel method to synthesize diamond film on material substrate called as in-liquid microwave plasma CVD (IL-MPCVD) has been achieved. It has been studied and improved in addition expected as new method instead of conventional gas phase microwave plasma CVD (MPCVD). The purpose of this study is to synthesize single crystal diamond using IL-MPCVD in high speed deposition. The experimental conditions, methanol was poured in to the reactor. Each of diamond particles (100) and (111) was embedded on the stainless steel substrates (SUS632J2). It was mounted to the substrate holder of in-liquid plasma equipment and installed on the top cover. The distance between the tip of the electrode and the substrate was kept to 1.5mm. A microwave of 2.45GHz was irradiated into the quartz glass tube reactor from the rectangular cavity resonator with 4 mm diameter tungsten electrode and the plasma was generated at its tip. The microwave was adjusted in appropriate power to maintain a certain substrate temperature. Diamond films were evaluated by Raman spectroscopy, Scanning Electron Microscope (SEM) and Laser Microscope (LM). As a result, the best orientation for epitaxial growth was found to be (100) which have film growth gradually and smooth surface. Whereas (111) face has polycrystalline film with irregularity growth and rough surface. The remaining H and C after CO synthesis satisfying H/C>20 is necessary to synthesized diamond using IL-MPCVD. The deposition rate was about 32 μm/h when both single crystal and polycrystalline diamond film were synthesized.

• Periodical: Key Engineering Materials (Volume 749)
• Pages: 211-216
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.749.211
• Online since: August 2017
• Authors: Pria Gautama, Hiromichi Toyota*, Xia Zhu, Yukiharu Iwamoto, Shinfuku Nomura, Shinobu Mukasa
• Keywords: Diamond, Epitaxial Growth, In-Liquid Plasma CVD, Single Crystal

References

[1] H. Toyota, S. Nomura, Y. Takahashi, S. Mukasa, Submerged synthesis of diamond in liquid alcohol plasma, Diamond Relat. Mater., 17 (2008), p. (1902).

DOI: 10.1016/j.diamond.2008.04.010

[2] Y. Takahashi, H. Toyota, S. Nomura, S. Mukasa, T. Inoue, A comparison of diamond growth rate using in-liquid and conventional plasma chemical vapor deposition methods, J. Appl. Phys., 105 (2009), p.113306.

DOI: 10.1063/1.3117198

[3] Y. Takahashi, H. Toyota, S. Nomura, S. Mukasa, T. Inoue, S. Okuda, Synthesis of diamond using in-liquid plasma chemical vapor deposition, Jpn. J. Appl. Phys., 48 (2009), p.031601.

DOI: 10.1143/jjap.48.031601

[4] H. Toyota, S. Nomura, S. Mukasa, Y. Takahashi, S. Okuda, Diamond synthesis by plasma chemical vapor deposition in liquid and gas, Diamond Relat. Mater., 19 (2010), p.418.

DOI: 10.1016/j.diamond.2009.12.018

[5] H. Toyota, S. Nomura, S. Mukasa, H. Yamashita, T. Shimo, S. Okuda, A consideration of ternary C–H–O diagram for diamond deposition using microwave in-liquid and gas phase plasma, Diamond Relat. Mater., 20 (2011), p.1255.

DOI: 10.1016/j.diamond.2011.07.010

[6] S. Nomura, H. Toyota, S. Mukasa, Y. Takahashi, T. Maehara, A. Kawashima, H. Yamashita, Discharge characteristics of microwave and high-frequency in-liquid plasma in water, Appl. Phys. Express, 1 (2008), p.046002.

DOI: 10.1143/apex.1.046002

[7] H. Toyota, T Yanagimoto, S. Nomura, S. Mukasa, Synthesis of Diamond film by in-liquid plasma CVD, JCREN, (2014).

[8] T. Mahera, I. Miyamoto, K. Kurokawa, Y. Hashimoto, A. Imawae, M. Kuramoto, H. Yamashita, S. Mukasa, H. Toyota, S. Nomura, A. Kawashima, Plasma Chem. Plasma Process. 28(4)(2008) 467.

DOI: 10.1007/s11090-008-9142-2

[9] T. Norio, Homoepitiaxial Diamond Growth by Plasma-Enhanced Chemical Vapor Deposition, Applied Physics, 121, DOI 10. 1007/978-3-319-09834-0_1.

[10] Liu Huimin, Dandy David. S, Studies on Nucleation Process in Diamond CVD : An Overview of recent Development, Department of Chemical Engineering, Colorado State University, Fort Collins, CO 80523.

[11] Ashfold M.N. R, May P. W, Rego C. A, Everitt N. M Thin Film Diamond by Chemical Vapour Deposition Methods, School of Chemistry, Department of Aerospace Engineering University of Bristol, , Bristol BS8 1TR, U. K.

DOI: 10.3934/dcdsb.2010.13.327

[12] B. Andrezj, B. Teresa, Diamond homoepitiaxy by chemical vapor deposition, Diamond and Related Materials, 2(1993)147-157.

[13] S. Schwarz,C. Rottmair, J. Hirmke, S. Risiwal, R.F. Singer, CVD-diamond single crystal growth., Journal of Crystal growth 271 (2004) 425-434.

DOI: 10.1016/j.jcrysgro.2004.08.003
