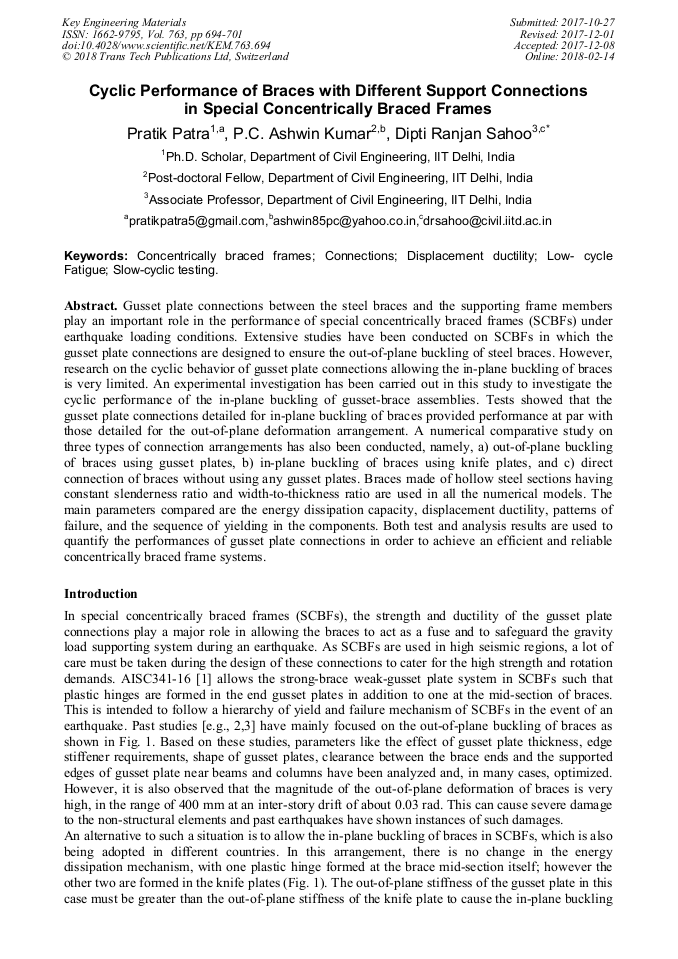

Cyclic Performance of Braces with Different Support Connections in Special Concentrically Braced Frames

Abstract:

Gusset plate connections between the steel braces and the supporting frame members play an important role in the performance of special concentrically braced frames (SCBFs) under earthquake loading conditions. Extensive studies have been conducted on SCBFs in which the gusset plate connections are designed to ensure the out-of-plane buckling of steel braces. However, research on the cyclic behavior of gusset plate connections allowing the in-plane buckling of braces is very limited. An experimental investigation has been carried out in this study to investigate the cyclic performance of the in-plane buckling of gusset-brace assemblies. Tests showed that the gusset plate connections detailed for in-plane buckling of braces provided performance at par with those detailed for the out-of-plane deformation arrangement. A numerical comparative study on three types of connection arrangements has also been conducted, namely, a) out-of-plane buckling of braces using gusset plates, b) in-plane buckling of braces using knife plates, and c) direct connection of braces without using any gusset plates. Braces made of hollow steel sections having constant slenderness ratio and width-to-thickness ratio are used in all the numerical models. The main parameters compared are the energy dissipation capacity, displacement ductility, patterns of failure, and the sequence of yielding in the components. Both test and analysis results are used to quantify the performances of gusset plate connections in order to achieve an efficient and reliable concentrically braced frame systems.

• Periodical: Key Engineering Materials (Volume 763)
• Pages: 694-701
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.763.694
• Online since: February 2018
• Authors: Pratik Patra, P.C. Ashwin Kumar, Dipti Ranjan Sahoo*
• Keywords: Concentrically Braced Frames, Connections, Displacement Ductility, Low-Cycle Fatigue, Slow-Cyclic Testing

References

[1] AISC 341-16, Seismic Provisions for Structural Steel Buildings, American Institutes of Steel Construction, Inc. Chicago, IL, (2016).

DOI: 10.1201/b11248-16

[2] C.W. Roeder, D.E. Lehman, K. Clark, J. Powell, J.H. Yoo, K.C. Tsai, C.H. Lin and C.Y. Wei, Influence of Gusset Plate Connection and Braces on the Seismic Performance of X-Braced Frames, Earthquake Engineering and Structural Dynamics, 40(4) 2011 355-374.

DOI: 10.1002/eqe.1024

[3] A. Astaneh-Asl, S.C. Goel and R.D. Hanson, Cyclic out-of-plane buckling of double-angle bracing. Journal of structural Engineering. 111(5) 1985 1135-1153.

DOI: 10.1061/(asce)0733-9445(1985)111:5(1135)

[4] IS: 1161-1998, Steel Tubes for Structural Purposes-Specification, Bureau of Indian Standards, New Delhi, (2003).

[5] IS: 4923-1997, Hollow Steel Sections for Structural Use-Specification, Bureau of Indian Standards, New Delhi, (2009).

[6] C.W. Roeder, E.J. Lumpkin and D.E. Lehman, A balanced design procedure for special concentrically braced frame connections. Journal of Constructional Steel Research 67(11) (2011) 1760-1772.

DOI: 10.1016/j.jcsr.2011.04.016

[7] Abaqus, User's Manual, Version, 11. 6, Hibbitt, Karlsson, and Sorensen, Inc., Providence, RI, (2011).

[8] B. Fell. Large-scale testing and simulation of earthquake-induced ultra low cycle fatigue in bracing members subjected to cyclic inelastic buckling. University of California, Davis, (2008).

[9] P.C.A. Kumar, D.R. Sahoo and N. Kumar, Limiting values of slenderness ratio for circular braces of concentrically braced frames. Journal of Constructional Steel Research. 115 (2015) 223-235.

DOI: 10.1016/j.jcsr.2015.08.026
