Microstructure and Mechanical Properties of Equitomic CoCrFeCuNi High Entropy Alloy

Seung Min Oh; Sun Ig Hong

doi:10.4028/www.scientific.net/KEM.765.149

Paper Titles

Release of Sodium Salicylate from Hydrogels Prepared from Wheat and Arrowroot Starches
p.124

Experimental Investigation on Aerosol-Particle Sustaining Characteristics of a Porous-Walled Tube
p.131

Fabrication of Mesoporous Bioactive Glass Nanoparticles by Sol-Gel Method
p.136

Investigation of Microclimate in Sports Shoes with the Integration of Human Subjective Sensations
p.140

Microstructure and Mechanical Properties of Equitomic CoCrFeCuNi High Entropy Alloy
p.149

Corrosion of 310S Austenitic Stainless Steel in Simulated Rocket Combustion Gas
p.155

Micromechanical Study of the Forged Ti-1023 Titanium Alloy by Micro-Indentation
p.160

Stress-Strain Responses of Multi-Phase CoCrCuMnNi and CoCrMnFeCu Alloys
p.166

Corrosion of Fe₃Al-4Cr Alloys at 1000°C in N₂-0.1%H₂S Gas
p.173

HomeKey Engineering MaterialsKey Engineering Materials Vol. 765Microstructure and Mechanical Properties of...

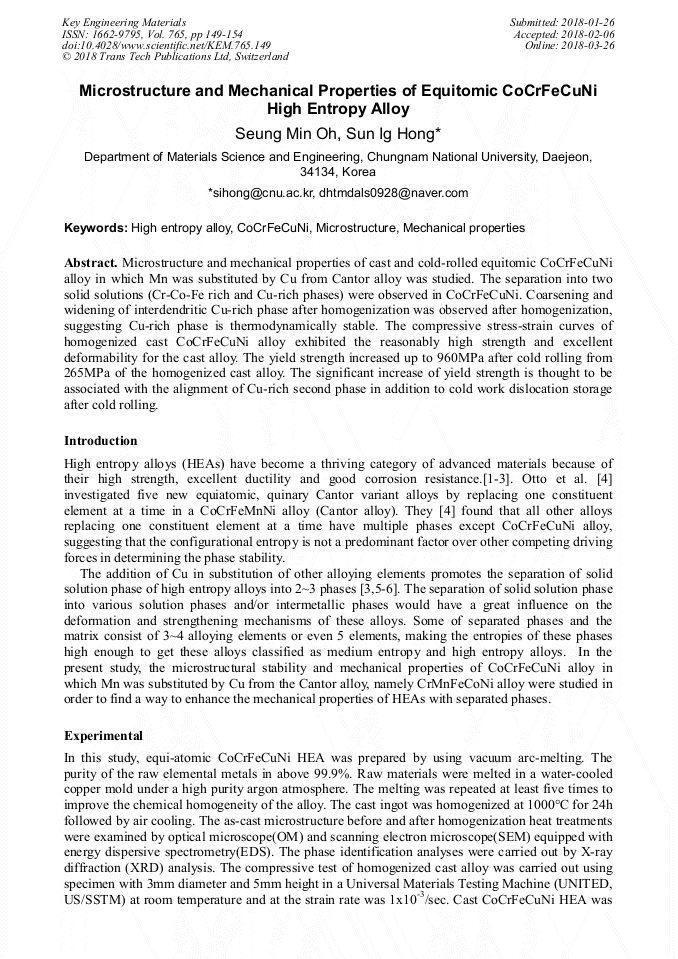

Microstructure and Mechanical Properties of Equitomic CoCrFeCuNi High Entropy Alloy

Abstract:

Microstructure and mechanical properties of cast and cold-rolled equitomic CoCrFeCuNi alloy in which Mn was substituted by Cu from Cantor alloy was studied. The separation into two solid solutions (Cr-Co-Fe rich and Cu-rich phases) were observed in CoCrFeCuNi. Coarsening and widening of interdendritic Cu-rich phase after homogenization was observed after homogenization, suggesting Cu-rich phase is thermodynamically stable. The compressive stress-strain curves of homogenized cast CoCrFeCuNi alloy exhibited the reasonably high strength and excellent deformability for the cast alloy. The yield strength increased up to 960MPa after cold rolling from 265MPa of the homogenized cast alloy. The significant increase of yield strength is thought to be associated with the alignment of Cu-rich second phase in addition to cold work dislocation storage after cold rolling.

You might also be interested in these eBooks

View Preview

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 765)

Pages:

149-154

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.765.149

Citation:

Cite this paper

Online since:

March 2018

Authors:

Seung Min Oh, Sun Ig Hong*

Keywords:

CoCrFeCuNi, High Entropy Alloy, Mechanical Properties, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J. W. Yeh, S. K. Chen, S. J. Lin, J. Y. Gan, T. S. Chin, T.T. Shun, C. H. Tsau and S. Y. Chang: Adv. Eng. Mater. 6(5), pp.229-303.

Google Scholar

[2] R. Carroll, C. Lee, C. W. Tsai, J. W. Yeh, J. Antonaglia, B. A. W. Brinkman. M. Leblanc, X. Xie, S, Chen, P. K. Liaw and K. A. Dahmen: Scientific Reports. (2015) 10. 1038/srep16997.

DOI: 10.1038/srep16997

Google Scholar

[3] W. L. Wang, L. Hu, S. B. Luo, L. J. Meng, D. L. Geng and B. Wei: Intermetallics 77(2016), pp.41-45.

Google Scholar

[4] F. Otto, Y. Yang, H. Bei and E. P. George: Acta Materialia Vol. 61 (2013) pp.2628-2638.

Google Scholar

[5] N. Liu, P. H. Wu, P. J. Zhou, Z. Peng, X. J. Wang and Y. P. Lu: Intermetallics, Vol. 72 (2016) pp.44-52.

Google Scholar

[6] Y. J. Hsu, W. C. Chiang and J.K. Wu: Mater. Chem. Phys, Vol. 92 (2015) pp.112-117.

Google Scholar

[7] F. Zhang, C. Zhang, S.L. Chen, J. Zhu, W.S. Cao, U.R. Kattner, CALPHAD, 45(2014) 1-10.

Google Scholar

[8] Z.Wu, H. Bei, F. Otto, G.M. Pharr, E.P. George, Intermetallics 46(2014) 131-140.

Google Scholar

[9] S.I. Hong, C. Laird, Acta Metall. Mater., 38 (1990) 1581–1594.

Google Scholar

[10] S.I. Hong, Scripta Mater. 44 (2001) 995-1001.

Google Scholar

[11] S.I. Hong, M.A. Hill, Acta Mater. 46 (1998) 4111–4122.

Google Scholar

[12] KH Lee, SI Hong, Journal of Materials Research 18 (2003) 2194-2202.

Google Scholar
