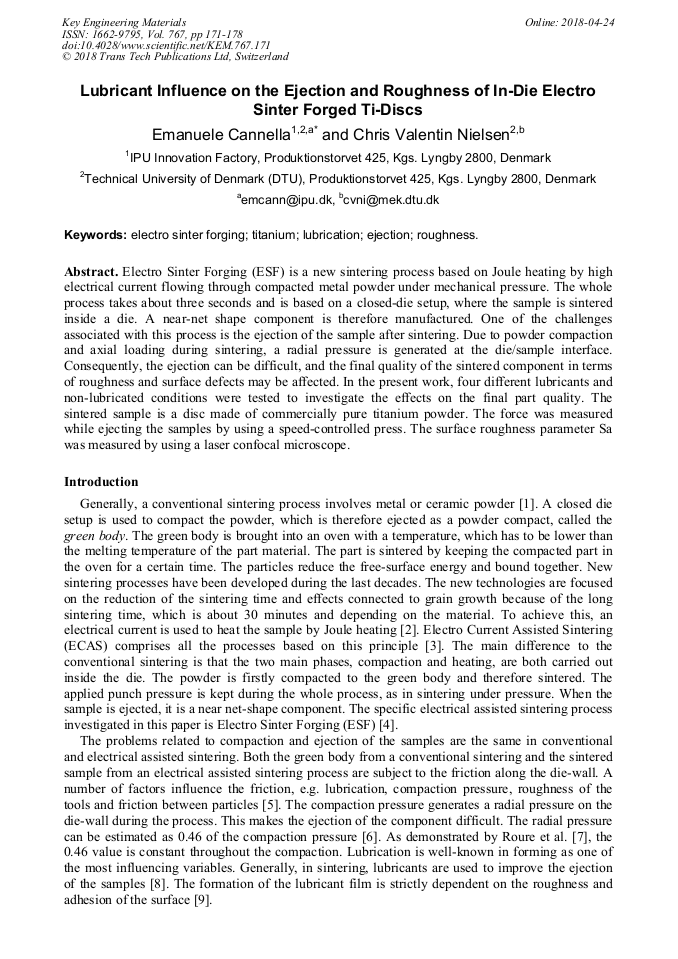

Lubricant Influence on the Ejection and Roughness of In-Die Electro Sinter Forged Ti-Discs

Abstract:

Electro Sinter Forging (ESF) is a new sintering process based on Joule heating by high electrical current flowing through compacted metal powder under mechanical pressure. The whole process takes about three seconds and is based on a closed-die setup, where the sample is sintered inside a die. A near-net shape component is therefore manufactured. One of the challenges associated with this process is the ejection of the sample after sintering. Due to powder compaction and axial loading during sintering, a radial pressure is generated at the die/sample interface. Consequently, the ejection can be difficult, and the final quality of the sintered component in terms of roughness and surface defects may be affected. In the present work, four different lubricants and non-lubricated conditions were tested to investigate the effects on the final part quality. The sintered sample is a disc made of commercially pure titanium powder. The force was measured while ejecting the samples by using a speed-controlled press. The surface roughness parameter Sa was measured by using a laser confocal microscope.

• Periodical: Key Engineering Materials (Volume 767)
• Pages: 171-178
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.767.171
• Online since: April 2018
• Authors: Emanuele Cannella, Chris Valentin Nielsen
• Keywords: Ejection, Electro Sinter Forging, Lubrication, Roughness, Titanium

References

[1] R. H. R. Castro, Overview of Conventional Sintering,, in Sintering, vol. 35, R. H. R. Castro and K. van Benthem, Eds. Springer, 2013, p.1–16.

[2] O. Van der Biest, The Role of the Electric Current and Field during Pulsed Electric Current Sintering,, Ceram. Compos. Process. Methods, p.43–73, (2012).

DOI: 10.1002/9781118176665.ch2

[3] S. Grasso, Y. Sakka, and G. Maizza, Electric current activated/assisted sintering ( ECAS ): a review of patents 1906–2008,, Sci. Technol. Adv. Mater., vol. 10, no. 5, p.53001, (2009).

DOI: 10.1088/1468-6996/10/5/053001

[4] A. Fais, M. A. Grande, and I. Forno, Influence of processing parameters on the mechanical properties of Electro-Sinter-Forged iron based powders,, Jmade, vol. 93, p.458–466, (2016).

DOI: 10.1016/j.matdes.2015.12.142

[5] S. Turenne, C. Godere, Y. Thomas, and P. E. Mongeon, Evaluation of friction conditions in powder compaction for admixed and die wall lubrication,, Powder Metall., vol. 42, no. 3, p.263–268, (1999).

DOI: 10.1179/003258999665611

[6] G. A. Gegel and S. Luk, Test Device and Method for Evaluation of Lubricants for P/M Compaction,, no. 1. Caterpillar Inc., Hoeganaes Corporation.

[7] S. Roure, D. Bouvard, P. Dorémus, and E. Pavier, Analysis of die compaction of tungsten carbide and cobalt powder mixtures,, Powder Metall., vol. 42, no. 2, p.164–170, Feb. (1999).

DOI: 10.1179/003258999665521

[8] M. Qian, G. B. Schaffer, and C. J. Bettles, Sintering of titanium and its alloys, no. October 2016. (2010).

[9] N. Solimanjad and M. Larsson, Tribological Properties of Lubricants Used in PM Process., Höganäs AB, p.1–10.

[10] Y. Y. Li, T. L. Ngai, D. T. Zhang, Y. Long, and W. Xia, Effect of die wall lubrication on warm compaction powder metallurgy,, J. Mater. Process. Technol., vol. 129, no. 1–3, p.354–358, (2002).

DOI: 10.1016/s0924-0136(02)00648-9

[11] Molykote® D-321 R Anti-friction Coating., [Online]. Available: https://www.fmv.se/FTP/ Drivmedel2016/datablad/M0744-0880XX_MOLYKOTE D321R.pdf.
