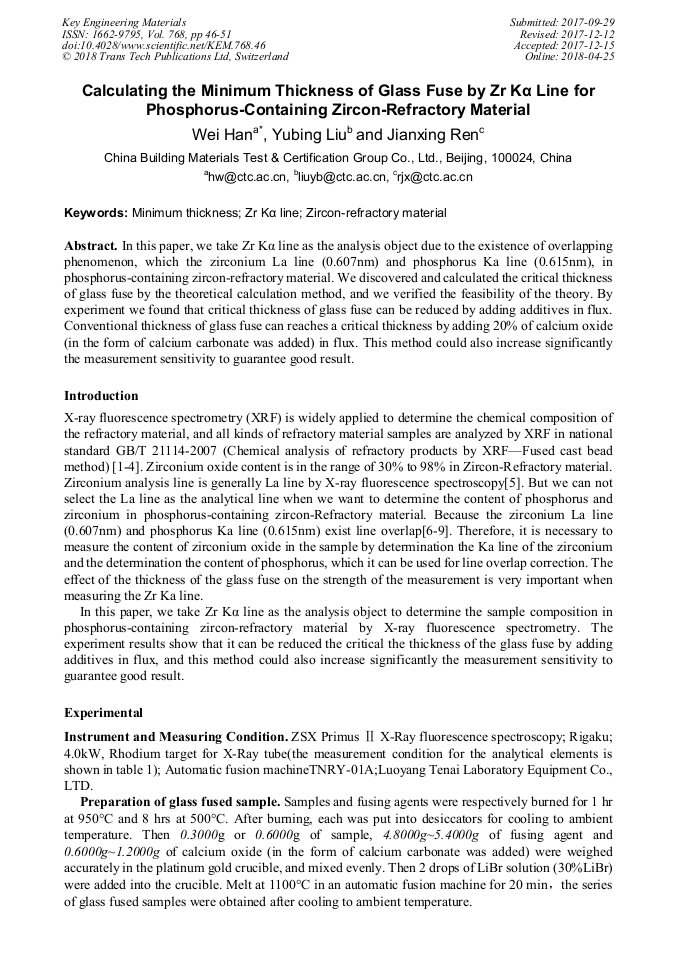

Calculating the Minimum Thickness of Glass Fuse by Zr Kα Line for Phosphorus-Containing Zircon-Refractory Material

Abstract:

In this paper, we take Zr Kα line as the analysis object due to the existence of overlapping phenomenon, which the zirconium La line (0.607nm) and phosphorus Ka line (0.615nm), in phosphorus-containing zircon-refractory material. We discovered and calculated the critical thickness of glass fuse by the theoretical calculation method, and we verified the feasibility of the theory. By experiment we found that critical thickness of glass fuse can be reduced by adding additives in flux. Conventional thickness of glass fuse can reaches a critical thickness by adding 20% of calcium oxide (in the form of calcium carbonate was added) in flux. This method could also increase significantly the measurement sensitivity to guarantee good result.

You might also be interested in these eBooks

Properties and Testing Techniques of Inorganic Materials III

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 768)

Pages:

46-51

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.768.46

Citation:

Cite this paper

Online since:

April 2018

Authors:

Wei Han*, Yu Bing Liu, Jian Xing Ren

Keywords:

Minimum Thickness, Zircon-Refractory Material, Zr Kα Line

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] P. ThinhT,J.Leroux, X-ray Spectrum. 1979, 8.

Google Scholar

[2] J.Hu，H.L. Guo, J.W. Du, Naihuo Cailiao.36(2002)46-49.

Google Scholar

[3] B.H. Wang, H.L. Guo, J. Hu, Metallurgical Analysis. 30(2010)39-41.

Google Scholar

[4] L.M. Qian, Guangdong Huagong. 11(2013)192-195.

Google Scholar

[5] B.H. Wang, H.L. Guo, J. Hu, Determination of major and minor components in zirconia refractory by X-ray fluorescence spectrometry, Metallurgical Analysis. 30(2010)39-42.

Google Scholar

[6] M. West, A.T. Ellis, P.J. Potts, C. Streli, C. Vanhoof, D. Wegrzynek, P. Wobrauschek, Atomic spectrometry update. X-Ray fluorescence spectrometry, Journal of Analytical Atomic Spectrometry. 24(2009) 1289-1326.

DOI: 10.1039/b915056k

Google Scholar

[7] Pella P A, Feng L, Small J A. Addition of M- and L-series lines to NIST algorithm for calculation of X-ray tube output spectral distributions. [J] X-Ray Spectrometry, 1991, 20(3): 109-110.

DOI: 10.1002/xrs.1300200303

Google Scholar

[8] Thinh T P, Leroux J. New Basic Empirical Expression for Computing Tables of X-Ray Mass Attenuation Coefficients. [J] X-Ray Spectrometry, 1981, 8(2): 85-91.

DOI: 10.1002/xrs.1300080211

Google Scholar

[9] Pella P A, Feng L, Small J A. An analytical algorithm for calculation of spectral distributions of X-ray tubes for quantitative X-ray fluorescence analysis. [J] X-Ray Spectrometry, 1985, 14(3): 125-135.

DOI: 10.1002/xrs.1300140306

Google Scholar
