Morphological and Physical Behaviour on the Sm0.5Sr0.5CoO3-δ/Sm0.2 Ce0.8O1.9 Incorporation with Binary Carbonate as Potential Cathode Materials for SOFC

Abstract:

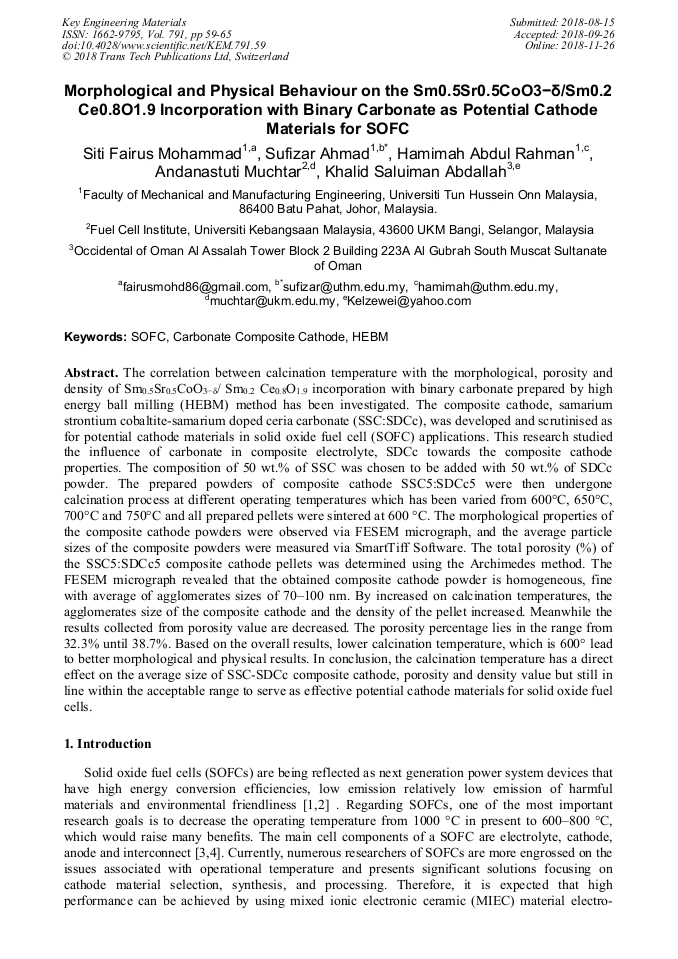

Article Preview

The correlation between calcination temperature with the morphological, porosity and density of Sm0.5Sr0.5CoO3−δ/ Sm0.2 Ce0.8O1.9 incorporation with binary carbonate prepared by high energy ball milling (HEBM) method has been investigated. The composite cathode, samarium strontium cobaltite-samarium doped ceria carbonate (SSC:SDCc), was developed and scrutinised as for potential cathode materials in solid oxide fuel cell (SOFC) applications. This research studied the influence of carbonate in composite electrolyte, SDCc towards the composite cathode properties. The composition of 50 wt.% of SSC was chosen to be added with 50 wt.% of SDCc powder. The prepared powders of composite cathode SSC5:SDCc5 were then undergone calcination process at different operating temperatures which has been varied from 600°C, 650°C, 700°C and 750°C and all prepared pellets were sintered at 600 °C. The morphological properties of the composite cathode powders were observed via FESEM micrograph, and the average particle sizes of the composite powders were measured via SmartTiff Software. The total porosity (%) of the SSC5:SDCc5 composite cathode pellets was determined using the Archimedes method. The FESEM micrograph revealed that the obtained composite cathode powder is homogeneous, fine with average of agglomerates sizes of 70–100 nm. By increased on calcination temperatures, the agglomerates size of the composite cathode and the density of the pellet increased. Meanwhile the results collected from porosity value are decreased. The porosity percentage lies in the range from 32.3% until 38.7%. Based on the overall results, lower calcination temperature, which is 600° lead to better morphological and physical results. In conclusion, the calcination temperature has a direct effect on the average size of SSC-SDCc composite cathode, porosity and density value but still in line within the acceptable range to serve as effective potential cathode materials for solid oxide fuel cells.

Info:

Periodical:

Edited by:

Al Emran Ismail, Muhamad Zaini Yunos, Reazul Haq Abdul Haq and Said Ahmad

Pages:

59-65

Citation:

S. F. Mohammad et al., "Morphological and Physical Behaviour on the Sm0.5Sr0.5CoO3-δ/Sm0.2 Ce0.8O1.9 Incorporation with Binary Carbonate as Potential Cathode Materials for SOFC", Key Engineering Materials, Vol. 791, pp. 59-65, 2018

Online since:

November 2018

Export:

Price:

$38.00

* - Corresponding Author

[1] N. Mahato, A. Banerjee, A. Gupta, S. Omar and K. Balani. Progress in material selection for solid oxide fuel cell technology: A review. Progress in Materials Science. 72(2015) 141-337.

DOI: https://doi.org/10.1016/j.pmatsci.2015.01.001

[2] J. Raharjo, A. Muchtar, W. R. Wan Daud, N. Muhamad and E. D. Y. H. Majlan. Fabrication of Porous LSCF-SDC Carbonates Composite Cathode for Solid Oxide Fuel Cell (SOFC) Applications. Key Engineering Materials 472(2011) 179–184.

DOI: https://doi.org/10.4028/www.scientific.net/kem.471-472.179

[3] B. Singh, S. Ghosh, S. Aich, and B. Roy. Low temperature solid oxide electrolytes (LT-SOE): A review. Journal of Power Sources, 339(2017) 103–135.

DOI: https://doi.org/10.1016/j.jpowsour.2016.11.019

[4] Y. P. Fu, J. Ouyang, C. H. Li and C. H. Hu. Characterization of nanosized Ce0.8Sm0.2O1.9-infiltrated Sm0.5Sr0.5Co 0.8Cu0.2O3-δ cathodes for solid oxide fuel cells. International Journal of Hydrogen Energy, 37(24) (2012) 19027–19035.

DOI: https://doi.org/10.1016/j.ijhydene.2012.09.012

[5] L. M. Acuña, J. Peña-Martínez, D. Marrero-López, R. O. Fuentes, P. Nuñez and D. G. Lamas. Electrochemical performance of nanostructured La0.6Sr0.4CoO3−δ and Sm0.5Sr0.5CoO3−δ cathodes for IT-SOFCs. Journal of Power Sources, 196(22)(2011), 9276–9283.

DOI: https://doi.org/10.1016/j.jpowsour.2011.07.067

[6] H. Z. Zhang, H. Y. Liu, Y. Cong and W. S. Yang. Investigation of SM0.5Sr0.5CoO3- δ /Co3O4 composite cathode for intermediate-temperature solid oxide fuel cells. Journal of Power Sources, 185(1)(2008), 129–135.

DOI: https://doi.org/10.1016/j.jpowsour.2008.06.038

[7] X. Wang, Y. Ma, S. Li, B. Zhu and M, Muhammed. SDC/Na2CO3 nanocomposite: New freeze drying based synthesis and application as electrolyte in low-temperature solid oxide fuel cells. International Journal of Hydrogen Energy, 37(24)(2012), 19380–19387.

DOI: https://doi.org/10.1016/j.ijhydene.2011.10.061

[8] N. A. Baharuddin. Influence of sintering temperature on the polarization resistance of La0.6Sr0.4Co0.2Fe0.8O3-δ - SDC carbonate composite cathode. Ceramics Silikaty, 60(2)(2016), 1–9.

DOI: https://doi.org/10.13168/cs.2016.0017

[9] Y. Zhang, R. Knibbe, J. Sunarso, Y. Zhong, W. Zhou, Z. Shao and Z. Zhu. Recent progress on advanced materials for solid-oxide fuel cells operating below 500 °C. Advanced Materials, (2017)1700132.

DOI: https://doi.org/10.1002/adma.201700132

[10] H. Lv, Y. Wu, B. Huang, B. Zhao and K. Hu. Structure and electrochemical properties of Sm0.5Sr0.5Co1−xFexO3−δ cathodes for solid oxide fuel cells. Solid State Ionics, 177(2006)(9–10), 901–906.

DOI: https://doi.org/10.1016/j.ssi.2006.01.038

[11] H. Z. Zhang, H. Y. Liu, Y. Cong and W. S. Yang. Investigation of Sm0.5Sr0.5CoO3-δ/Co3O4 composite cathode for intermediate-temperature solid oxide fuel cells. Journal of Power Sources, 185(1)(2008), 129–135.

DOI: https://doi.org/10.1016/j.jpowsour.2008.06.038

[12] M. Mosiałek, M. Dudek, A. Michna, M. Tatko, A. Kedra and M. Zimowska. Composite cathode materials Ag-Ba0.5Sr0.5Co0.8Fe0.2O3 for solid oxide fuel cells. Journal of Solid State Electrochemistry, (2014) 3011–3021.

DOI: https://doi.org/10.1007/s10008-014-2457-4

[13] W. Li, J. Pu, B. Chi and L. Jian. Sm0.5Sr0.5MnO3 as a potential cathode material for intermediate temperature solid oxide fuel cells. Electrochimica Acta, 141(2014) 189–194.

DOI: https://doi.org/10.1016/j.electacta.2014.07.021

[14] B. An, W. Zhou, Y. Guo, R. Ran and Z. Shao, Z. A composite oxygen-reduction electrode composed of SrSc0.2Co0.8O3−δ perovskite and Sm0.2Ce0.8O1.9 for an intermediate-temperature solid-oxide fuel cell. International Journal of Hydrogen Energy, 35(11(2010), 5601–5610.

DOI: https://doi.org/10.1016/j.ijhydene.2010.03.044

[15] H. A. Rahman, A. Muchtar, N. Muhamad and H. Abdullah. Structure and thermal properties of La0.6Sr0.4Co0.2Fe0.8O3−δ–SDC carbonate composite cathodes for intermediate- to low-temperature solid oxide fuel cells. Ceramics International, 38(2)(2012) 1571–1576.

DOI: https://doi.org/10.1016/j.ceramint.2011.09.043

[16] S. Muhammed Ali, A. Muchtar, N. Muhamad and A. B. Sulong. A review on preparation of SDC-carbonate as composite electrolyte material for intermediate temperature Solid Oxide Fuel Cells (IT-SOFC). 2011 IEEE 1st Conference on Clean Energy and Technology, CET 2011, (April),(2011)394–399.

DOI: https://doi.org/10.1109/cet.2011.6041504

[17] S. F. Mohammad, S. Ahmad, H. A. Rahman, H. A and A. Muchtar. Diversification Studies on Samarium Strontium Cobaltite Regarding Thermal & Structural Properties as Based Composite Cathode of SOFC, Materials Science Forum, 888(2017) 162–166.

DOI: https://doi.org/10.4028/www.scientific.net/msf.888.162

[18] G. Zhang, X. Dong, Z. Liu, W. Zhou, Z. Shao and W. Jin. Cobalt-site cerium doped SmxSr1-xCoO3-δ oxides as potential cathode materials for solid-oxide fuel cells. Journal of Power Sources, 195(11)(2010) 3386–3393.

DOI: https://doi.org/10.1016/j.jpowsour.2009.12.039

[19] W. Jiang, B. Wei, Z. Lv, Z. H. Wang, L. Zhu and Y. Q. Performance and stability of co-synthesized Sm0.5Sr0.5CoO3-δ-Ce0.8Sm0.2O1.9 composite oxygen electrode for solid oxide electrolysis cells. International Journal of Hydrogen Energy, 40(1)(2015) 561–567.

DOI: https://doi.org/10.1016/j.ijhydene.2014.10.128

[20] S. Yang, T. He and Q. He. Sm0.5Sr0.5CoO3 cathode material from glycine-nitrate process: Formation, characterization, and application in LaGaO3-based solid oxide fuel cells. Journal of Alloys and Compounds, 450(1–2)(2008) 400–404.

DOI: https://doi.org/10.1016/j.jallcom.2006.10.147

[21] L. Fan, Y. Wang, Z. Jia, Y. Xiong, and M. E. Brito. Nanofiber-structured SSC–GDC composite cathodes for a LSGM electrolyte based IT-SOFCs. Ceramics International, 41(5)(2015) 6583–6588.

DOI: https://doi.org/10.1016/j.ceramint.2015.01.104

[22] C.L. Chang, C. S. Hsu, J. B. Huang, P. H. Hsu and B. H. Hwang. Preparation and characterization of SOFC cathodes made of SSC nanofibers. Journal of Alloys and Compounds, 62092015) 233–239.

DOI: https://doi.org/10.1016/j.jallcom.2014.09.131

[23] K. H. Ng, S. Lidiyawati, M. R. Somalu, A. Muchtar and H. A. Rahman. Influence of Calcination on the Properties of Nickel Oxide- Samarium Doped Ceria Carbonate ( NiO-SDCC ) Composite Anodes, 19(2016)267–274.

DOI: https://doi.org/10.1016/j.proche.2016.03.104

[24] R. Scurtu, S. Somacescu, J. M. Calderon-Moreno, D. Culita, I. Bulimestru, N. Popa and P. Osiceanu. Nanocrystalline Sm0.5Sr0.5CoO3-δ synthesized using a chelating route for use in IT-SOFC cathodes: Microstructure, surface chemistry and electrical conductivity. Journal of Solid State Chemistry, 210(1)(2013) 53–59.

DOI: https://doi.org/10.1016/j.jssc.2013.10.044
