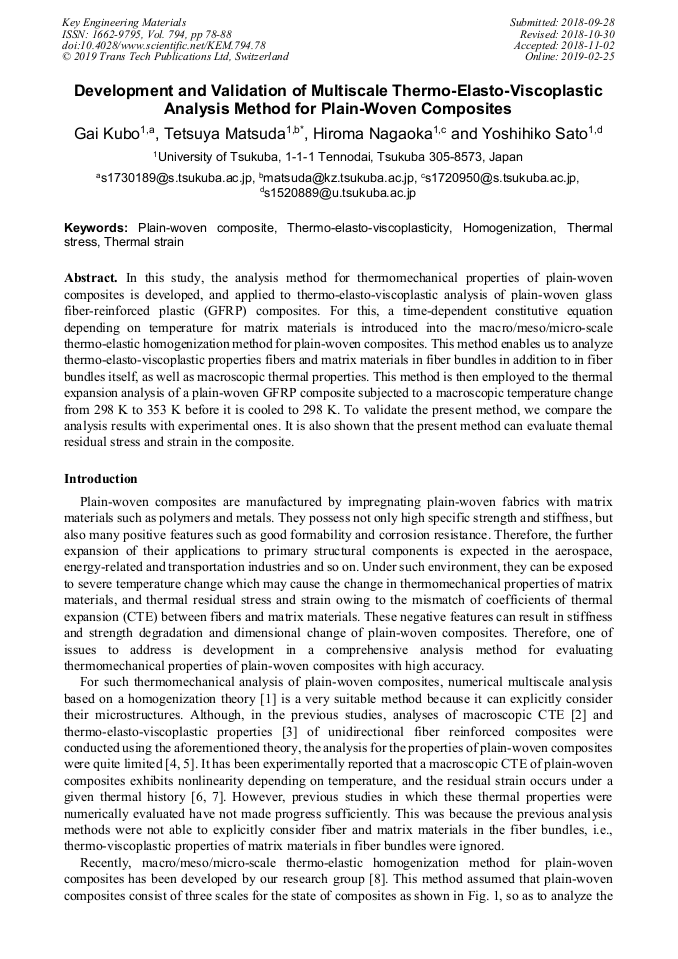

Development and Validation of Multiscale Thermo-Elasto-Viscoplastic Analysis Method for Plain-Woven Composites

Abstract:

In this study, the analysis method for thermomechanical properties of plain-woven composites is developed, and applied to thermoelastoviscoplastic analysis of plain-woven glass fiber-reinforced plastic (GFRP) composites. For this, a time-dependent constitutive equation depending on temperature for matrix materials is incorporated into the micro/meso/macro-scale thermo-elastic homogenization method for plain-woven composites developed by our research group. This method enables us to analyze thermoelastoviscoplastic properties in not only fiber bundles but also fibers and matrix materials in fiber bundles, as well as macroscopic thermal properties. This method is then applied to the thermal expansion analysis of a plain-woven GFRP composite subjected to a macroscopic temperature change from 25°C to 80°C before it is cooled to 25°C. Comparing the analysis results with experimental data, we validate the present method. It is also shown that the present method can evaluate themal residual stress and strain in the composite.

• Periodical: Key Engineering Materials (Volume 794)
• Pages: 78-88
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.794.78
• Online since: February 2019
• Authors: Gai Kubo*, Tetsuya Matsuda, Hiroma Nagaoka, Yoshihiko Sato
• Keywords: Homogenization, Plain-Woven Composite, Thermal Strain, Thermal Stress, Thermo-Elasto-Viscoplasticity

References

[1] P. Suquet, Elements of homogenization for inelastic solid mechanics, In: E. Sanchez-Palencia, A. Zaoui, (Eds.), Homogenization Techniques for Composite Media, Lecture Notes in Physics, No. 272, Springer-Verlag, Berlin, (1980).

DOI: 10.1007/3-540-17616-0

[2] Y. M. Shabana and N. Noda, Int. J. Solids and Struct., Numerical evaluation of the thermomechanical effective properties of a functionally graded material using the homogenization method, 45 (2008), 3494-3506.

DOI: 10.1016/j.ijsolstr.2008.02.012

[3] K. Goto, N. Nogawa, M. Arai and T.Matsuda, Evaluation of thermo-elasto-viscoplastic properties of unidirectional cfrtp based on homogenization theory, Tran. JASCOME, 16 (2016), 25-161202 (in japanese).

DOI: 10.1299/jsmemm.2017.os1002

[4] A. Dasgupta, R. K. Agrwal and S. M. Bhandarkar, Three-dimensional modeling of woven-fabric composites for effective thermo-mechanical and thermal properties, Compos. Sci. Technol., 56 (1996), 209-223.

DOI: 10.1016/0266-3538(95)00111-5

[5] O. E. Seifert, S. C. Schumacher and C. Hansen, Viscoelastic properties of a glass fabric composite at elevated temperatures: experimental and numerical results, Compos. Pt. B Eng., 34 (2003), 571-586.

DOI: 10.1016/s1359-8368(03)00078-7

[6] K. F. Rogers, D. M. Kingston-Lee, L. N. Phillips, B. Yates, M. Chandra and S. F. H. Parker, The thermal expansion of carbon-fibre reinforced plastics, J. Mat. Sci., 16 (1981), 2803-2818.

DOI: 10.1007/bf02402845

[7] J. Korab, P. Stefanik, S. Kavecky, P. Sebo and G. Korb, Thermal conductivity of unidirectional copper matrix carbon fibre composites, Compos. Pt. A Appl. Sci. Manuf., 33 (2002), 577-581.

DOI: 10.1016/s1359-835x(02)00003-9

[8] Y. Sato and T. Matsuda, Evaluation of micro/meso/macro thermal properties of plain-woven laminates, Key Eng. Mat., 725 (2017), 439-444.

DOI: 10.4028/www.scientific.net/kem.725.439

[9] N. Ohno, X. Wu and T. Matsuda, Homogenized properties of elastic-viscoplastic composites with periodic internal structures, Int. J. Mech. Sci., 42 (2000), 1519-1536.

DOI: 10.1016/s0020-7403(99)00088-0

[10] N. Ohno, T. Matsuda and X. Wu, A homogenization theory for elastic-viscoplastic composites with point symmetry of internal distributions, Int. J. Solids Struct., 38 (2001), 2867-2878.

DOI: 10.1016/s0020-7683(00)00188-8

[11] G. Kubo, T. Matsuda and Y. Sato, A novel basic cell modeling method for elastic-viscoplastic homogenization analysis of plain-woven laminates with nesting, Int. J. Mech. Sci.,42 (2018), 1519-1536.

DOI: 10.1016/j.ijmecsci.2018.01.007

[12] N. Ohno, D. Okumura and H. Noguchi, Microscopic symmetric bifurcation condition of cellular solids based on a homogenization theory of finite deformation, J. Mech. Phy. Solids, 50, (2002), 1125-1153.

DOI: 10.1016/s0022-5096(01)00106-5

[13] L. Yang, Y. Yan, J. Ma and B.Liu, Effects of inter-fiber spacing and thermal residual stress on transverse failure of fiber-reinforced polymer–matrix composites, Comp. Mat. Sci., 68 (2013), 255-262.

DOI: 10.1016/j.commatsci.2012.09.027

[14] T. Matsuda, Y. Nimiya, N. Ohno and M. Tokuda, Elastic-viscoplastic behavior of plain-woven GFRP laminates: Homogenization using reduced domain of analysis, Compos. Struct.,79 (2007), 493-500.

DOI: 10.1016/j.compstruct.2006.02.008

[15] H. Wang, M. Cao, A. Siddique, B. Sun and B. Gu, Numerical analysis of thermal expansion behaviors and interfacialthermal stress of 3D braided composite materials, Comp. Mat. Sci., 138 (2017) 77–91.

DOI: 10.1016/j.commatsci.2017.06.023
