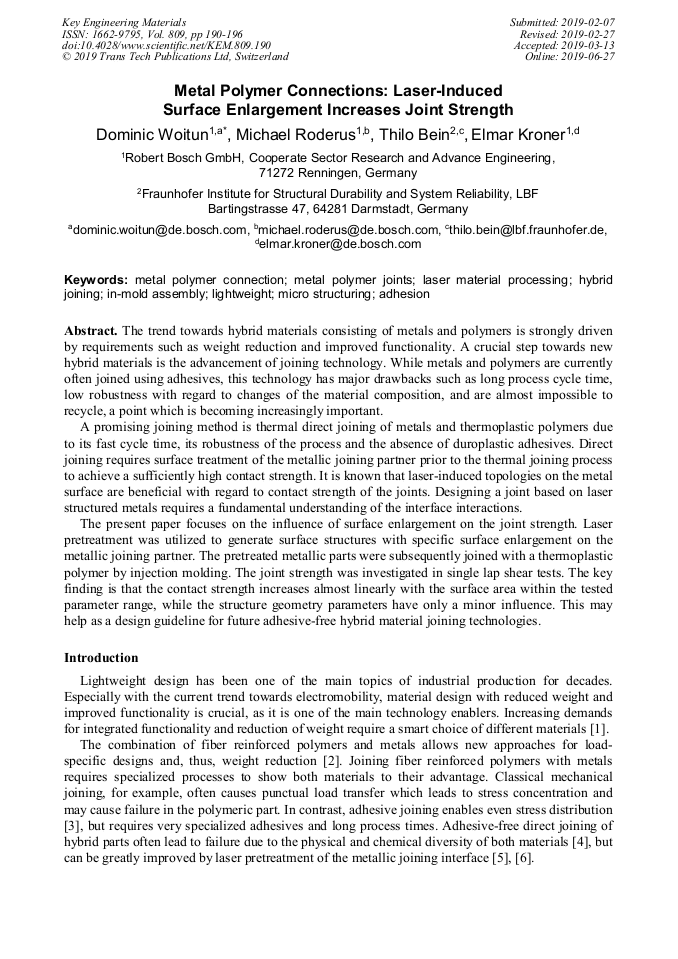

Metal Polymer Connections: Laser-Induced Surface Enlargement Increases Joint Strength

Abstract:

The trend towards hybrid materials consisting of metals and polymers is strongly driven by requirements such as weight reduction and improved functionality. A crucial step towards new hybrid materials is the advancement of joining technology. While metals and polymers are currently often joined using adhesives, this technology has major drawbacks such as long process cycle time, low robustness with regard to changes of the material composition, and are almost impossible to recycle, a point which is becoming increasingly important. A promising joining method is thermal direct joining of metals and thermoplastic polymers due to its fast cycle time, its robustness of the process and the absence of duroplastic adhesives. Direct joining requires surface treatment of the metallic joining partner prior to the thermal joining process to achieve a sufficiently high contact strength. It is known that laser-induced topologies on the metal surface are beneficial with regard to contact strength of the joints. Designing a joint based on laser structured metals requires a fundamental understanding of the interface interactions. The present paper focuses on the influence of surface enlargement on the joint strength. Laser pretreatment was utilized to generate surface structures with specific surface enlargement on the metallic joining partner. The pretreated metallic parts were subsequently joined with a thermoplastic polymer by injection molding. The joint strength was investigated in single lap shear tests. The key finding is that the contact strength increases almost linearly with the surface area within the tested parameter range, while the structure geometry parameters have only a minor influence. This may help as a design guideline for future adhesive-free hybrid material joining technologies.

• Periodical: Key Engineering Materials (Volume 809)
• Pages: 190-196
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.809.190
• Online since: June 2019
• Authors: Dominic Woitun*, Michael Roderus, Thilo Bein, Elmar Kroner
• Keywords: Adhesion, Hybrid Joining, In-Mold Assembly, Laser Material Processing, Lightweight, Metal Polymer Connection, Metal Polymer Joints, Micro Structuring

References

[1] J. P. Bergmann und M. Stambke, Potential of Laser-manufactured Polymer-metal hybrid Joints,, Phys. Procedia, Bd. 39, S. 84–91, (2012).

DOI: 10.1016/j.phpro.2012.10.017

[2] K. van der Straeten, A. Olowinsky, und A. Gillner, Laser-based plastic-metal-joining with self-organizing microstructures considering different load directions,, J. Laser Appl., Bd. 30, Nr. 3, S. 032401, Aug. (2018).

DOI: 10.2351/1.5040616

[3] A. J. Kinloch, Adhesion and Adhesives. Dordrecht: Springer Netherlands, (1987).

[4] H. Ridder und J. Schneiders, Hybridspritzgießen - Möglichkeiten und Grenzen,, VDI Verl., Bd. Tagungsband zur Tagung Spritzgießen 2007, S. (2007).

[5] M.-L. Kohl, K. Schricker, J. P. Bergmann, M. Lohse, M. Hertel, und U. Füssel, Thermal joining of thermoplastics to metals: Surface preparation of steel based on laser radiation and tungsten inert gas arc process,, Procedia CIRP, Bd. 74, S. 500–505, (2018).

DOI: 10.1016/j.procir.2018.08.135

[6] P. Amend, S. Pfindel, und M. Schmidt, Thermal Joining of Thermoplastic Metal Hybrids by Means of Mono- and Polychromatic Radiation,, Phys. Procedia, Bd. 41, S. 98–105, (2013).

DOI: 10.1016/j.phpro.2013.03.056

[7] A. Rösner, Laserbasiertes Fügeverfahren zur Herstellung von Kunststoff-Metall-Hybridbauteilen,, Dissertation, Fraunhofer-Verl, Stuttgart, (2014).

[8] K. van der Straeten und C. Engelmann, Laserbasierte Fügeverfahren: Photonik im Leichtbau,, Lightweight Des., Bd. 8, Nr. 2, S. 10–15, Apr. (2015).

DOI: 10.1007/s35725-015-0014-4

[9] C. Engelmann, J. Eckstaedt, A. Olowinsky, M. Aden, und V. Mamuschkin, Experimental and Simulative Investigations of Laser Assisted Plastic-metal-joints Considering Different Load Directions,, Phys. Procedia, Bd. 83, S. 1118–1129, (2016).

DOI: 10.1016/j.phpro.2016.08.117

[10] E. Rodríguez-Vidal, C. Sanz, C. Soriano, J. Leunda, und G. Verhaeghe, Effect of metal micro-structuring on the mechanical behavior of polymer–metal laser T-joints,, J. Mater. Process. Technol., Bd. 229, S. 668–677, März (2016).

DOI: 10.1016/j.jmatprotec.2015.10.026

[11] W.-S. Kim, I.-H. Yun, J.-J. Lee, und H.-T. Jung, Evaluation of mechanical interlock effect on adhesion strength of polymer–metal interfaces using micro-patterned surface topography,, Int. J. Adhes. Adhes., Bd. 30, Nr. 6, S. 408–417, Sep. (2010).

DOI: 10.1016/j.ijadhadh.2010.05.004

[12] P. Amend, C. Mohr, und S. Roth, Experimental Investigations of Thermal Joining of Polyamide Aluminum Hybrids Using a Combination of Mono- and Polychromatic Radiation,, Phys. Procedia, Bd. 56, S. 824–834, (2014).

DOI: 10.1016/j.phpro.2014.08.098

[13] K. Taki, S. Nakamura, T. Takayama, A. Nemoto, und H. Ito, Direct joining of a laser-ablated metal surface and polymers by precise injection molding,, Microsyst. Technol., Bd. 22, Nr. 1, S. 31–38, Jan. (2016).

DOI: 10.1007/s00542-015-2640-2

[14] DIN EN 1465:2009-07, Adhesives - Determination of tensile lap-shear strength of bonded assemblies; German version EN 1465:2009,.

DOI: 10.3403/30180285
