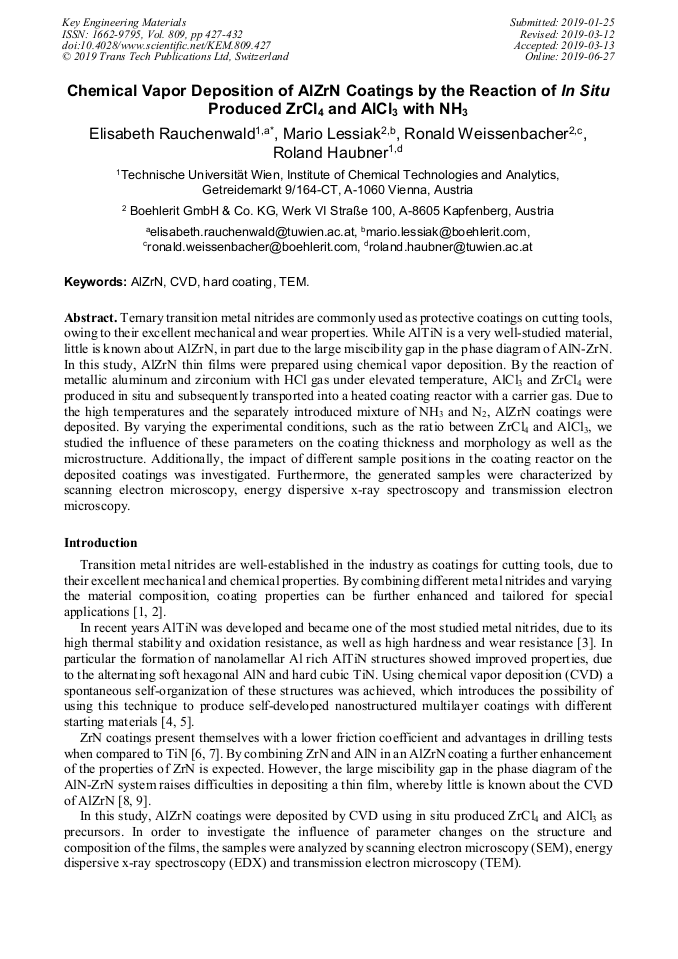

Chemical Vapor Deposition of AlZrN Coatings by the Reaction of In Situ Produced ZrCl₄ and AlCl₃ with NH₃

Abstract:

Ternary transition metal nitrides are commonly used as protective coatings on cutting tools, owing to their excellent mechanical and wear properties. While AlTiN is a very well-studied material, little is known about AlZrN, in part due to the large miscibility gap in the phase diagram of AlN-ZrN. In this study, AlZrN thin films were prepared using chemical vapor deposition. By the reaction of metallic aluminum and zirconium with HCl gas under elevated temperature, AlCl₃ and ZrCl₄ were produced in situ and subsequently transported into a heated coating reactor with a carrier gas. Due to the high temperatures and the separately introduced mixture of NH₃ and N₂, AlZrN coatings were deposited. By varying the experimental conditions, such as the ratio between ZrCl₄ and AlCl₃, we studied the influence of these parameters on the coating thickness and morphology as well as the microstructure. Additionally, the impact of different sample positions in the coating reactor on the deposited coatings was investigated. Furthermore, the generated samples were characterized by scanning electron microscopy, energy dispersive x-ray spectroscopy and transmission electron microscopy.

• Periodical: Key Engineering Materials (Volume 809)
• Pages: 427-432
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.809.427
• Online since: June 2019
• Authors: Elisabeth Rauchenwald*, Mario Lessiak, Ronald Weissenbacher, Roland Haubner
• Keywords: AlZrN, CVD, Hard Coating, TEM

References

[1] D. Li, Y. Kang, L. Dong, X. Deng, H. Liu and X. Sun, Influence of modulation ratio on structure and properties of nanoscale ZrB2/ZrAlN multilayered coatings,, Science China Technological Sciences, vol. 53, pp.772-775, (2010).

DOI: 10.1007/s11431-009-0241-y

[2] G. Xian, H. Zhao, H. Fan, H. Wang and H. Du, The structure and properties of ZrAl(Y)N coatings deposited at various N2/Ar flow ratios,, International Journal of Refractory Metals and Hard Materials, vol. 44, pp.60-67, (2014).

DOI: 10.1016/j.ijrmhm.2014.01.014

[3] J. Todt, R. Pitonak, A. Köpf, R. Weißenbacher, B. Sartory, M. Burghammer, R. Daniel, T. Schöberl and J. Keckes, Superior oxidation resistance, mechanical properties and residual stresses of an Al-rich nanolamellar Ti0. 05Al0. 95N coating prepared by CVD,, Surface and Coatings Technology, vol. 258, pp.1119-1127, (2014).

DOI: 10.1016/j.surfcoat.2014.07.022

[4] J. Todt, J. Zalesak, R. Daniel, R. Pitonak, A. Köpf, R. Weißenbacher, B. Sartory, C. Mitterer and J. Keckes, Al-rich cubic Al0. 8Ti0. 2N coating with self-organized nano-lamellar microstructure: Thermal and mechanical properties,, Surface and Coatings Technology, vol. 291, pp.89-93, (2016).

DOI: 10.1016/j.surfcoat.2016.02.027

[5] J. Keckes, R. Daniel, C. Mitterer, I. Matko, B. Sartory, A. Köpf, R. Weißenbacher and R. Pitonak, Self-organized periodic soft-hard nanolamellae in polycrystalline TiAlN thin films,, Thin solid films, vol. 545, pp.29-32, (2013).

DOI: 10.1016/j.tsf.2013.08.001

[6] J. J. Araiza and O. Sanchez, Influence of aluminium incorporation on the structure of ZrN films deposited at low temperatures,, Journal of Physics D: Applied Physics, vol. 42, p.115422, (2009).

DOI: 10.1088/0022-3727/42/11/115422

[7] D. Holec, R. Rachbauer, L. Chen, L. Wang, D. Luef and P. H. Mayrhofer, Phase stability and alloy-related trends in Ti-Al-N, Zr-Al-N and Hf-Al-N systems from first principles,, Surface and Coatings Technology, vol. 206, pp.1698-1704, (2011).

DOI: 10.1016/j.surfcoat.2011.09.019

[8] L. Rogström, M. P. Johansson, N. Ghafoor, L. Hultman and M. Odén, Influence of chemical composition and deposition conditions on microstructure evolution during annealing of arc evaporated ZrAlN thin films,, Journal of Vacuum Science \& Technology A: Vacuum, Surfaces, and Films, vol. 30, p.031504, (2012).

DOI: 10.1116/1.3698592

[9] L. Rogström, M. P. Johansson-Joesaar, L. Landälv, M. Ahlgren and M. Odén, Wear behavior of ZrAlN coated cutting tools during turning,, Surface and Coatings Technology, vol. 282, pp.180-187, (2015).

DOI: 10.1016/j.surfcoat.2015.10.029

[10] E. Rauchenwald, M. Lessiak, R. Weissenbacher und R. Haubner, Chemical vapor deposition of ZrN using in situ produced ZrCl4 as a precursor,, Ceramics International, (2018).

DOI: 10.1016/j.ceramint.2018.08.191
