Tribological Properties of Multi-Layer a-C:H:W/a-C:H PVD-Coatings Micro-Structured by Picosecond Laser Ablation

Abstract:

An increase of the service life of tribological systems subjected to dynamic-mechanical loads is important for numerous mechanical applications. The present study deals with the impact of several micro-structured surface topographies of graded Cr/CrN_x/(Cr,W)C_y/a-C:H:W/a-C:H PVD hard coatings on their friction and wear behavior. The coatings were applied by reactive magnetron sputtering on a hardened 1.2379 steel substrates and subsequently micro-structured by laser ablation using a picosecond laser. Pin-on-disc tests were carried out against aluminum under both oil lubrication and dry conditions. The diameters of the micro-dimples were varied between 50 μm, 100 μm and 150 μm at a constant degree of coating coverage of about 60 %. The coefficients of friction and wear were determined after 20,000 cycles by confocal laser-scanning microscope (CLSM), scanning electron microscopy (SEM) and by energy-dispersive X-ray spectroscopy (EDX) to analyze possible transfer layer formations.

You might also be interested in these eBooks

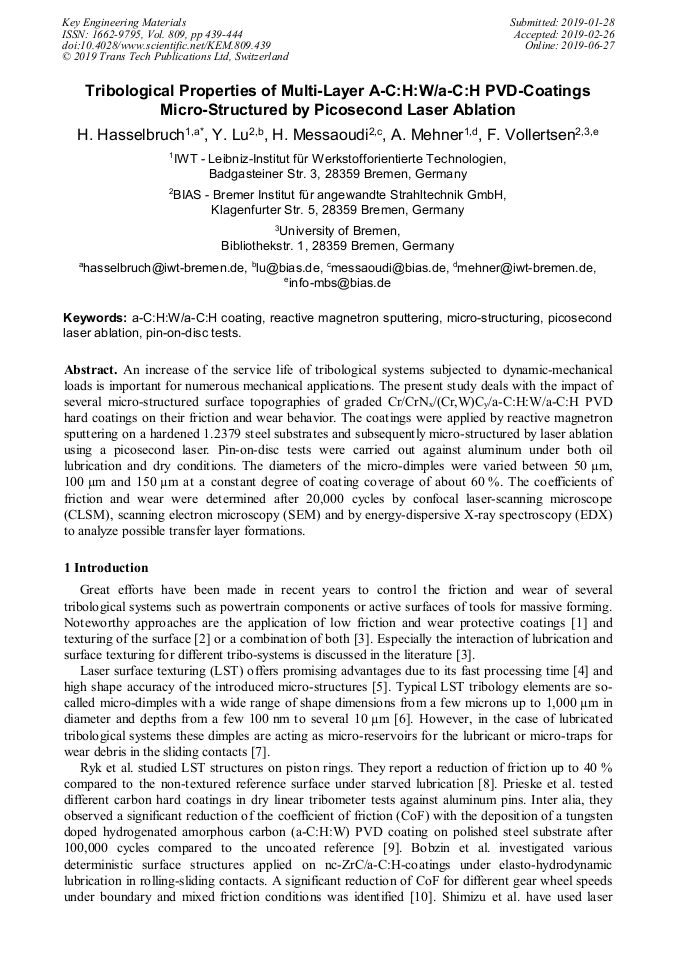

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 809)

Pages:

439-444

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.809.439

Citation:

Cite this paper

Online since:

June 2019

Authors:

Henning Hasselbruch*, Y. Lu, H. Messaoudi, Andreas Mehner, Frank Vollertsen

Keywords:

a-C:H:W/a-C:H Coating, Micro-Structuring, Picosecond Laser Ablation, Pin-on-Disc Tests, Reactive Magnetron Sputtering

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] H. Hasselbruch, M. Herrmann, A. Mehner, B. Kuhfuss, H.-W. Zoch, Incremental dry forging – Interaction of W-DLC coatings and surface structures for dry rotary swaging tools, Procedia Manufacturing 8 (2017), 541-548.

DOI: 10.1016/j.promfg.2017.02.069

Google Scholar

[2] I. Etsion, E. Sher, Improving fuel efficiency with laser surface textured piston rings, Tribology International 42 (2009), 542-547.

DOI: 10.1016/j.triboint.2008.02.015

Google Scholar

[3] A. A. Veovedin, J. S. Zabinski, Laser surface texturing for adaptive solid lubrication, Wear 261 (2006), 1285-1292.

DOI: 10.1016/j.wear.2006.03.013

Google Scholar

[4] I. Etison, State of the Art in Laser Surface Texturing, Journal of Tribology 127 (2005), 248-253.

Google Scholar

[5] G. Ryk, I. Etsion, Testing piston rings with partial laser surface texturing for friction reduction, Wear 261 (2006), 792–796.

DOI: 10.1016/j.wear.2006.01.031

Google Scholar

[6] G. Dumitru, Laser Processing of Tribological DLC Films: An Overview, in: C. Donnet and A. Erdemir, Tribology of Diamond-Like Carbon Films: Fundamentals and Applications, Springer, New York, 2008, 571-590.

DOI: 10.1007/978-0-387-49891-1_22

Google Scholar

[7] A. Kovalchenko, O.O. Ajayi, A. Erdemir, G. Fenske, I. Etsion, The effect of laser surface texturing on transitions in lubrication regimes during unidirectional sliding contact, Tribology International 38 (2005), 219–225.

DOI: 10.1016/j.triboint.2004.08.004

Google Scholar

[8] G. Ryk, Y. Kligerman, I. Etsion, A. Shinkarenko, Experimental investigation of partial laser surface texturing for piston-ring friction reduction, Tribology Transactions 48 (2005), 583–588.

DOI: 10.1080/05698190500313544

Google Scholar

[9] M. Priekse, H. Hasselbruch, A. Mehner, F. Vollertsen, Friction and wear performance of different carbon coatings for use in dry aluminium forming processes, Surface and Coatings Technology 357 (2019), 1048-1059.

DOI: 10.1016/j.surfcoat.2018.10.103

Google Scholar

[10] K. Bobzin, T. Brögelmann, K. Stahl, K. Michaelis, J. Mayer, M. Hinterstoißer, Friction reduction of highly-loaded rolling-sliding contacts by surface modifactions under elasto-hydrodynamic lubrication, Wear 328-329 (2015), 217-228.

DOI: 10.1016/j.wear.2015.02.033

Google Scholar

[11] T. Shimizu, H. Kan, H. Messaoudi, F. Vollertsen, M. Yang, Geometrical design of micro-textured DLC coatings toward lubricant-free metal forming, MATEC Web of Conferences 190 (2018), https://doi.org/10.1051/matecconf/201819013001, 1-5.

DOI: 10.1051/matecconf/201819013001

Google Scholar
