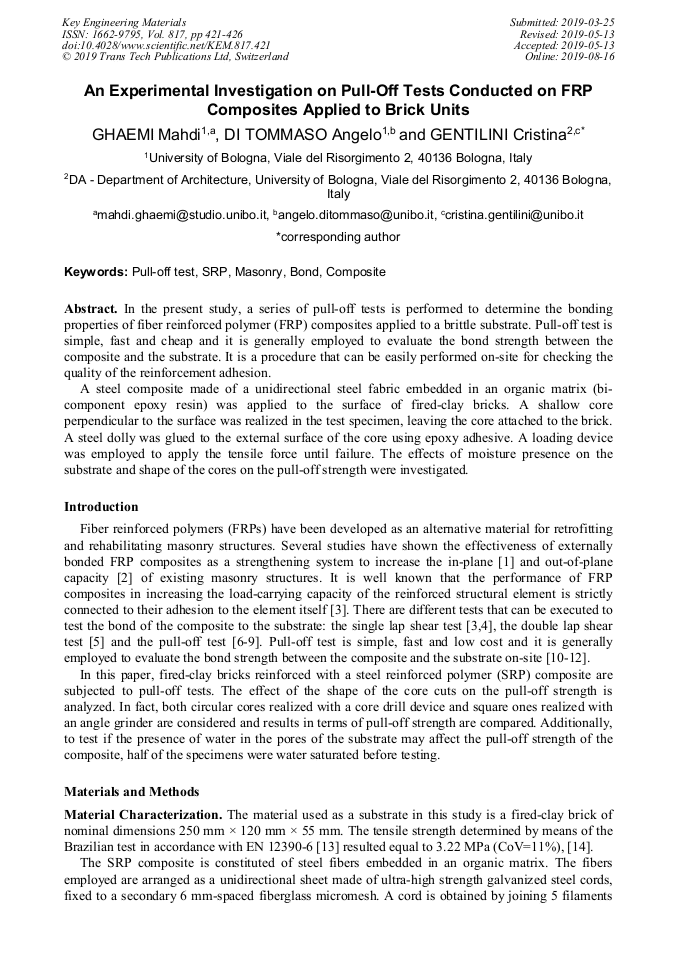

An Experimental Investigation on Pull-Off Tests Conducted on FRP Composites Applied to Brick Units

Abstract:

In the present study, a series of pull-off tests is performed to determine the bonding properties of fiber reinforced polymer (FRP) composites applied to a brittle substrate. Pull-off test is simple, fast and cheap and it is generally employed to evaluate the bond strength between the composite and the substrate. It is a procedure that can be easily performed on-site for checking the quality of the reinforcement adhesion.A steel composite made of a unidirectional steel fabric embedded in an organic matrix (bi-component epoxy resin) was applied to the surface of fired-clay bricks. A shallow core perpendicular to the surface was realized in the test specimen, leaving the core attached to the brick. A steel dolly was glued to the external surface of the core using epoxy adhesive. A loading device was employed to apply the tensile force until failure. The effects of moisture presence on the substrate and shape of the cores on the pull-off strength were investigated.

• Periodical: Key Engineering Materials (Volume 817)
• Pages: 421-426
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.817.421
• Online since: August 2019
• Authors: Mahdi Ghaemi, Angelo Di Tommaso, Cristina Gentilini*
• Keywords: Bond, Composites, Masonry, Pull-Off Test, SRP

References

[1] Reboul, N., Mesticou, Z., Si Larbi, A., Ferrier, E. Experimental study of the in-plane cyclic behaviour of masonry walls strengthened by composite materials. Construction and Building Materials 164 (2018) 70-83.

DOI: 10.1016/j.conbuildmat.2017.12.215

[2] Minafò, G., Cucchiara, C., Monaco, A., La Mendola, L. Effect of FRP strengthening on the flexural behaviour of calcarenite masonry walls. Bulletin of Earthquake Engineering 15 (2017) 3777-3795.

DOI: 10.1007/s10518-017-0112-z

[3] Gentilini, C., Franzoni, E., Santandrea, M., Carloni, C. Salt-induced deterioration on FRP-brick masonry bond. RILEM Bookseries 18 (2019) 1914-1921.

DOI: 10.1007/978-3-319-99441-3_205

[4] D'Altri, A. M., Carloni, C., Miranda, S. D., Castellazzi, G. Numerical modeling of FRP strips bonded to a masonry substrate. Composite Structures 200 (2018) 420-433.

DOI: 10.1016/j.compstruct.2018.05.119

[5] Askouni, P.D., Papanicolaou, C.C.G. Comparison of double-lap/double-prism and single-lap/single-prism shear tests for the TRM-to-masonry bond assessment, RILEM Bookseries 15 (2018) 527-534.

DOI: 10.1007/978-94-024-1194-2_61

[6] Maljaee, H., Ghiassi, B., Lourenço, P., Oliveira, D. FRP–brick masonry bond degradation under hygrothermal conditions. Composite Structures, 147 (2016) 143-154.

DOI: 10.1016/j.compstruct.2016.03.037

[7] Ebead, U., Adel Y. Pull-off characterization of FRCM/Concrete interface. Composites Part B: Engineering 165 (2019) 545–553.

DOI: 10.1016/j.compositesb.2019.02.025

[8] Carozzi, F. G., Poggi, C. Mechanical properties and debonding strength of Fabric Reinforced Cementitious Matrix (FRCM) systems for masonry strengthening. Composites Part B: Engineering 70 (2015) 215-230.

DOI: 10.1016/j.compositesb.2014.10.056

[9] Ghiassi, B., Oliveira, D. V., Lourenço, P. B., Marcari, G. Numerical study of the role of mortar joints in the bond behavior of FRP-strengthened masonry. Composites Part B: Engineering 46 (2013) 21-30.

DOI: 10.1016/j.compositesb.2012.10.017

[10] CNR-DT 215/2018. Istruzioni per la progettazione, l'esecuzione ed il controllo di interventi di consolidamento statico mediante l'utilizzo di compositi fibrorinforzati a matrice inorganica.

[11] EN 1542:1999. Products and systems for the protection and repair of concrete structures. Test methods. Measurement of bond strength by pull-off.

DOI: 10.3403/01706822u

[12] ASTM C1583/C1583M-13. Test method for tensile strength of concrete surfaces and the bond strength or tensile strength of concrete repair and overlay materials by direct tension (pull-off method).

DOI: 10.1520/c1583_c1583m-20

[13] EN 12390-6:2009 Testing hardened concrete. Tensile splitting strength of test specimens.

DOI: 10.3403/02128962

[14] M. Baldassari. Energia di Frattura (GF) per Modo-I di Laterizi e Pietre Naturali, [Dissertation thesis in Italian], University of Bologna, Bachelor program in Building Engineering, (2016).

[15] http://products.kerakoll.com/catalogo_dett.asp?idp=7590 GeoSteel G600.

[16] http://products.kerakoll.com/catalogo_dett.asp?idp=7586 Geolite Gel.

[17] Franzoni, E., Gentilini, C., Graziani, G., Bandini, S. Compressive behaviour of brick masonry triplets in wet and dry conditions. Construction and Building Materials 82 (2015) 45-52.

DOI: 10.1016/j.conbuildmat.2015.02.052
