HomeKey Engineering MaterialsKey Engineering Materials Vol. 822Aspect-Independent Siliconglass Etching by Bosch...

Aspect-Independent Siliconglass Etching by Bosch Method

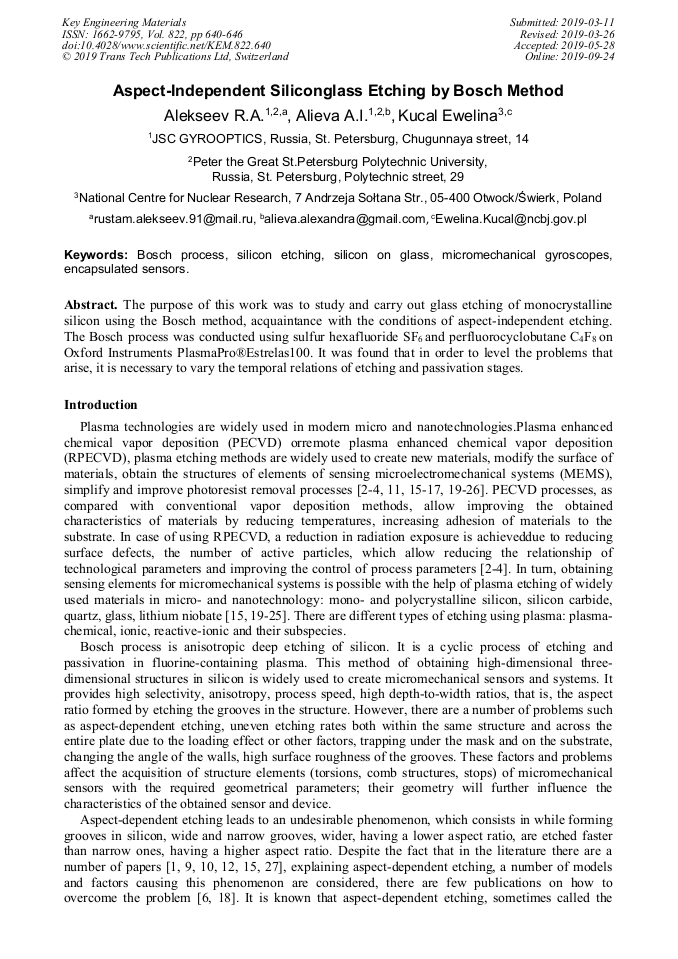

Article Preview

Abstract:

The purpose of this work was to study and carry out glass etching of monocrystalline silicon using the Bosch method, acquaintance with the conditions of aspect-independent etching. The Bosch process was conducted using sulfur hexafluorideSF₆and perfluorocyclobutaneC₄F₈on OxfordInstrumentsPlasmaPro®Estrelas100. It was found that in order to level the problems that arise, it is necessary to vary the temporal relations of etching and passivation stages.

You might also be interested in these eBooks

New Materials and Technologies in Mechanical Engineering

Info:

Periodical:

Key Engineering Materials (Volume 822)

Pages:

640-646

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.822.640

Citation:

Cite this paper

Online since:

September 2019

Authors:

R.A. Alekseev*, Aleksandra I. Alieva, Ewelina Kucal

Keywords:

Bosch Process, Encapsulated Sensors, Micromechanical Gyroscopes, Silicon Etching, Silicon on Glass
