For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Two Experimental Approaches for Investigation of Nonlinear Elastic Properties of Polymers and Polymer-Based Composites
p.61
Compressive Strength Prediction of Quad-Diametral Lattice Structures
p.69
Design of Injection Mold from Plastic Material
p.75
Relaxation-Compression Resin Transfer Molding under Magnetic Field
p.81
Effect of Shear Stress on Viscosity and Crystallization Behavior of CaO-SiO2-Al2O3 Based Mold Fluxes
p.87
Iron/Sulfur Co-Doped Titanium Dioxide Nanotubes: Optimization of the Photoelectrocatalytic Degradation of Phenol Red under Visible Light
p.95
Development of Copper Loaded Nanoparticles Hydrogel Made from Waste Biomass (Sugarcane Bagasse) for Special Medical Application
p.102
Effect of Surface Modification on Multi-Walled Carbon Nanotubes and their Reinforced Nylon Composites
p.108
Natural Convection in a Nano-Fluid Filled Square Enclosure
p.114

Effect of Shear Stress on Viscosity and Crystallization Behavior of CaO-SiO2-Al2O3 Based Mold Fluxes

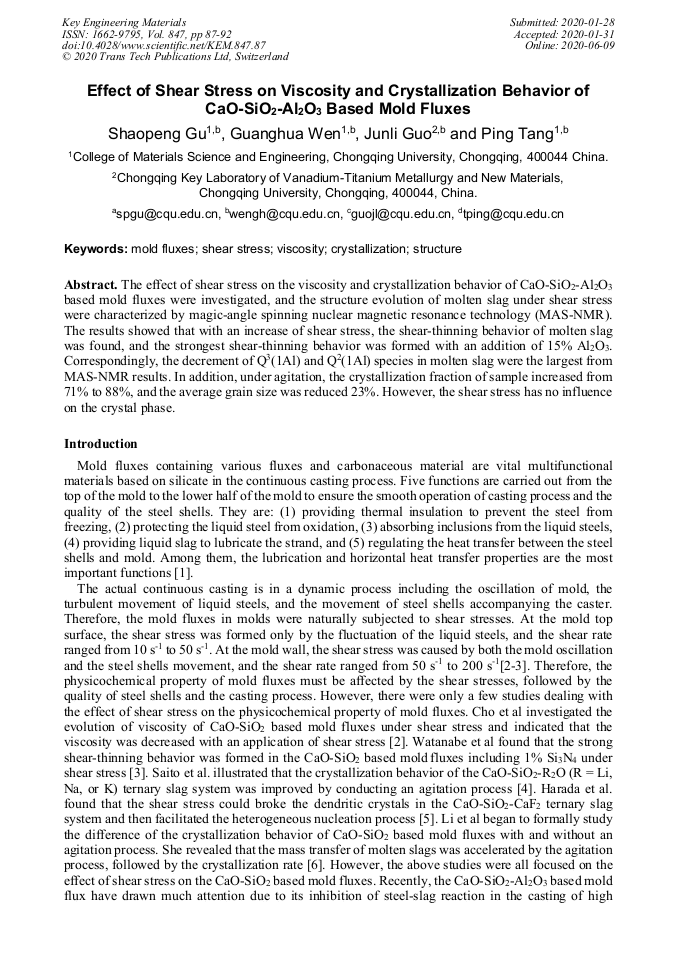

Article Preview

Abstract:

The effect of shear stress on the viscosity and crystallization behavior of CaO-SiO2-Al2O3 based mold fluxes were investigated, and the structure evolution of molten slag under shear stress were characterized by magic-angle spinning nuclear magnetic resonance technology (MAS-NMR). The results showed that with an increase of shear stress, the shear-thinning behavior of molten slag was found, and the strongest shear-thinning behavior was formed with an addition of 15% Al2O3. Correspondingly, the decrement of Q3(1Al) and Q2(1Al) species in molten slag were the largest from MAS-NMR results. In addition, under agitation, the crystallization fraction of sample increased from 71% to 88%, and the average grain size was reduced 23%. However, the shear stress has no influence on the crystal phase.

You might also be interested in these eBooks
Composite Materials and Material Engineering IV View Preview

Info:

Periodical:

Key Engineering Materials (Volume 847)

Pages:

87-92

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.847.87

Citation:

Cite this paper

Online since:

June 2020

Authors:

Shao Peng Gu*, Guang Hua Wen, Jun Li Guo, Ping Tang

Keywords:

Crystallization, Mold Fluxes, Shear Stress, Structure, Viscosity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2020 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] K.C. Mills: Isij Int., Vol. 56 (2016), p.1.

Google Scholar

[2] S. Shin, J. Cho and S. Kim: J. Am. Ceram. Soc., 97 (2015), p.3263.

Google Scholar

[3] K. Watanabe, K. Tsutsumi and M. Suzuki: Isij Int., 54(2014), p.865.

Google Scholar

[4] N. Saito, Kusada K. and S. Sukenaga: Trans. Iron Steel Inst. Jpn., 52 (2012), p.2123.

Google Scholar

[5] Y. Harada, K. Kusada and S. Sukenaga: Isij Int., 54 (2014), p. (2071).

Google Scholar

[6] J.L. Li, Q.F. Shu and K.Z. Chou: Metall Mater Trans B., 46 (2015), p.1555.

Google Scholar

[7] V.I. Bolshakov, М.O. Yelisieieva and S.A. Shcherbак: Int. J. Mater. Mech. Manuf., 53 (2014), p.138.

Google Scholar

[8] S. Sukenaga, N. Saito and K. Kawakami: Isij Int., 46 (2006), p.352.

Google Scholar

[9] Z.J. Wang and I.L. Sohn: Ceram. Int., (2019).

Google Scholar

[10] J.X. Gao, G.H. Wen and T. Huang: J. Non-Cryst. Solids., 452 (2016), p.119.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
