Study on Simulation of Injection Process and Optimization of Process Parameters of Polypropylene Bottle Embryo

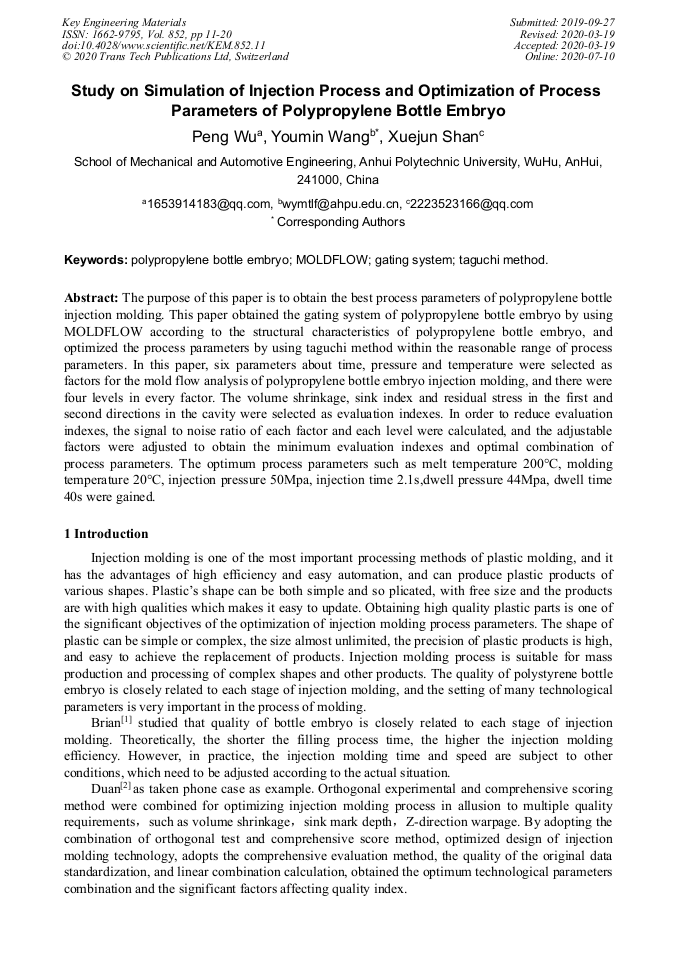

Abstract:

The purpose of this paper is to obtain the best process parameters of polypropylene bottle injection molding. This paper obtained the gating system of polypropylene bottle embryo by using MOLDFLOW according to the structural characteristics of polypropylene bottle embryo, and optimized the process parameters by using taguchi method within the reasonable range of process parameters. In this paper, six parameters about time, pressure and temperature were selected as factors for the mold flow analysis of polypropylene bottle embryo injection molding, and there were four levels in every factor. The volume shrinkage, sink index and residual stress in the first and second directions in the cavity were selected as evaluation indexes. In order to reduce evaluation indexes, the signal to noise ratio of each factor and each level were calculated, and the adjustable factors were adjusted to obtain the minimum evaluation indexes and optimal combination of process parameters. The optimum process parameters such as melt temperature 200°C, molding temperature 20°C, injection pressure 50Mpa, injection time 2.1s,dwell pressure 44Mpa, dwell time 40s were gained.

• Periodical: Key Engineering Materials (Volume 852)
• Pages: 11-20
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.852.11
• Online since: July 2020
• Authors: Peng Wu, You Ming Wang*, Xue Jun Shan
• Keywords: Gating System, MOLDFLOW, Polypropylene Bottle Embryo, Taguchi Method

References

[1] Brian Carpenter, Sachin Patil, Rebecca Hoffman, Blaine Lilly, Jose Castro. Effect of machine compliance on mold deflection during injection and packing of thermoplastic parts[J]. Polymer Engineering & Science,2006,46(7).

DOI: 10.1002/pen.20527

[2] Duan J X. Multi-Objective Optimization of Injection Molding Process by Orthogonal Test and Comprehensive Scoring[J]. Plastic Industry, 2018,46(07):66-69+91.

[3] Kuang Y. Performance Change Analysis based on Polypropylene Injection Molding Process [J]. Mechanical Engineer,2016(08):151-153.

[4] Xu Chunlin, Zhou Jianwen. Mold Design and Process Optimization for Auto Clasp Injection Molding[J]. Plastic, 2019,48(01):92-96+101.

[5] Cai H D, Chen Y. Optimization of Injection Molding Process based on Regression Orthogonal Design and Comprehensive Weighted Scoring Method [J]. Plastic Industry, 2018,46(09):67-71.

[6] Luo Y H, Feng Y P. Optimization for rapid heat cycling molding process of MP4 cover based on Taguchi experiment [J]. CHINA SYNTHETIC RESIN AND PLASTICS, 2017, 34(01): 66-69.

[7] A.A. Abdullahi, I. A. Choudhury, M. Azuddin. Process Development and Product Quality of Micro-Metal Powder Injection Molding [J]. Materials and Manufacturing Processes, 201530 (11).

DOI: 10.1080/10426914.2015.1025977

[8] Dong Xiaomin, Yu Miao, Liao Changrong, Chen Weimin. Fuzzy Control of Magnetorheological Semi-Active Suspension Based on Hybrid Taguchi Genetic Algorithm[J]. Journal of Vibration and Shock,2010,29(06):149-153+226+242.

DOI: 10.1109/wcica.2008.4593227

[9] Feng N Y, Huang T B. Remote Control Panel Injection Molding Process and Mold Design[J]. Wind of Science and Technology, 2019(08):4-9.

[10] Feng Xu, Huang li, Luo Yong han. Optimization Design of Front Shell Injection Mold Gating System Based on CAE Technology[J]. Plastics Science and Technology,2019,47(03):83-87.

[11] Fu X Z, Zhang H D, Feng S, Qu W S. Study on Injection Molding Technology of Thick Wall Polypropylene Pipe Plastic Parts [J]. Engineering Plastics Application, 2014, 42(04):66-69.

[12] Saurabh Chaitanya, Inderdeep Singh. Processing of PLA/sisal fiber biocomposites using direct-and extrusion-injection molding[J]. Materials and Manufacturing Processes, 2017, 32(5).

DOI: 10.1080/10426914.2016.1198034

[13] Wang Yanfeng, Wang Xinghui. Shrinkage of Transparent Polypropylene after Baking was Studied [J/OL]. Chemical propellants and polymer materials,2019(02):82-84.

[14] Yang Min, Tian Yubo, Chen Feng. Optimization Design of Multilayer Absorbing Material Based on Variant Taguchi Algorithm[J]. Science Technology and Engineering, 2015, 15(01): 250-256.

[15] Zhang X M, Yin C Y, Wei Shuai, Ye Sheng zhao, Lu Ping. Cat Colony Optimization Task Scheduling Algorithm Based on Double Arbitration Mechanism and Taguchi Orthogonal Method[J]. Journal of Electronics Information Technology, 2018,40(10):2521-2528.
