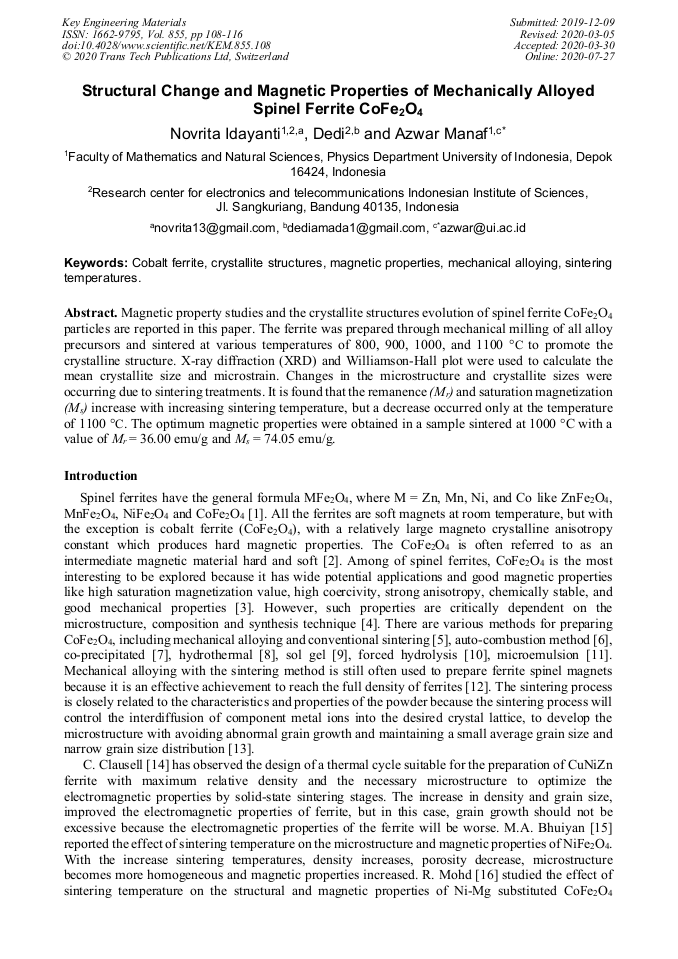

Structural Change and Magnetic Properties of Mechanically Alloyed Spinel Ferrite CoFe₂O₄

Abstract:

Magnetic property studies and the crystallite structures evolution of spinel ferrite CoFe₂O₄ particles are reported in this paper. The ferrite was prepared through mechanical milling of all alloy precursors and sintered at various temperatures of 800, 900, 1000, and 1100 °C to promote the crystalline structure. X-ray diffraction (XRD) and Williamson-Hall plot were used to calculate the mean crystallite size and microstrain. Changes in the microstructure and crystallite sizes were occurring due to sintering treatments. It is found that the remanence (M_r) and saturation magnetization (M_s) increase with increasing sintering temperature, but a decrease occurred only at the temperature of 1100 °C. The optimum magnetic properties were obtained in a sample sintered at 1000 °C with a value of M_r = 36.00 emu/g and M_s = 74.05 emu/g.

• Periodical: Key Engineering Materials (Volume 855)
• Pages: 108-116
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.855.108
• Online since: July 2020
• Authors: Novrita Idayanti, Dedi Dedi, Azwar Manaf*
• Keywords: Cobalt Ferrite, Crystallite Structure, Magnetic Properties, Mechanical Alloying, Sintering Temperatures

References

[1] T. Tatarchuk, M. Bououdina, J. J. Vijaya, and L. J. Kennedy, Spinel Ferrite Nanoparticles: Synthesis, Crystal Structure, Properties, and Perspective Applications, in: O. Fesenko, L. Yatsenko (eds.), Nanophysics, Nanomaterials, Interface Studies, and Applications, 2017, p.305–325.

DOI: 10.1007/978-3-319-56422-7_22

[2] N. Hosni, K. Zehani, T. Bartoli, L. Bessais, and H. Maghraoui-meherzi, Semi-hard magnetic properties of nanoparticles of cobalt ferrite synthesized by the co-precipitation process, J. Alloys Compd. 694 (2017) 1295–1301.

DOI: 10.1016/j.jallcom.2016.09.252

[3] H.L. Andersen, Crystalline and magnetic structure-property relationship in spinel ferrite nanoparticles, Nanoscale 00 (2018) 1-17.

[4] P. C. Dorsey et al. CoFe2O4 thin films grown on (100) MgO substrates using pulsed laser deposition, J. Allpied Phys. 6338 (2014) 2012–(2015).

DOI: 10.1063/1.361991

[5] E. Manova et al. Mechano-Synthesis, Characterization, and Magnetic Properties of Nanoparticles of Cobalt Ferrite, CoFe2O4, Chem. Mater. 16 (2004) 5689–5696.

DOI: 10.1021/cm049189u

[6] Y. Liu et al. Dependence of magnetic properties on crystallite size of CoFe2O4 nanoparticles synthesised by auto- combustion method, J. Exp. Nanosci. 4 (2009) 159-168.

[7] T. Prabhakaran, R. V Mangalaraja, and J. C. Denardin, The effect of calcination temperature on the structural and magnetic properties of co-precipitated CoFe2O4 nanoparticles, J. Alloys Compd. 716 (2017) 171-183.

DOI: 10.1016/j.jallcom.2017.05.048

[8] O. Cofe, S. Moosavi, S. Zakaria, C. H. Chia, S. Gan, and N.A. Azahari, Hydrothermal synthesis, magnetic properties and characterization of CoFe2O4 nanocrystals, Ceram. Int. (2017) 1-6.

DOI: 10.1016/j.ceramint.2017.03.110

[9] K. S. Rao, G. Choudary, K. H. Rao, and C. Sujatha, Structural and Magnetic properties of Ultrafine CoFe2O4 Nanoparticles, Procedia Mater. Sci. 10 (2015) 19–27.

DOI: 10.1016/j.mspro.2015.06.019

[10] N. Hanh, O. K. Quy, N. P. Thuy, L. D. Tung, and L. Spinu, Synthesis of cobalt ferrite nanocrystallites by the forced hydrolysis method and investigation of their magnetic properties, Phys. B. 327 (2003) 382–384.

DOI: 10.1016/s0921-4526(02)01750-7

[11] P. Laokul, S. Arthan, S. Maensiri, and E. Swatsitang, Magnetic and Optical Properties of CoFe2O4 Nanoparticles Synthesized by Reverse Micelle Microemulsion Method, J. Supercon Nov Magn. (2015) 1-7.

DOI: 10.1007/s10948-015-3068-8

[12] S. Filipovi et al. Advantages of Combined Sintering Compared to Conventional Sintering of Mechanically Activated Magnesium Titanate, Sci. Sinter. 46 (2014) 283–290.

DOI: 10.2298/sos1403283f

[13] A. Goldman, Modern Ferrite Technology, Second Ed. Pittsburgh, PA, USA: Springer US, (2006).

[14] C. Clausell and A. Barba, Processing–microstructure–properties relationship in a CuNiZn ferrite, Boletín la Soc. Española Cerámica y Vidr. (2017) 1–11.

DOI: 10.1016/j.bsecv.2017.09.002

[15] M.A. Bhuiyan, Effect of sintering temperature on microstructure and magnetic properties of NiFe2O4 prepared from nano size powder of NiO and Fe2O3, J. Bangladesh Acad. Sci. 34 (2010) 189–195.

[16] R. Mohd, Z. Othaman, A. A. Ati, and R. Hussin, The effect of sintering temperature on the structural and magnetic properties of Ni-Mg substituted CoFe2O4 nanoparticles, Mater. Sci. Forum. 846 (2016) 352–357.

DOI: 10.4028/www.scientific.net/msf.846.352

[17] S. Kumar, V. D. Mote, R. Prakash, and V. Kumar, X-ray Analysis of α-Al2O3 Particles by Williamson-Hall Methods, Mater. Focus 5 (2016) 545–549.

DOI: 10.1166/mat.2016.1345

[18] S. Bawa, M. Hashim, W. Daud, W. Yusoff, and Z. Abbas, X-ray diffraction studies on crystallite size evolution of CoFe2O4 nanoparticles prepared using mechanical alloying and sintering, Appl. Surf. Sci. 256 (2010) 3122–3127.

DOI: 10.1016/j.apsusc.2009.11.084

[19] P. C. R. Varma, R. Sekhar, D. Banerjee, M. Raama, K. G. Suresh, and A. K. Nigam, Magnetic properties of CoFe2O4 synthesized by solid state, citrate precursor and polymerized complex methods: A comparative study, J. Alloys Compd. 453 (2008) 298–303.

DOI: 10.1016/j.jallcom.2006.11.058

[20] J. Zhang, Y. Zhang, K. Xu, and V. Ji, General compliance transformation relation and applications for anisotropic hexagonal metals, Solid State Commun. 139 (2006) 87–91.

DOI: 10.1016/j.ssc.2006.05.026

[21] M. G. N. C. Suryanarayana, X-Ray Diffraction A Practical Approach Washington: Plenum Publishing Corporation, (1998).

[22] A. K. Zak, W. H. A. Majid, M. E. Abrishami, and R. Youse, X-ray analysis of ZnO nanoparticles by Williamson-Hall and size e strain plot methods, Solid State Sci. 13 (2011) 251–256.

DOI: 10.1016/j.solidstatesciences.2010.11.024

[23] A. B. Kulkarni and S. N. Mathad, Synthesis and Structural Analysis of Co–Zn–Cd Ferrite by Williamson – Hall and Size – Strain Plot Methods, Int. J. Self-Propagating High-Temperature Synth. 27 (2018) 37–43.

DOI: 10.3103/s106138621801003x

[24] S. D. Bhame and P. A. Joy, Effect of Sintering Conditions and Microstructure on the Magnetostrictive Properties of Cobalt Ferrite, J. Am. Ceram. Soc. 1980 (2008) 1976–(1980).

DOI: 10.1111/j.1551-2916.2008.02367.x

[25] I. K. R.S. Yadav, Impact of grain size and structural changes on magnetic, dielectric, electrical, impedance and modulus spectroscopic characteristics of CoFe2O4 nanoparticles synthesized by honey mediated sol-gel combustion method, Adv. Nat. Sci. Nanosiences Nanotechnol. 8 (2017) 1-15.

DOI: 10.1088/2043-6254/aa853a

[26] Y. Liu, F. Min, T. Qiu, J. Zhu, and M. Zhang, Effect of the grain size on magnetic properties of nanocrystalline CoFe2O4 ferrite, Adv. Mater. Res. Vols. 310 (2011) 685–688.

[27] E. F. Kneller and F. E. Luborsky, Particle Size Dependence of Coercivity and Remanence of Single Domain Particles, J. Allpied Phys. 656 (1963) 1-4.

DOI: 10.1063/1.1729324

[28] J. S. Lee, J. M. Cha, H. Y. Yoon, J. Lee, and Y. K. Kim, Magnetic multi-granule nanoclusters: A model system that exhibits universal size effect of magnetic coercivity, Nat. Publ. Gr. (2015) 1–7.

DOI: 10.1038/srep12135
