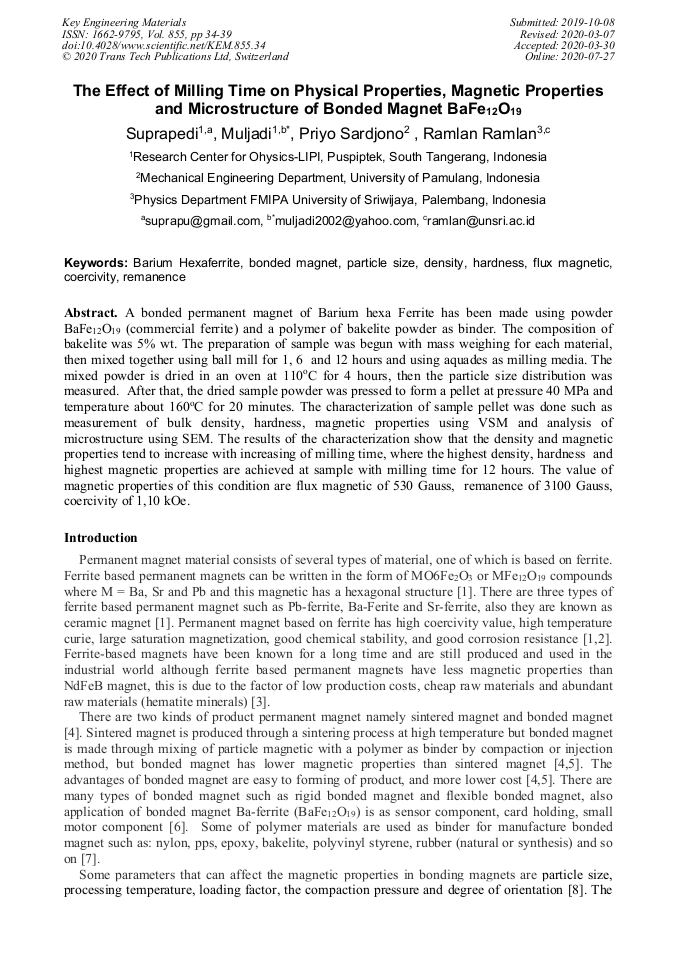

The Effect of Milling Time on Physical Properties, Magnetic Properties and Microstructure of Bonded Magnet BaFe₁₂O₁₉

Abstract:

A bonded permanent magnet of Barium hexa Ferrite has been made using powder BaFe₁₂O₁₉ (commercial ferrite) and a polymer of bakelite powder as binder. The composition of bakelite was varried 5% wt. The preparation of sample was begun with mass weighing for each material, then mixed together using ball mill for 1, 6 and 12 hours and using aquades as milling media. The mixed powder is dried in an oven at 110 °C for 4 hours, then the particle size distribution was measured. After that, the dried sample powder was pressed to form a pellet at pressure 40 MPa and temperature about 160 °C for 20 minutes. The characterization of sample pellet was done such as measurement of bulk density, hardness , magnetic properties using VSM and anylisis of microstructure using SEM. The results of the characterization show that the density and magnetic properties tend to increase with increasing of milling time, where the highest density, hardness and highest magnetic properties are achieved at sample with milling time for 12 hours. The value of magnetic properties at this condition are flux magnetic of 530 Gauss, remenance of 3100 Gauss, coercivity of 1,10 kOe.

• Periodical: Key Engineering Materials (Volume 855)
• Pages: 34-39
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.855.34
• Online since: July 2020
• Authors: Suprapedi Suprapedi, Muljadi Muljadi*, Priyo Sardjono, Ramlan Ramlan
• Keywords: Barium Hexaferrite, Bonded Magnet, Coercivity, Density, Flux Magnetic, Hardness, Particle Size, Remanence

References

[1] R. Nowosielski, R. Babilas, G. Dercz, L. Pajk, J. Wrona, Structure and properties of barium ferrite powders prepared by milling and annealing Archives of Materials Science and Engineering,Vol.18 Issue 12 (2007).

[2] Philip Shepherd, Kajal K. Mallick, Roger J. Green, Magnetic and structural properties of Mtype barium hexaferrite prepared by co-precipitation, Journal of Magnetism and Magnetic Materials 311 (2007) 683–692.

DOI: 10.1016/j.jmmm.2006.08.046

[3] Denis A. V, Aleksandra Y T, Dmitry A.S,Damir M. G, Vladimir E. Z, Evgeny A. T, Sandra Nemrava, Nikolai S. P, Ludmila I. Isaenko,and Rainer Niewa 2017 Magnetic and Structural Properties of Barium Hexaferrite BaFe12O19 from Various Growth Techniques, Materials 10, 578 (2017) 1-11.

DOI: 10.3390/ma10060578

[4] M. Przybylski, B. Ślusarek, T. Bednarczyk and G. Chmiel, Magnetic and Mechanical Properties of Strontium Ferrite and Nd–Fe–B Rubber Bonded Permanent Magnets, Acta Physica Polonica A Vol. 136 (2019) 685-688.

DOI: 10.12693/aphyspola.136.685

[5] Balakrishnan Nagarajan, Milad Kamkar, Martin A.W. Schoen, Uttandaraman Sundararaj, Simon Trudel, Ahmed Jawad Qureshi and Pierre Mertiny, Development and Characterization of Stable Polymer Formulations for Manufacturing Magnetic Composites, J. Manuf. Mater. Process 4 (2020) 2-18 1. Developments in the processing and properties of NdFeb-type 2. permanent magnets 3. David Brown*, Bao-Min Ma, Zhongmin Chen 4. Magnequench Technology Center, 9000 Development Drive, Research Triangle Park 5. Developments in the processing and properties of NdFeb-type 6. permanent magnets 7. David Brown*, Bao-Min Ma, Zhongmin Chen 8. Magnequench Technology Center, 9000 Development Drive, Research Triangle Park.

DOI: 10.3390/jmmp4010004

[6] Barbara Slusarek, Kazimierz Zakrzewski, Magnetic properties of permanent magnets for magnetic sensors working in wide range of temperature, Przegląd Elektrotechniczny (Electrical Review),Nr 7, (2012) 123 -126.

[7] Monika G. Garrell, Albert J. Shih, Bao-Min Ma, Edgar Lara-Curzio, Ronald O.Scattergood, 2003 Mechanical properties of Nylon bonded Nd–Fe–B permanent magnets, Journal of Magnetism and Magnetic Materials 257 (2008) 32–43.

DOI: 10.1016/s0304-8853(02)00983-6

[8] Ling Li, AngelicaTirado, I. C. Nlebedim, Orlando Rios, Brian Post, Vlastimil Kunc, R. R. Lowden, Edgar Lara-Curzio, Robert Fredette, John Ormerod, Thomas A. Lograsso & M. Parans Paranthaman, Big Area Additive Manufacturing of High Performance Bonded NdFeB Magnets, Scientific Reports 6:36212, (2016).

DOI: 10.1038/srep36212

[9] Yang Zhang, Jie Xu,a) Qiang Li, Derang Cao, and Shandong Li, The effect of the particle size and magnetic moment of the Fe3O4 superparamagnetic beads on the sensitivity of biodetection, AIP Advances 9, (2019) 015215-1-6.

DOI: 10.1063/1.5050034

[10] Huang Ching Chien, Mo Chih Chieh , Hung YungmHsiung , Zuo Wei Zong , Huang Jing Yi , Hsu Hsiao Hsuan, Cheng Chun Hu, Effect of particle size of as‐milled powders on microstructural and magnetic properties of Y3MnxAl0.8-xFe4.2O12 ferrites, Journal of the American Ceramic Society Volume 102, Issue 6, (2019)  3525-3534.

DOI: 10.1111/jace.16211

[11] V.Annapu Reddy, N.P. Pathak, R. Nath, Particle size dependent magnetic properties and phase transitions in multiferroicBiFeO3 nano-particles, Journal of Alloys and Compounds 543 (2012) 206-212.

DOI: 10.1016/j.jallcom.2012.07.098

[12] Nurhidayaty Mokhtar, Mustaffa Hj. Abdullah, Sahrim Hj.A Ahmad, Structural and Magnetic Properties of Type-M Barium Ferrite – Thermoplastic Natural Rubber Nanocomposites, Sains Malaysiana 41(9) (2012) 1125–1131.

[13] D. Plusa, M.Dospial, B.Slusarek, U.Kotlerczyk, and T. Mydlarz, On the magnetic properties of bonded magnet made from a mixture of Nd(Fe,Co)B and Strintium ferrite or Alnico powder, Rev.Adv.Mater.Sci 18 (2008) 541 – 544.

DOI: 10.1016/j.jallcom.2005.12.051

[14] C. Kurniawan, S. Wahyuni, Ramlan, E. A. Setiadi and P. Sebayang, Effect of Particle Size Distribution on the Preparation of Bonded NdFeB Permanent Magnet, IOP Conf. Series: Materials Science and Engineering 622 (2019) 012012.

DOI: 10.1088/1757-899x/622/1/012012

[15] M.H. Makled, T. Matsui, H. Tsuda, H. Mabuchi, M.K. El-Mansy, K. Morii, Magnetic and dynamic mechanical properties of barium ferrite–natural rubber composites, Journal of Materials Processing Technology 160 (2005) 229–233.

DOI: 10.1016/j.jmatprotec.2004.06.013

[16] E.Urogiova, I. Hudec, D. Bellusova,Bratislava, Magnetic and Mechanical Properties of Strontium Ferrite– Rubber Composites, KGK _ Mai (2006 ) 224 - 228.
