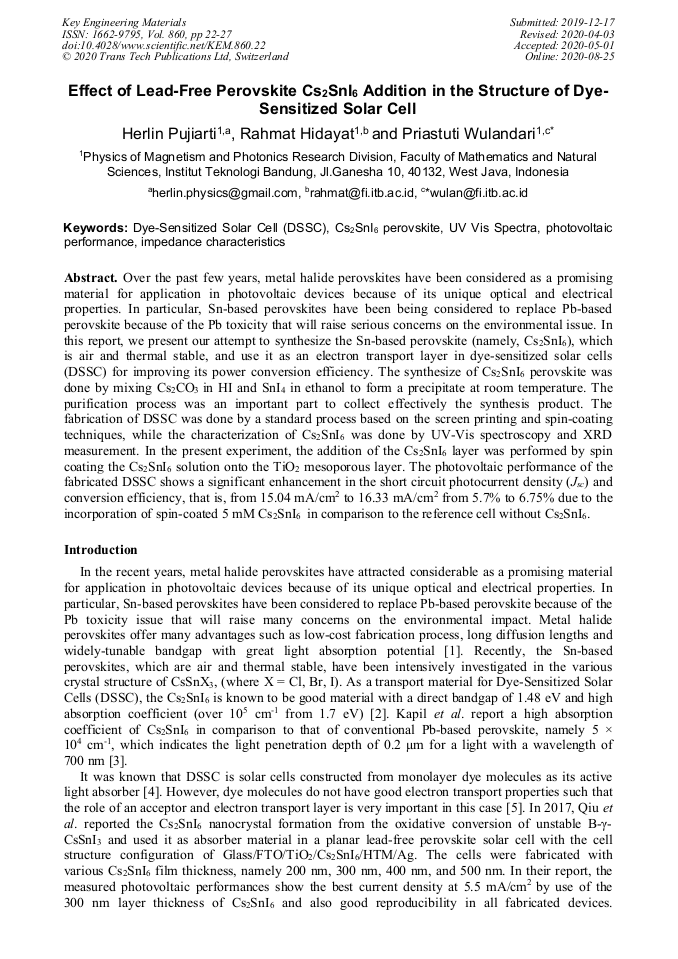

Effect of Lead-Free Perovskite Cs₂SnI₆ Addition in the Structure of Dye-Sensitized Solar Cell

Abstract:

Over the past few years, metal halide perovskites have been considered as a promising material for application in photovoltaic devices because of its unique optical and electrical properties. In particular, Sn-based perovskites have been being considered to replace Pb-based perovskite because of the Pb toxicity that will raise serious concerns on the environmental issue. In this report, we present our attempt to synthesize the Sn-based perovskite (namely, Cs₂SnI₆), which is air and thermal stable, and use it as an electron transport layer in dye-sensitized solar cells (DSSC) for improving its power conversion efficiency. The synthesize of Cs₂SnI₆ perovskite was done by mixing Cs₂CO₃in HI and SnI₄ in ethanol to form a precipitate at room temperature. The purification process was an important part to collect effectively the synthesis product. The fabrication of DSSC was done by a standard process based on the screen printing and spin-coating techniques, while the characterization of Cs₂SnI₆ was done by UV-Vis spectroscopy and XRD measurement. In the present experiment, the addition of the Cs₂SnI₆ layer was performed by spin coating the Cs₂SnI₆ solution onto the TiO₂ mesoporous layer. The photovoltaic performance of the fabricated DSSC shows a significant enhancement in the short circuit photocurrent density (J_sc) and conversion efficiency, that is, from 15.04 mA/cm² to 16.33 mA/cm² from 5.7% to 6.75% due to the incorporation of spin-coated 5 mM Cs₂SnI₆ in comparison to the reference cell without Cs₂SnI₆.

You might also be interested in these eBooks

Physics Symposium: Key Research in Materials Science

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 860)

Pages:

22-27

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.860.22

Citation:

Cite this paper

Online since:

August 2020

Authors:

Herlin Pujiarti, Rahmat Hidayat, Priastuti Wulandari*

Keywords:

Cs₂SnI₆ Perovskite, Dye-Sensitized Solar Cell (DSSC), Impedance Characteristics, Photovoltaic Performance, UV Vis Spectra

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] S. Shao, J. Dong, H. Duim, G.H. Brink, G.R. Blake, G. Portale, M.A. Loi, Enhanching the crystallinity and perfecting the orientation of formamidium tin iodide for highly efficient Sn-based provskite solar cells, Nano Energy 60 (2019) 810-816.

DOI: 10.1016/j.nanoen.2019.04.040

Google Scholar

[2] X. Qiu, B. Cao, S. Yuan, X. Chen, Z. Qiu, Y. Jiang, Q. Ye, H. Wang, H. Zeng, J. Liu, M.G. Kanatzidis, From unstable CsSnI3 to air-stable Cs2SnI6: A lead-free perovskite solar, Sol. Energy Mater. Sol. Cells 159 (2017) 227-234.

DOI: 10.1016/j.solmat.2016.09.022

Google Scholar

[3] G. Kapil, T. Ohta, T. Koyanagi, M. Vigneshwaran, Y. Zhang, Y. Ogomi, S.S. Pandey, K. Yoshino, Q. Shen, T. Toyoda, M. Mijanur, Investigation of interfacial charge transfer in solution processed Cs2SnI6 thin films, J. Phys.Chem. C 121 (2017) 13092-13100.

DOI: 10.1021/acs.jpcc.7b04019

Google Scholar

[4] O'Regan, M. Gratzel, A low-cost, high-efficiency solar cell based on dye-sensitized colloidal TiO2 films, Nature 353 (1991) 737-740.

DOI: 10.1038/353737a0

Google Scholar

[5] G. Boschloo, Improving the performance of dye-sensitized solar sells, Front. Chem. 7 (2019).

Google Scholar

[6] M. Rasukkannu, D. Velauthapillai, P. Vajeeston, A first-principle study of the electronic, mechanical and optical properties of inorganic perovskite Cs2SnI6 for intermediate-band solar cells, Mater. Lett. 218 (2018) 233-236.

DOI: 10.1016/j.matlet.2018.02.034

Google Scholar

[7] H. Pujiarti, R. Hidayat, P. Wulandari, Photocurrent enhancement by incorporation of air-stable Cs2SnI6, J. Phys.: Conf. Ser. 1245 (2019) 012066.

DOI: 10.1088/1742-6596/1245/1/012066

Google Scholar

[8] Y.S. Handayani, P. Wulandari, R. Hidayat, Controlled synthesis of lead-free perovskite Cs2SnI6 as hole transport layer in dye sensitized solar cells, J. Phys.: Conf. Ser. 1080 (2019) 012003.

DOI: 10.1088/1742-6596/1080/1/012003

Google Scholar

[9] D. Liu, M.K. Gangishetty, T.L. Kelly, Effect of CH3NH3PbI3 thickness on device efficiency in planar heterojunction perovskite solar cells, J. Mater. Chem. A. 2 (2019) 19873-19881.

DOI: 10.1039/c4ta02637c

Google Scholar

[10] W.S. Arsyad, H. Bahar, B. Prijamboedi, R. Hidayat, Ionics 24 (2018) 901–914.

Google Scholar

[11] K.A. John, J. Naduvath, S. Mallick, J.W. Pledger, S.K. Remillard, P.A. DeYoung, M. Thankamoniamma, T. Shripathi, R.R. Philip, Electrochemical synthesis of novel Zn-doped TiO2 nanotube/ZnO nanoflake heterostructure with enhanced DSSC efficiency, Nano-Micro Lett. 8 (4) (2016) 381-387.

DOI: 10.1007/s40820-016-0099-z

Google Scholar
