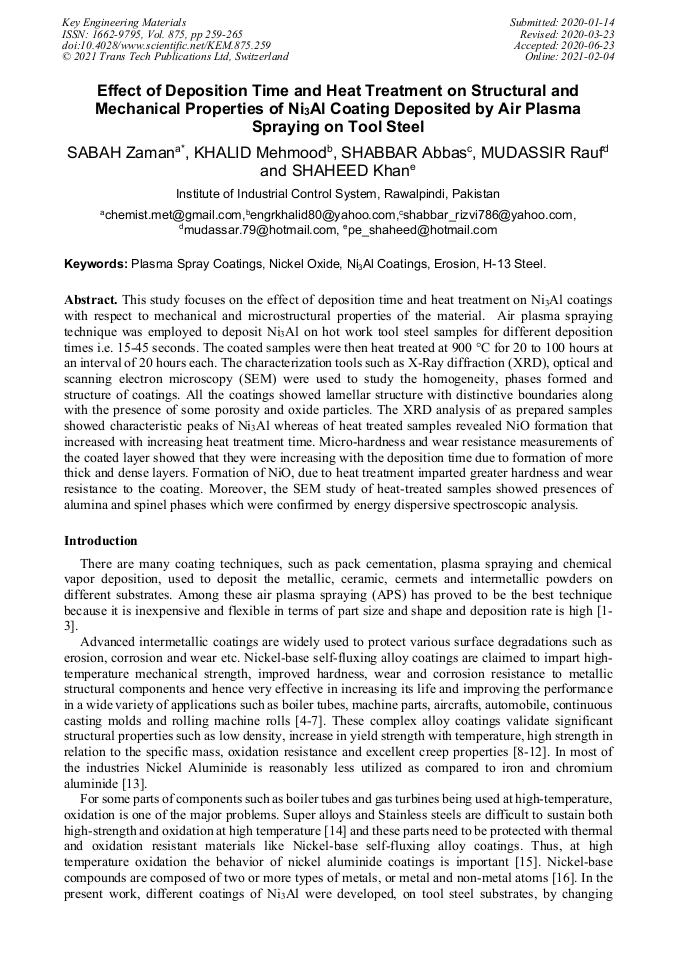

Effect of Deposition Time and Heat Treatment on Structural and Mechanical Properties of Ni₃Al Coating Deposited by Air Plasma Spraying on Tool Steel

Abstract:

This study focuses on the effect of deposition time and heat treatment on Ni₃Al coatings with respect to mechanical and microstructural properties of the material. Air plasma spraying technique was employed to deposit Ni₃Al on hot work tool steel samples for different deposition times i.e. 15-45 seconds. The coated samples were then heat treated at 900 °C for 20 to 100 hours at an interval of 20 hours each. The characterization tools such as X-Ray diffraction (XRD), optical and scanning electron microscopy (SEM) were used to study the homogeneity, phases formed and structure of coatings. All the coatings showed lamellar structure with distinctive boundaries along with the presence of some porosity and oxide particles. The XRD analysis of as prepared samples showed characteristic peaks of Ni₃Al whereas of heat treated samples revealed NiO formation that increased with increasing heat treatment time. Micro-hardness and wear resistance measurements of the coated layer showed that they were increasing with the deposition time due to formation of more thick and dense layers. Formation of NiO, due to heat treatment imparted greater hardness and wear resistance to the coating. Moreover, the SEM study of heat-treated samples showed presences of alumina and spinel phases which were confirmed by energy dispersive spectroscopic analysis.

• Periodical: Key Engineering Materials (Volume 875)
• Pages: 259-265
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.875.259
• Online since: February 2021
• Authors: Sabah Zaman*, Khalid Mehmood, Shabbar Abbas, Mudassir Rauf, Shaheed Khan
• Keywords: Erosion, H-13 Steel, Ni₃Al Coatings, Nickel Oxide, Plasma Spray Coatings

References

[1] B. S. Sidhu and S. Prakash, Degradation Behavior of Ni3Al Plasma-Sprayed Boiler Tube Steels in an Energy Generation System, J. Mater. Eng. 14(3) (2005) 356-362.

DOI: 10.1361/10599490523382

[2] J.R. Davis, Handbook of Thermal Spray Technology; ASM International: Materials Park, OH, USA, (2004).

[3] J.R. T. Branco, R. Gansert, S. Sampath, C. C. Berendt and H. Herman, Mater. Res. 7 (2004) 147.

[4] F. Otsubo, H. Era, and K. Kishitake, Interface Reaction between Nickel-Base Self- Fluxing Alloy Coating and Steel Substrate, J. Therm. Spray Technol. 9 (2000) 259-263.

DOI: 10.1361/105996300770350014

[5] G.W Goward, Progress in coatings for gas turbines airfoils. Surf. Coat. Technol. 1998, 108–109, 73–79.

[6] M.Chaithanya, Processing & Characterization of Ni-Al Coating on Metal Substrates. Master's Thesis, National Institute of Technology, Rourkela, India, (2007).

[7] S.B. Mishra, K. Chandra, S. Prakash, B. Venkataraman, Characterization and erosion behaviour of a plasma sprayed Ni3Al coating on a Fe-based superalloy, Mat. Lett. 59 (2005) 3694 – 3698.

DOI: 10.1016/j.matlet.2005.06.050

[8] G. Suuthoff, Mechanical Properties of Intermetallics at High Temperatures, Vortrag ASM Materials Week, Indianapolis, (1989).

[9] W. Wang, B. Yang, L. Du, W. Zhang, Diffusion research between Ni3Al coating and titanium alloy produced by plasma spraying process, Appl. Surf. Sci. 256 (2010) 3342–3345.

DOI: 10.1016/j.apsusc.2009.12.031

[10] K. S. Kumar, C. T. Liu, Nickel and iron aluminide, J. Met.45 (1993) 28.

[11] H. M. Saffarian, Q. Gan, R. Hadkar, G.W. Warren, Corrosion behavior of binary titanium aluminides intermetallics, Corrosion, 52 (1996) 626.

DOI: 10.5006/1.3292153

[12] S. H. Kim, M. H. Oh, K. Kishida, T. Hirano, D.M. Wee, Deposition of NiAl for improvement of oxidation resistance of cold rolled Ni3Al foils, Intermetallics. 13 (2005) 129-136.

DOI: 10.1016/j.intermet.2004.06.009

[13] H. Singh, D. Puri, S. Prakash, some studies on hot corrosion performance of plasma sprayed coatings on a Fe-based superalloy, Surf. Coat. 192 (2005) 27-38.

DOI: 10.1016/j.surfcoat.2004.03.030

[14] P.S. Liu, K.M. Liang, S.R. Gu, High temperature oxidation behavior of aluminide coatings on a cobalt base super alloy in air, Corros. Sci. 43 (2001) 1217–1226.

DOI: 10.1016/s0010-938x(00)00137-2

[15] Y. Tamarin, Protective coatings for turbine blades, ASM International, Materials Park, Ohio, USA, (2002) 56.

[16] A.U. Malik, R. Ahmad, S. Ahmad, and S. Ahmad, High Temperature oxidation behaviour of nickel aluminide coated mild steel, Prakt. Metallogr. 1992, 29, p.255.

DOI: 10.1515/pm-1992-290505

[17] K. Natesan, Critical Factors Affecting the High-Temperature Corrosion performance of iron aluminides, Mater. Sci. Eng. 1988, 30, p.53–81.

[18] S. Usmani, S. Sampath, D.L. Houck, and D. Lee, Effect of carbide grain size on the sliding and abrasive wear behavior of thermally sprayed WC-Co coatings, Tribol. Trans. 1997, 40(3), p.470–478.

DOI: 10.1080/10402009708983682

[19] K. Mehmood, M.A. Rafiq, A. N. Khan, F. Ahmed, and M. M. Rauf, Characterization and wear behavior of heat-treated Ni3AAlcoatings deposited by air plasma spraying, Mat. Sci. Performance. (2016).

DOI: 10.1007/s11665-016-2120-6

[20] L. Espinosa, V. Bonache, M.D. Salvador, Friction and wear behavior of WC-Co-Cr3C2-VC cemented carbides obtained from nanocrystalline mixtures, Wear. 272 (2011) 62– 68.

DOI: 10.1016/j.wear.2011.07.012
