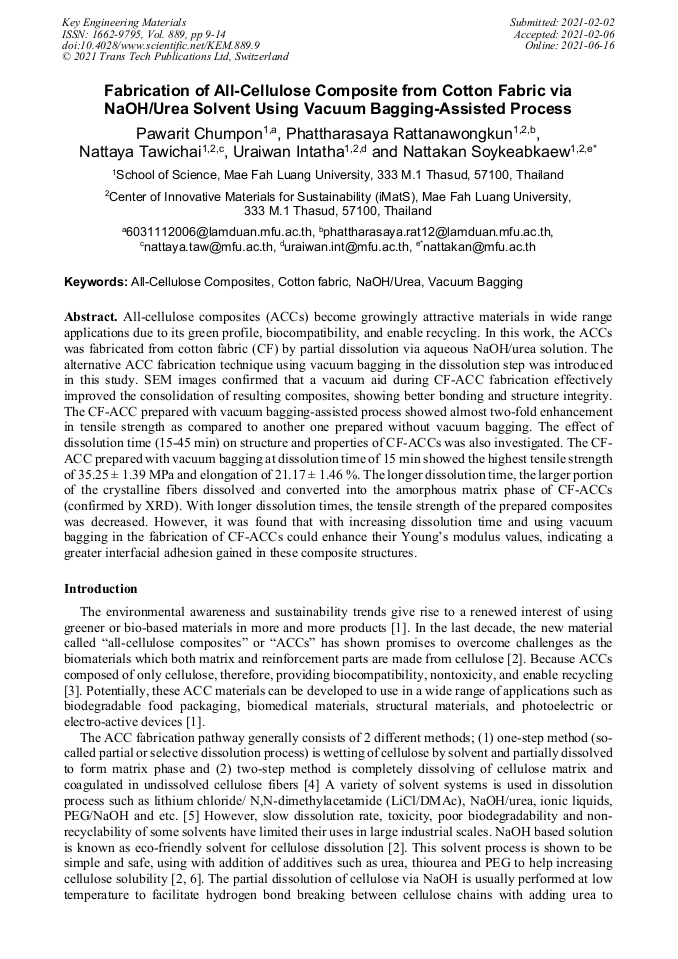

Fabrication of All-Cellulose Composite from Cotton Fabric via NaOH/Urea Solvent Using Vacuum Bagging-Assisted Process

Abstract:

All-cellulose composites (ACCs) become growingly attractive materials in wide range applications due to its green profile, biocompatibility, and enable recycling. In this work, the ACCs was fabricated from cotton fabric (CF) by partial dissolution via aqueous NaOH/urea solution. The alternative ACC fabrication technique using vacuum bagging in the dissolution step was introduced in this study. SEM images confirmed that a vacuum aid during CF-ACC fabrication effectively improved the consolidation of resulting composites, showing better bonding and structure integrity. The CF-ACC prepared with vacuum bagging-assisted process showed almost two-fold enhancement in tensile strength as compared to another one prepared without vacuum bagging. The effect of dissolution time (15-45 min) on structure and properties of CF-ACCs was also investigated. The CF-ACC prepared with vacuum bagging at dissolution time of 15 min showed the highest tensile strength of 35.25 ± 1.39 MPa and elongation of 21.17 ± 1.46 %. The longer dissolution time, the larger portion of the crystalline fibers dissolved and converted into the amorphous matrix phase of CF-ACCs (confirmed by XRD). With longer dissolution times, the tensile strength of the prepared composites was decreased. However, it was found that with increasing dissolution time and using vacuum bagging in the fabrication of CF-ACCs could enhance their Young’s modulus values, indicating a greater interfacial adhesion gained in these composite structures.

• Periodical: Key Engineering Materials (Volume 889)
• Pages: 9-14
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.889.9
• Online since: June 2021
• Authors: Pawarit Chumpon, Phattharasaya Rattanawongkun, Nattaya Tawichai, Uraiwan Intatha, Nattakan Soykeabkaew*
• Keywords: All-Cellulose Composites, Cotton Fabric, NaOH/Urea, Vacuum Bagging

References

[1] B. Baghaei and M. Skrifvars: Molecules Vol. 25(2) (2020), pp.1-19.

[2] T. Huber, J. Müssig, O. Curnow, S. Pang, S. Bickerton and M. P. Staiger: J. Mater. Sci. Vol. 47(3) (2012), pp.1171-1186.

DOI: 10.1007/s10853-011-5774-3

[3] S. Tanpichai and S. Witayakran: Key Eng Mater. Vol. 659 (2015), pp.453-457.

[4] J. W. Dormanns, J. Schuermann, J. Müssig, B. J. Duchemin and M. P. Staiger: Compos. Part A Appl. Sci. Manuf. Vol. 82 (2016), pp.130-140.

[5] A. Grozdanov, I. Jordanov, G. Gentile, M. E. Errico, R. Avollio and M. Avella: Fiber Polym Vol. 20(6) (2019), pp.1243-1249.

DOI: 10.1007/s12221-019-7970-0

[6] P. Piltonen, N. C. Hildebrandt, B. Westerlind, L. P. Valkama, T. Tervahartiala and M. Illikainen: Compos Sci Technol Vol. 135 (2016), pp.153-158.

DOI: 10.1016/j.compscitech.2016.09.022

[7] B. Duchemin, D. Le Corre, N. Leray, A. Dufresne and M. P. Staiger: Cellulose Vol. 23(1) (2015), pp.593-609.

DOI: 10.1007/s10570-015-0835-4

[8] R. Arévalo, O. Picot, R. M. Wilson, N. Soykeabkaew and T. Peijs: J. Biobased Mater Vol. 4(2) (2010), pp.129-138.

[9] B. Baghaei, S. Compiet and M. Skrifvars, M: J. Polym. Res. Vol. 27(9) (2020), pp.1-9.

[10] W. F. Zonatti, B. M. G. Guimarães, W. Duleba and J. B. Ramos: Text. Cloth. Sustain. Vol. 1(1) (2015), pp.1-12.

[11] J. Li, H. Nawaz, J. Wu, J. Zhang, J. Wan, Q. Mi and J. Zhang: Compos. Commun. Vol. 9 (2018), pp.42-53.

[12] T. Huber, S. Bickerton, J. Müssig, S. Pang and M. P. Staiger: Carbohydr Vol. 90(1) (2012), pp.730-733.

[13] S. Kalka, T. Huber, J. Steinberg, K. Baronian, J. Müssig, J and M. P. Staiger: Compos. Part A Appl. Sci. Manuf. Vol. 59 (2014), pp.37-44.

DOI: 10.1016/j.compositesa.2013.12.012

[14] M. Shibata, N. Teramoto, T. Nakamura and Y. Saitoh, Y: Carbohydr Vol. 98(2) (2013), pp.1532-1539.

[15] N. Soykeabkaew, N. Arimoto, T. Nishino and T. Peijs: Compos Sci Technol. Vol. 68(10-11) (2008), pp.2201-2207.

[16] N. H. Kidwai, H. Singh and A. Chatterjee: Cell Chem Technol Vol. 54(7-8) (2020), pp.757-764.

[17] T. Huber, S. Pang, S and M. P. Staiger: Compos. Part A Appl. Sci. Manuf. Vol. 43(10) (2012), pp.1738-1745.

[18] J. Cao, X. Sun, C. Lu, Z. Zhou, X. Zhang and G. Yuan: Carbohydr Vol. 149 (2016), pp.60-67.
