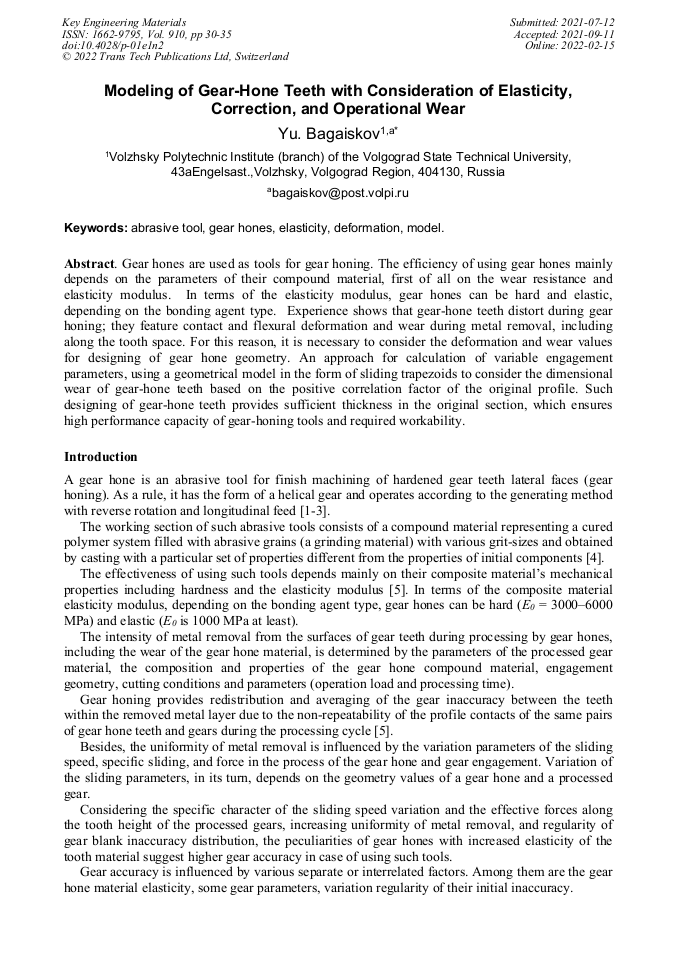

Modeling of Gear-Hone Teeth with Consideration of Elasticity, Correction, and Operational Wear

Abstract:

Gear hones are used as tools for gear honing. The efficiency of using gear hones mainly depends on the parameters of their compound material, first of all on the wear resistance and elasticity modulus. In terms of the elasticity modulus, gear hones can be hard and elastic, depending on the bonding agent type. Experience shows that gear-hone teeth distort during gear honing; they feature contact and flexural deformation and wear during metal removal, including along the tooth space. For this reason, it is necessary to consider the deformation and wear values for designing of gear hone geometry. An approach for calculation of variable engagement parameters, using a geometrical model in the form of sliding trapezoids to consider the dimensional wear of gear-hone teeth based on the positive correlation factor of the original profile. Such designing of gear-hone teeth provides sufficient thickness in the original section, which ensures high performance capacity of gear-honing tools and required workability.

• Periodical: Key Engineering Materials (Volume 910)
• Pages: 30-35
• DOI: https://doi.org/10.4028/p-01e1n2
• Online since: February 2022
• Authors: Yu. Bagaiskov*
• Keywords: Abrasive Tool, Deformation, Elasticity, Gear Hones, Model

References

[1] Kalashnikov A 2013 Gear Honing RITM: Repair. Innovation.Technology. Modernization 10(88) 22 – 29.

[2] Kalashnikov A, Morgunov Yu and Kalashnikov P 2014 Aspects of the Cylindrical Gear HoningProcess. Reference GuldeEngineeringJournal 6 3 – 9.

[3] Kovalchuk Yu 1984 Design Basis and Manufacturing Process of Abrasive and Diamond Tools(M.: Mashinostroyenie).

[4] Garshin A and FedotovaS 2008Abrasive Materials and Tools. Manufacturing Procedure:Instructional Aid (SPb.: Polytechnic University Press).

[5] Bagaiskov Yu and Shumyacher V 2005 Performance Increase of Devices Made of Abrasive Composite Materials (Volgograd: Volzhsky Institute of Civil Engineering and Technologies (branch) of Volgograd State University of Architecture and Civil Engineering).

[6] Schegolev V, Ulanova M 1984 Elastic Abrasive Tools, Mashinostroenie, Leningrad Division, L.

[7] Alekseeva N 1997 Designing Involute Gears for Aircrafts (M.: Moscow Aviation Institute).

[8] Melnikov V 2004 Synthesis of Gears and Optimal Values of Strength and Noise Engineering Newsletter211 – 13.

[9] Bagaiskov Yu 2018 Study of Total Elastic Deformation of Gear Hone Tooth Proc. Int. Conf. on Fundamentals of Mechanics (Novokuznetsk, MS RDC) pp.92-96.

[10] Airapetov E, GenkinMandKolin I 1971 Flexibility of Straight-Tooth Spur Gearing, Vibroacoustic Activity of Gear Mechanisms, p.13 — 59.

[11] Zablonsky K, Filipovich S 1976 Tooth Stiffness Analysis of Spiral Gears, News of Higher Institutions. Engineering, p.75 — 79.

[12] Bagaiskov Yu 2006 Designing of Gear Hones with Consideration of Composite-Material Tooth Deformation Mechanical Engineering 5 32 - 36.
