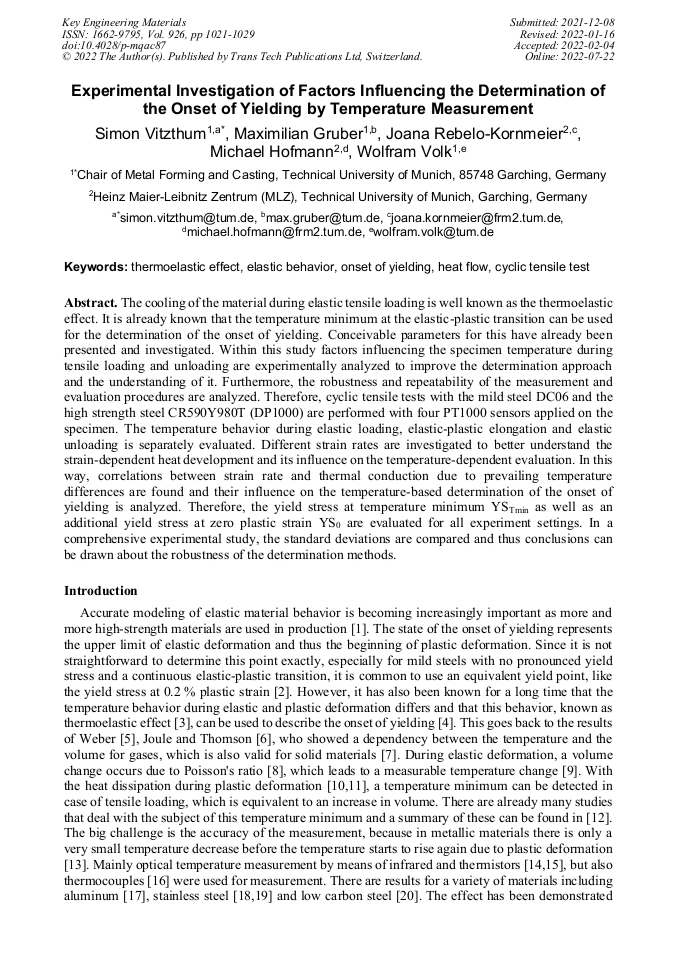

Experimental Investigation of Factors Influencing the Determination of the Onset of Yielding by Temperature Measurement

Abstract:

The cooling of the material during elastic tensile loading is well known as the thermoelastic effect. It is already known that the temperature minimum at the elastic-plastic transition can be used for the determination of the onset of yielding. Conceivable parameters for this have already been presented and investigated. Within this study factors influencing the specimen temperature during tensile loading and unloading are experimentally analyzed to improve the determination approach and the understanding of it. Furthermore, the robustness and repeatability of the measurement and evaluation procedures are analyzed. Therefore, cyclic tensile tests with the mild steel DC06 and the high strength steel CR590Y980T (DP1000) are performed with four PT1000 sensors applied on the specimen. The temperature behavior during elastic loading, elastic-plastic elongation and elastic unloading is separately evaluated. Different strain rates are investigated to better understand the strain-dependent heat development and its influence on the temperature-dependent evaluation. In this way, correlations between strain rate and thermal conduction due to prevailing temperature differences are found and their influence on the temperature-based determination of the onset of yielding is analyzed. Therefore, the yield stress at temperature minimum YS_Tmin as well as an additional yield stress at zero plastic strain YS₀ are evaluated for all experiment settings. In a comprehensive experimental study, the standard deviations are compared and thus conclusions can be drawn about the robustness of the determination methods.

• Periodical: Key Engineering Materials (Volume 926)
• Pages: 1021-1029
• DOI: https://doi.org/10.4028/p-mqac87
• Online since: July 2022
• Authors: Simon Vitzthum*, Maximilian Gruber, Joana Rebelo-Kornmeier, Michael Hofmann, Wolfram Volk
• Keywords: Cyclic Tensile Test, Elastic Behavior, Heat Flow, Onset of Yielding, Thermoelastic Effect

References

[1] K. Roll, T. Lemke, K. Wiegand, American Institute of Physics (2005).

[2] C.E. Bottani, G. Caglioti, Materials Letters 1 (1982) 119–121.

[3] J.M. Dulieu-Barton, Strain 35 (1999) 35–39.

[4] G. Sallat, Theoretische und experimentelle Untersuchungen zum Fliessverhalten von Blechen im Zweiachsigen. Dissertation, Chemnitz, (1988).

[5] W. Weber, Ann. Phys. Chem. 96 (1830) 177–213.

[6] J.P. Joule, W. Thomson, The London, Edinburgh, and Dublin Philosophical Magazine and Journal of Science 4 (1852) 481–492.

DOI: 10.1080/14786445208647169

[7] W. Thomson, Trans. R. Soc. Edinb. 20 (1853) 261–288.

[8] E. Doege, B.-A. Behrens, Handbuch Umformtechnik: Grundlagen, Technologien, Maschinen, 2nd ed., Springer-Verlag, s.l., (2010).

DOI: 10.1007/978-3-642-04249-2

[9] K.T. Compton, D.B. Webster., Phys. Rev. 5 (1915) 159–166.

[10] A.K. Wong, G.C. Kirby, Engineering Fracture Mechanics 37 (1990) 493–504.

[11] K.N. Pandey, S. Chand, International Journal of Pressure Vessels and Piping 80 (2003) 673–687.

[12] W.N. Sharpe, Springer handbook of experimental solid mechanics, Springer, New York, (2008).

[13] H.-T. Lee, J.-C. Chen, J Mater Sci 26 (1991) 5685–5692.

[14] M.H. Belgen, ISA Trans 6 (1967) 49–53.

[15] Z. Chen, U. Gandhi, J. Lee, R.H. Wagoner, J. Mat. Proc. Techn. 227 (2016) 227–243.

[16] D. Jocham, S. Vitzthum, T. Susumu, W. Annika, V. Wolfram, 9th Forming Technology Forum (2016).

[17] W. Oliferuk, M. Maj, R. Litwinko, L. Urbański, European Journal of Mechanics - A/Solids 35 (2012) 111–118.

[18] R.V. Prakash, T. Pravin, T. Kathirvel, K. Balasubramaniam, Theoretical and Applied Fracture Mechanics 56 (2011) 1–6.

DOI: 10.1016/j.tafmec.2011.09.001

[19] C. Chandraprakash, C.V. Krishnamurthy, K. Balasubramaniam, Trans Indian Inst Met 72 (2019) 2905–2915.

DOI: 10.1007/s12666-019-01656-6

[20] I. Jandrlić, S. Rešković, F. Vodopivec, P. Lava, Met. Mater. Int. 22 (2016) 407–412.

DOI: 10.1007/s12540-016-5467-1

[21] S. Vitzthum, C. Hartmann, M. Eder, W. Volk, Procedia Manufacturing 29 (2019) 490–497.

[22] Deutsches Institut für Normung e.V., Metallic materials - Calibration of extensometer systems used in uniaxial testing: German version EN ISO 9513:2012, (2013).

[23] Deutsches Institut für Normung e.V., Prüfung metallischer Werkstoffe - Zugproben, 50125th ed., Berlin, Beuth Verlag GmbH, (2009).

[24] kloeckner metals, DP Steel: Why is Dual Phase Steel Important to Autos? www.kloecknermetals.com/blog/dp-steel-why-is-dual-phase-steel-important-to-autos/.

DOI: 10.1520/a1088-13r19

[25] W. Volk, P. Hora, Int J Mater Form 4 (2011) 339–346.
