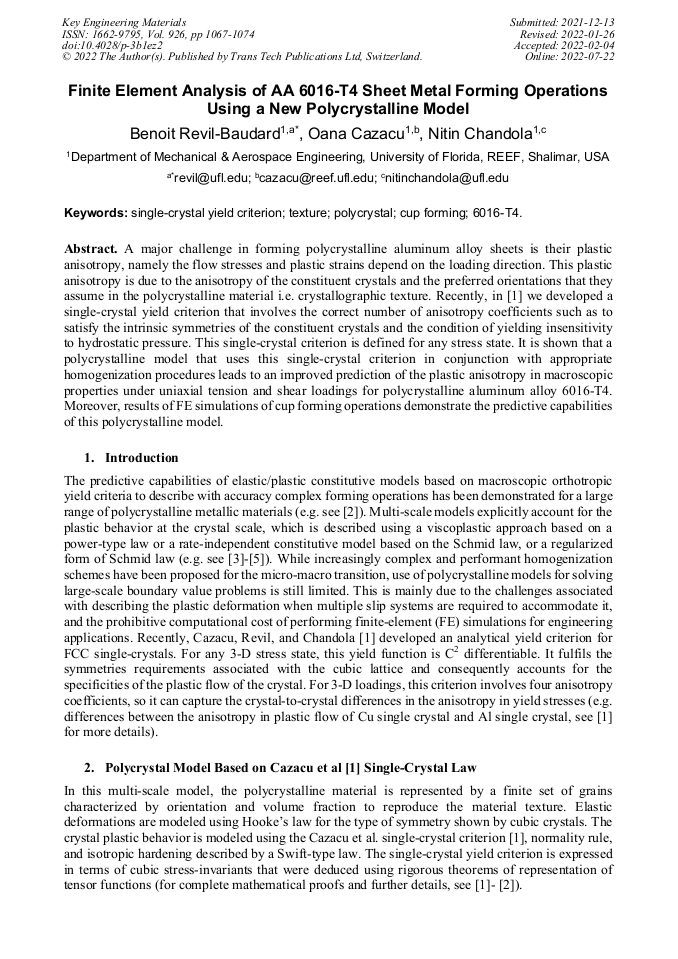

Finite Element Analysis of AA 6016-T4 Sheet Metal Forming Operations Using a New Polycrystalline Model

Abstract:

A major challenge in forming polycrystalline aluminum alloy sheets is their strong plastic anisotropy, namely the flow stresses and plastic strains depend on the loading direction. This plastic anisotropy is due to the anisotropy of the constituent crystals and the preferred orientations that they assume in the polycrystalline material i.e. crystallographic texture. Recently, in [1] we developed a single-crystal yield criterion that involves the correct number of anisotropy coefficients such as to satisfy the intrinsic symmetries of the constituent crystals and the condition of yielding insensitivity to hydrostatic pressure. This single-crystal criterion is defined for any stress state. It is shown that a polycrystalline model that uses this single-crystal criterion in conjunction with appropriate homogenization procedures leads to an improved prediction of the plastic anisotropy in macroscopic properties under uniaxial tension and shear loadings for polycrystalline aluminum alloy 6016-T4. Moreover, results of FE simulations of cup forming operations demonstrate the predictive capabilities of this polycrystalline model.

• Periodical: Key Engineering Materials (Volume 926)
• Pages: 1067-1074
• DOI: https://doi.org/10.4028/p-3b1ez2
• Online since: July 2022
• Authors: Benoit Revil-Baudard*, Oana Cazacu, Nitin Chandola
• Keywords: 6016-T4, Cup Forming, Polycrystal, Single-Crystal Yield Criterion, Texture

References

[1] O. Cazacu, B. Revil-Baudard, N. Chandola, A yield criterion for cubic single crystals, Int J Solids Struct. 151 (2018) 9-19.

DOI: 10.1016/j.ijsolstr.2017.04.006

[2] O. Cazacu, B.Revil-Baudard Plasticity of Metallic Materials: Modeling and Applications to Forming, Elsevier, (2020).

[3] O. Cazacu, B. Revil-Baudard, N. Chandola, Plasticity-Damage Couplings: From Single Crystal to Polycrystalline Materials, Springer International Publishing, (2019).

DOI: 10.1007/978-3-319-92922-4

[4] N. Chandola, O. Cazacu, B. Revil-Baudard, Prediction of plastic anisotropy of textured polycrystalline sheets using a new single-crystal model, CR Mecanique, 346 (2018) 756-769.

DOI: 10.1016/j.crme.2018.05.004

[5] E. Schmid, W. Boas, W. Plasticity of crystals, (1950).

[6] Habraken, A.M. et al Analysis of ESAFORM 2021 cup drawing benchmark of an Al alloy, critical factors for accuracy and efficiency of FE simulations, International Journal Material Forming, 2022 (submitted).

[7] L. F. Menezes, C. Teodosiu. Three-dimensional numerical simulation of the deep-drawing process using solid finite elements. Journal of materials processing technology, 97 (2002) 100-106.

DOI: 10.1016/s0924-0136(99)00345-3
