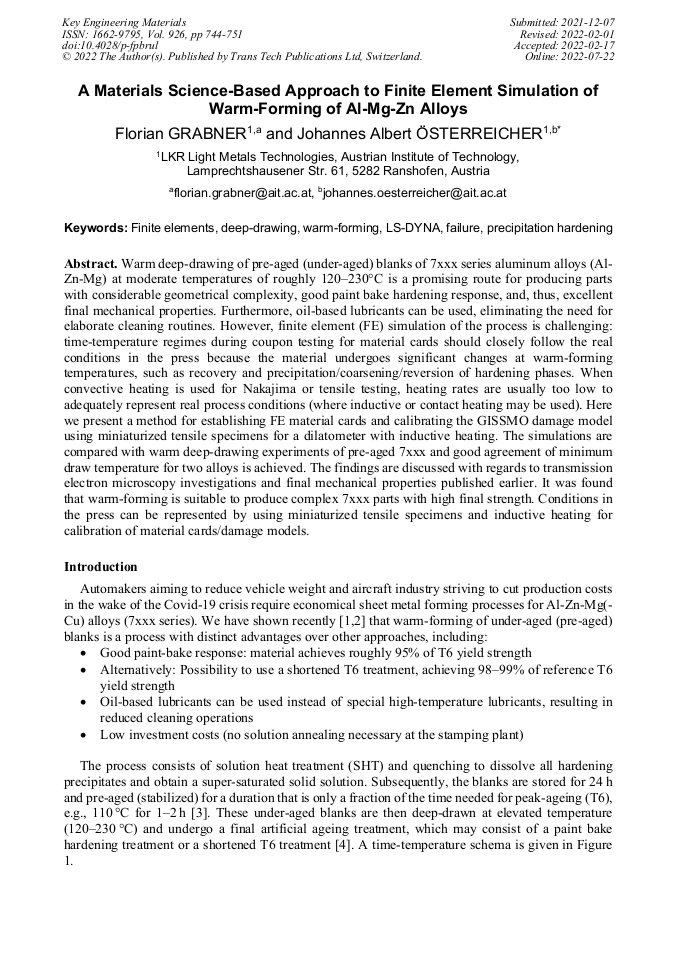

A Materials Science-Based Approach to Finite Element Simulation of Warm-Forming of Al-Mg-Zn Alloys

Abstract:

Warm deep-drawing of pre-aged (under-aged) blanks of 7xxx series aluminum alloys (Al-Zn-Mg) at moderate temperatures of roughly 120–230°C is a promising route for producing parts with considerable geometrical complexity, good paint bake hardening response, and, thus, excellent final mechanical properties. Furthermore, oil-based lubricants can be used, eliminating the need for elaborate cleaning routines. However, finite element (FE) simulation of the process is challenging: time-temperature regimes during coupon testing for material cards should closely follow the real conditions in the press because the material undergoes significant changes at warm-forming temperatures, such as recovery and precipitation/coarsening/reversion of hardening phases. When convective heating is used for Nakajima or tensile testing, heating rates are usually too low to adequately represent real process conditions (where inductive or contact heating may be used). Here we present a method for establishing FE material cards and calibrating the GISSMO damage model using miniaturized tensile specimens for a dilatometer with inductive heating. The simulations are compared with warm deep-drawing experiments of pre-aged 7xxx and good agreement of minimum draw temperature for two alloys is achieved. The findings are discussed with regards to transmission electron microscopy investigations and final mechanical properties published earlier. It was found that warm-forming is suitable to produce complex 7xxx parts with high final strength. Conditions in the press can be represented by using miniaturized tensile specimens and inductive heating for calibration of material cards/damage models.

• Periodical: Key Engineering Materials (Volume 926)
• Pages: 744-751
• DOI: https://doi.org/10.4028/p-fpbrul
• Online since: July 2022
• Authors: Florian Grabner, Johannes Österreicher*
• Keywords: Deep-Drawing, Failure, Finite Elements, LS-DYNA, Precipitation Hardening, Warm-Forming

References

[1] J.A. Österreicher, F. Grabner, M.A. Tunes, D.S.R. Coradini, S. Pogatscher, C.M. Schlögl, Two step–ageing of 7xxx series alloys with an intermediate warm-forming step, J. Mater. Res. Technol. 12 (2021) 1508–1515.

DOI: 10.1016/j.jmrt.2021.03.062

[2] J.A. Österreicher, M.A. Tunes, F. Grabner, A. Arnoldt, T. Kremmer, S. Pogatscher, C.M. Schlögl, Warm-forming of pre-aged Al-Zn-Mg-Cu alloy sheet, Mater. Des. 193 (2020) 108837.

DOI: 10.1016/j.matdes.2020.108837

[3] J.A. Österreicher, G. Kirov, S.S. Gerstl, E. Mukeli, F. Grabner, M. Kumar, Stabilization of 7xxx aluminium alloys, J. Alloys Compd. 740 (2018) 167–173.

DOI: 10.1016/j.jallcom.2018.01.003

[4] N.R. Harrison, S.G. Luckey, B. Cappuccilli, G. Kridli, Paint Bake Influence on AA7075 and AA7085, SAE Technical Paper, 2017.

DOI: 10.4271/2017-01-1265

[5] F. Neukamm, M. Feucht, A. Haufe, K. Roll, On Closing the Constitutive Gap Between Forming and Crash Simulation, in: 10th International LS-DYNA Users Conference, (2008).

[6] Testing under temperature with ZwickRoell's temperature chambers, https://www.zwickroell.com/accessories/temperature-and-climate/temperature-chambers/ (accessed Dec. 07, 2021).

[7] Z. Feng, C. Liu, P. Ma, J. Yang, K. Chen, G. Li, L. Chen, Z. Huang, Initial holding time dependent warm deformation and post-ageing precipitation in an AA7075-T4 aluminum alloy, J. Mater. Proc. Technol. 294 (2021) 117111.

DOI: 10.1016/j.jmatprotec.2021.117111

[8] C.P. Ferrer, M.G. Koul, B.J. Connolly, A.L. Moran, Improvements in Strength and Stress Corrosion Cracking Properties in Aluminum Alloy 7075 via Low-Temperature Retrogression and Re-Aging Heat Treatments, Corrosion 59 (2003).

DOI: 10.5006/1.3277583

[9] R. Long, E. Boettcher, D. Crawford, Current and future uses of aluminum in the automotive industry, JOM 69 (2017) 2635–2639.

DOI: 10.1007/s11837-017-2554-9

[10] K.E. Rader, J.T. Carter, L.G. Hector, E.M. Taleff, Retrogression and Reaging of AA7075 and AA6013 Aluminum Alloys, Metall. Mater. Trans. A 52 (2021) 1006–1018.

DOI: 10.1007/s11661-020-06133-0

[11] M.B. Gorji, D. Mohr, Micro-tension and micro-shear experiments to characterize stress-state dependent ductile fracture, Acta Mater. 131 (2017) 65–76.

DOI: 10.1016/j.actamat.2017.03.034

[12] J. Lin, X. Bao, Y. Hou, J. Min, X. Qu, Z. Tao, J. Chen, Investigation on Yield Behavior of 7075-T6 Aluminum Alloy at Elevated Temperatures, Chin. J. Mech. Eng. 33 (2020) 76.

DOI: 10.1186/s10033-020-00494-8

[13] N. Wang, A. Ilinich, M. Chen, G. Luckey, G. D'Amours, A comparison study on forming limit prediction methods for hot stamping of 7075 aluminum sheet, Int. J. Mech. Sci. 151 (2019) 444–460.

DOI: 10.1016/j.ijmecsci.2018.12.002

[14] E. Stockburger, H. Wester, J. Uhe, K. Brunotte, B.-A. Behrens, in: J.P. Wulfsberg, W. Hintze, B.-A. Behrens (Eds.), Production at the Leading Edge of Technology, Springer, Berlin, Heidelberg, 2019, p.159–168.
