Outdoor Experimental Investigation of the Temperature Effect on the Performance of Different PV Modules Materials

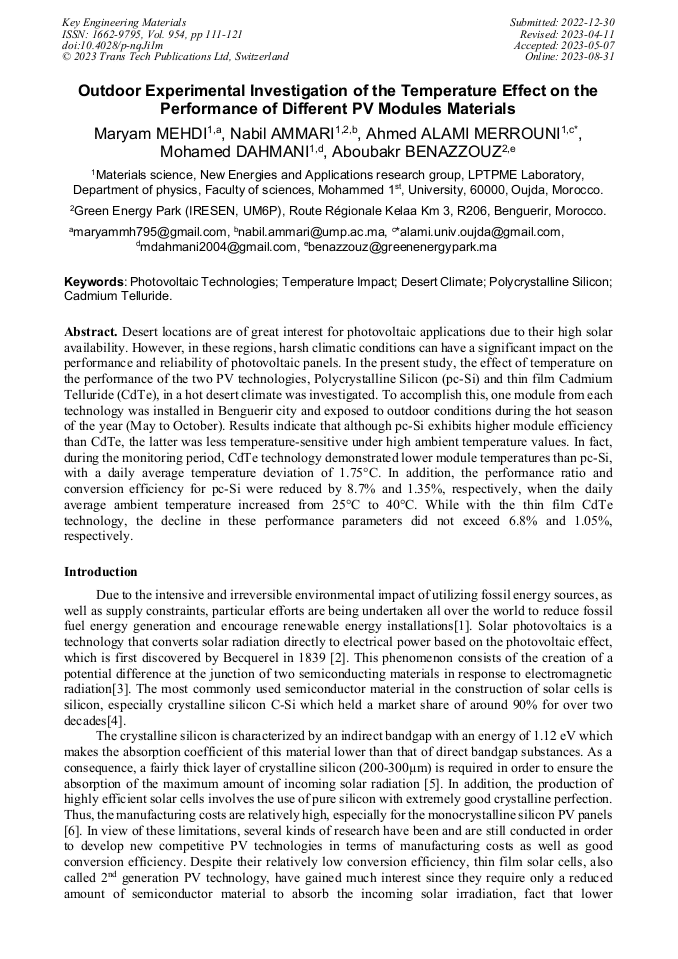

Article Preview

Abstract:

Desert locations are of great interest for photovoltaic applications due to their high solar availability. However, in these regions, harsh climatic conditions can have a significant impact on the performance and reliability of photovoltaic panels. In the present study, the effect of temperature on the performance of the two PV technologies, Polycrystalline Silicon (pc-Si) and thin film Cadmium Telluride (CdTe), in a hot desert climate was investigated. To accomplish this, one module from each technology was installed in Benguerir city and exposed to outdoor conditions during the hot season of the year (May to October). Results indicate that although pc-Si exhibits higher module efficiency than CdTe, the latter was less temperature-sensitive under high ambient temperature values. In fact, during the monitoring period, CdTe technology demonstrated lower module temperatures than pc-Si, with a daily average temperature deviation of 1.75°C. In addition, the performance ratio and conversion efficiency for pc-Si were reduced by 8.7% and 1.35%, respectively, when the daily average ambient temperature increased from 25°C to 40°C. While with the thin film CdTe technology, the decline in these performance parameters did not exceed 6.8% and 1.05%, respectively.

You might also be interested in these eBooks

The International Congress on Educational Research, Materials Science and Engineering

Protection Materials and Energy Engineering

Info:

Periodical:

Key Engineering Materials (Volume 954)

Pages:

111-121

DOI:

https://doi.org/10.4028/p-nqJi1m

Citation:

Cite this paper

Online since:

August 2023

Authors:

Maryam Mehdi*, Nabil Ammari, Ahmed Alami Merrouni, Mohamed Dahmani, Aboubakr Benazzouz

Keywords:

Cadmium Telluride, Desert Climate, Photovoltaic Technologies, Polycrystalline Silicon, Temperature Impact

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2023 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] S. M. Grodsky, "Matching renewable energy and conservation targets for a sustainable future," One Earth, vol. 4, no. 7, p.924–926, 2021.

DOI: 10.1016/j.oneear.2021.07.001

[2] P.G.V. Sampaio and M.O.A. González, "Photovoltaic solar energy: Conceptual framework," Renew. Sustain. Energy Rev., vol. 74, p.590–601, Jul. 2017.

DOI: 10.1016/j.rser.2017.02.081

[3] A. Goetzberger, J. Luther, and G. Willeke, "Solar cells: past, present, future," Sol. Energy Mater. Sol. Cells, vol. 74, no. 1, p.1–11, Oct. 2002.

DOI: 10.1016/S0927-0248(02)00042-9

[4] X. Wang, X. Tian, X. Chen, L. Ren, and C. Geng, "A review of end-of-life crystalline silicon solar photovoltaic panel recycling technology," Sol. Energy Mater. Sol. Cells, vol. 248, p.111976, Dec. 2022.

DOI: 10.1016/j.solmat.2022.111976

[5] A. Smets, K. Jäger, O. Isabella, R. van Swaaij, and M. Zeman, Solar Energy: The Physics and Engineering of Photovoltaic Conversion, Technologies and Systems. UIT Cambridge, 2016.

[6] S. Glunz, R. Preu, and D. Biro, "Crystalline Silicon Solar Cells: State-of-the-Art and Future Developments," in Comprehensive Renewable Energy, 2012, p.353–387.

DOI: 10.1016/B978-0-08-087872-0.00117-7

[7] B. Parida, S. Iniyan, and R. Goic, "A review of solar photovoltaic technologies," Renew. Sustain. Energy Rev., vol. 15, no. 3, p.1625–1636, Apr. 2011.

DOI: 10.1016/j.rser.2010.11.032

[8] A. G. Aberle, "Thin-film solar cells," Thin Solid Films, vol. 517, no. 17, p.4706–4710, Jul. 2009.

DOI: 10.1016/j.tsf.2009.03.056

[9] "Prospects of novel front and back contacts for high efficiency cadmium telluride thin film solar cells from numerical analysis | Elsevier Enhanced Reader." https://reader.elsevier.com/reader/sd/pii/S0927024810000954?token=0739195DDA42DC11B5CDC393FAAA60B9B625F1182686DEF3F82B3C55DAAFD17BDC003E16593559086F07124B0C6486FF&originRegion=eu-west-1&originCreation=20221210092448 (accessed Dec. 10, 2022).

DOI: 10.1016/j.solmat.2010.02.042

[10] R. W. Birkmire and B. E. McCandless, "CdTe thin film technology: Leading thin film PV into the future," Curr. Opin. Solid State Mater. Sci., vol. 14, no. 6, p.139–142, Dec. 2010.

DOI: 10.1016/j.cossms.2010.08.002

[11] F. Perin Gasparin, F. Detzel Kipper, F. Schuck de Oliveira, and A. Krenzinger, "Assessment on the variation of temperature coefficients of photovoltaic modules with solar irradiance," Sol. Energy, vol. 244, p.126–133, Sep. 2022.

DOI: 10.1016/j.solener.2022.08.052

[12] T. Adrada Guerra, J. Amador Guerra, B. Orfao Tabernero, and G. De la Cruz García, "Comparative Energy Performance Analysis of Six Primary Photovoltaic Technologies in Madrid (Spain)," Energies, vol. 10, no. 6, Art. no. 6, Jun. 2017.

DOI: 10.3390/en10060772

[13] M. Adouane, A. Al-Qattan, B. Alabdulrazzaq, and A. Fakhraldeen, "Comparative performance evaluation of different photovoltaic modules technologies under Kuwait harsh climatic conditions," Energy Rep., vol. 6, p.2689–2696, Nov. 2020.

DOI: 10.1016/j.egyr.2020.09.034

[14] P. Singh, S. N. Singh, M. Lal, and M. Husain, "Temperature dependence of I–V characteristics and performance parameters of silicon solar cell," Sol. Energy Mater. Sol. Cells, vol. 92, no. 12, p.1611–1616, Dec. 2008.

DOI: 10.1016/j.solmat.2008.07.010

[15] K. Nishioka, T. Hatayama, Y. Uraoka, T. Fuyuki, R. Hagihara, and M. Watanabe, "Field-test analysis of PV system output characteristics focusing on module temperature," Sol. Energy Mater.Sol.Cells, vol. 75, no. 3, p.665–671, Feb. 2003.

DOI: 10.1016/S0927-0248(02)00148-4

[16] P. M. Congedo, M. Malvoni, M. Mele, and M. G. De Giorgi, "Performance measurements of monocrystalline silicon PV modules in South-eastern Italy," Energy Convers. Manag., vol. 68, p.1–10, Apr. 2013.

DOI: 10.1016/j.enconman.2012.12.017

[17] Merrouni, A.A., Ghennioui, A., Wolfertstetter, F. and Mezrhab, A., 2017, June. The uncertainty of the HelioClim-3 DNI data under Moroccan climate. In AIP Conference proceedings (Vol. 1850, No. 1, p.140002). AIP Publishing LLC.

DOI: 10.1063/1.4984510

[18] L. R. do Nascimento, M. Braga, R. A. Campos, H. F. Naspolini, and R. Rüther, "Performance assessment of solar photovoltaic technologies under different climatic conditions in Brazil," Renew. Energy, vol. 146, p.1070–1082, Feb. 2020.

DOI: 10.1016/j.renene.2019.06.160

[19] Merrouni, A.A., Mezrhab, A., Moussaoui, M.A. and lahoussine Ouali, H.A., 2016. Integration of PV in the Moroccan buildings: Simulation of a small roof system installed in Eastern Morocco. International Journal of Renewable Energy Research (IJRER), 6(1), pp.306-314..

DOI: 10.20508/ijrer.v6i1.2997.g6787

[20] I. omar Nour-eddine, B. Lahcen, O. H. Fahd, B. Amin, and O. Aziz, "Outdoor performance analysis of different PV technologies under hot semi-arid climate," Energy Rep., vol. 6, p.36–48, Nov. 2020.

DOI: 10.1016/j.egyr.2020.08.023

[21] D. Atsu, I. Seres, and I. Farkas, "The state of solar PV and performance analysis of different PV technologies grid-connected installations in Hungary," Renew. Sustain. Energy Rev., vol. 141, p.110808, May 2021.

DOI: 10.1016/j.rser.2021.110808

[22] C. E. B. Elhadj Sidi, M. L. Ndiaye, M. El Bah, A. Mbodji, A. Ndiaye, and P. A. Ndiaye, "Performance analysis of the first large-scale (15MWp) grid-connected photovoltaic plant in Mauritania," Energy Convers. Manag., vol. 119, p.411–421, Jul. 2016.

DOI: 10.1016/j.enconman.2016.04.070

[23] A. Abdallah, D. Martinez, B. Figgis, and O. El Daif, "Performance of Silicon Heterojunction Photovoltaic modules in Qatar climatic conditions," Renew. Energy, vol. 97, p.860–865, Nov. 2016.

DOI: 10.1016/j.renene.2016.06.044

[24] N. Sahouane et al., "Energy and economic efficiency performance assessment of a 28 kWp photovoltaic grid-connected system under desertic weather conditions in Algerian Sahara," Renew. Energy, vol. 143, p.1318–1330, Dec. 2019.

DOI: 10.1016/j.renene.2019.05.086

[25] I. omar Nour-eddine, B. Lahcen, O. H. Fahd, B. Amin, and O. Aziz, "Outdoor performance analysis of different PV technologies under hot semi-arid climate," Energy Rep., vol. 6, p.36–48, Nov. 2020.

DOI: 10.1016/j.egyr.2020.08.023
