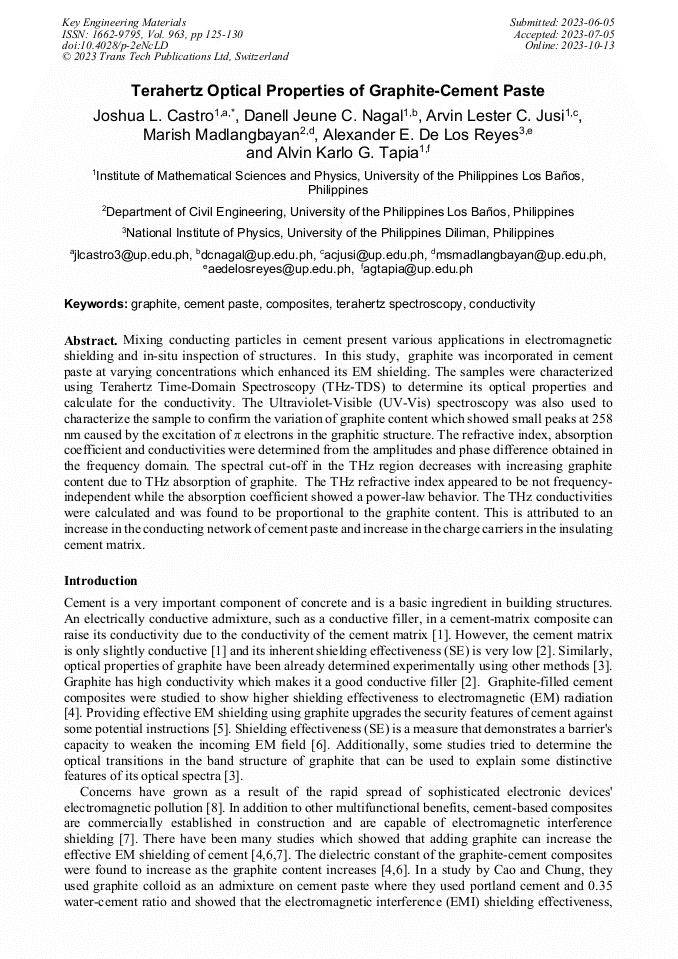

Terahertz Optical Properties of Graphite-Cement Paste

Abstract:

Mixing conducting particles in cement present various applications in electromagnetic shielding and in-situ inspection of structures. In this study, graphite was incorporated in cement paste at varying concentrations which enhanced its EM shielding. The samples were characterized using Terahertz Time-Domain Spectroscopy (THz-TDS) to determine its optical properties and calculate for the conductivity. The Ultraviolet-Visible (UV-Vis) spectroscopy was also used to characterize the sample to confirm the variation of graphite content which showed small peaks at 258 nm caused by the excitation of π electrons in the graphitic structure. The refractive index, absorption coefficient and conductivities were determined from the amplitudes and phase difference obtained in the frequency domain. The spectral cut-off in the THz region decreases with increasing graphite content due to THz absorption of graphite. The THz refractive index appeared to be not frequency-independent while the absorption coefficient showed a power-law behavior. The THz conductivities were calculated and was found to be proportional to the graphite content. This is attributed to an increase in the conducting network of cement paste and increase in the charge carriers in the insulating cement matrix.

• Periodical: Key Engineering Materials (Volume 963)
• Pages: 125-130
• DOI: https://doi.org/10.4028/p-2eNcLD
• Online since: October 2023
• Authors: Joshua Libre Castro*, Danell Jeune C. Nagal, Arvin Lester C. Jusi, Marish Madlangbayan, Alexander E. De Los Reyes, Alvin Karlo Garcia Tapia
• Keywords: Cement Paste, Composites, Conductivity, Graphite, Terahertz Spectroscopy

References

[1] D.D.L. Chung, in: Electrically conductive cement-based materials (Advances in Cement Research,16, 4, 167-176, 2004).

DOI: 10.1680/adcr.16.4.167.46658

[2] H.Guan, S.Liu, Y.Duan and J.Cheng in: Cement based electromagnetic shielding and absorbing building materials (Cement and Concrete Composites, 28, 468-474, 2006).

DOI: 10.1016/j.cemconcomp.2005.12.004

[3] A.Djurisic and E. Herbert Li, in: Optical properties of graphite (Journal of Applied Physics, 85:10, 7404-7410, 1999).

[4] S.Bhattacharya, V.K. Sachdev, R.Chatterjee, and R.P. Tandon, in: Decisive properties of graphite-filled cement composites for device application (Applied Physics A, Materials Science & Processing, 92, 417–420, 2008).

DOI: 10.1007/s00339-008-4544-9

[5] K.S. Moon, H.D. Choi, A.K. Lee, K.Y. Cho, H.G. Yoon, and K.S. Suh, in: Dielectric Properties of Epoxy-Dielectrics-Carbon Black Composite for Phantom Materials at Radio Frequencies (Journal of Applied Polymer Science, 77, 1294–1302, 2000).

DOI: 10.1002/1097-4628(20000808)77:6<1294::aid-app14>3.0.co;2-e

[6] S.K. Yee, and M.Jenu, in: Electromagnetic Shielding Of Cement-Graphite Powder Between 100 To 2000 MHz (ARPN Journal of Engineering and Applied Sciences, 10:18, 8404-8407, 2015).

[7] V.K. Sachdev, S.K. Sharma, S.Bhattacharya, K.Patel, N.C. Mehra1, V.Gupta1, and R.P. Tandon, in: Electromagnetic shielding performance of graphite in cement matrix for applied application (Advance Materials Letter, 6:11, 965-972, 2015).

DOI: 10.5185/amlett.2015.5935

[8] J.Cao and D.D.L. Chung in: Colloidal graphite as an admixture in cement and as a coating on cement for electromagnetic interference shielding (Cement and Concrete Research, 33, 1737 – 1740, 2003).

DOI: 10.1016/s0008-8846(03)00152-2

[9] A.Abina, U.Puc, A.Jeglic and A. Zidansek in: Applications of Terahertz Spectroscopy in the Field of Construction and Building Materials, Applied Spectroscopy Reviews, 50:4, 279-303, Taylor & Francis, 2014).

DOI: 10.1080/05704928.2014.965825

[10] D. Mittleman: Sensing with terahertz radiation (Springer Series in Optical Sciences, 2003).

[11] J. Dong, B. Kim, A. Locquet, P. McKeon, N. Declercq, & D.S. Citrin: Nondestructive evaluation of forced delamination in glass fiber-reinforced composites by terahertz and ultrasonic waves (Composites Part B: Engineering, 79, 667–675, 2015).

DOI: 10.1016/j.compositesb.2015.05.028

[12] F.F. Sizov, in: Brief history of THz and IR technologies (Semiconductor Physics Quantum Electronics & Optoelectronics, 2019)

[13] M. Tonouchi, in: Cutting-edge terahertz technology (Nature Photonics I, 97-105, 2007).

[14] A.K.G. Tapia and K.Tominaga, in: Conduction in polyaniline emeraldine salt in the terahertz region: A temperature dependence study (Chemical Physics Letters, 775, 63-67, 2014).

DOI: 10.1016/j.cplett.2014.02.055

[15] J.Zeitler, P.Taday, D.Newnham, M.Pepper, K.Gordon and T. Rades, in: Terahertz pulsed spectroscopy and imaging in the pharmaceutical setting – a review (Journal of Pharmacy and Pharmacology, 59:2, 209-223, 2008).

DOI: 10.1211/jpp.59.2.0008

[16] A.Nakanishi and H.Satozono, in: Terahertz optical properties of wood-plastic composites (Applied Optics, 59, 904-909, 2020).

DOI: 10.1364/ao.379758

[17] Z.Ji, J.Wu, X.Shen, H.Zhou and H.Xi, in: Preparation and characterization of graphene/NiO nanocomposites (Journal of materials science, 46(5), 1190-1195, 2011).

DOI: 10.1007/s10853-010-4892-7

[18] N.F. Mott and E.A. Davis, in: Electronic Processes Non-Crystalline Materials (Oxford University Press, Oxford, 1979).

[19] A.K.G. Tapia and K.Tominaga, in: Temperature dependence of thz conductivity in polyaniline emeraldine salt-polyethylene pellets (Journal of Infrared, Millimeter, and Terahertz Waves, 41(3), 258-264, 2020).

DOI: 10.1007/s10762-019-00650-9
