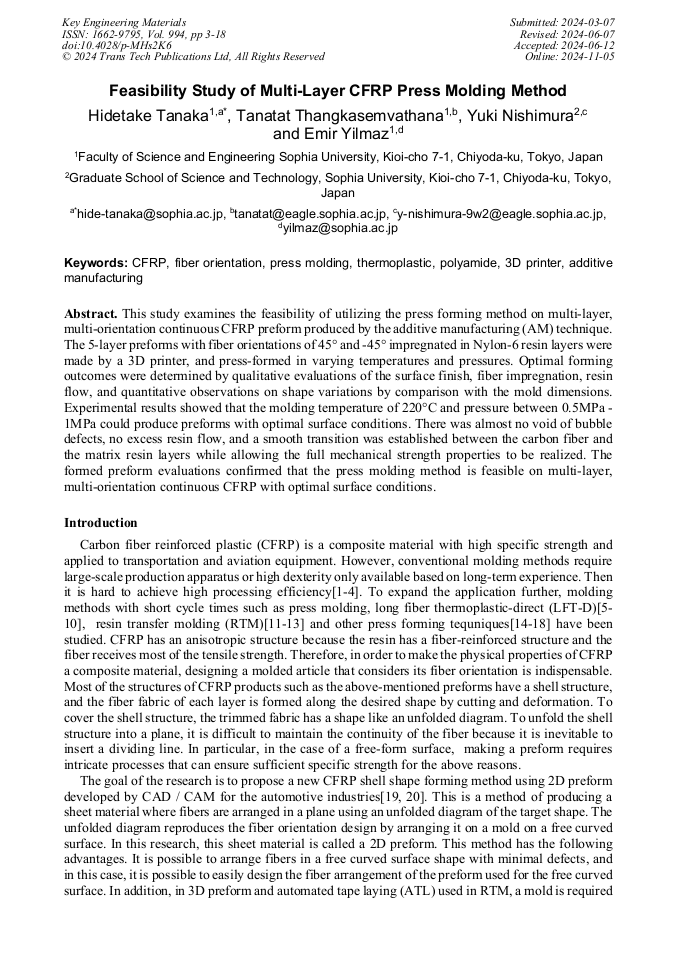

Feasibility Study of Multi-Layer CFRP Press Molding Method

Abstract:

This study examines the feasibility of utilizing the press forming method on multi-layer, multi-orientation continuous CFRP preform produced by the additive manufacturing (AM) technique. The 5-layer preforms with fiber orientations of 45° and -45° impregnated in Nylon-6 resin layers were made by a 3D printer, and press-formed in varying temperatures and pressures. Optimal forming outcomes were determined by qualitative evaluations of the surface finish, fiber impregnation, resin flow, and quantitative observations on shape variations by comparison with the mold dimensions. Experimental results showed that the molding temperature of 220°C and pressure between 0.5MPa - 1MPa could produce preforms with optimal surface conditions. There was almost no void of bubble defects, no excess resin flow, and a smooth transition was established between the carbon fiber and the matrix resin layers while allowing the full mechanical strength properties to be realized. The formed preform evaluations confirmed that the press molding method is feasible on multi-layer, multi-orientation continuous CFRP with optimal surface conditions.

• Periodical: Key Engineering Materials (Volume 994)
• Pages: 3-18
• DOI: https://doi.org/10.4028/p-MHs2K6
• Online since: November 2024
• Authors: Hidetake Tanaka*, Tanatat Thangkasemvathana, Yuki Nishimura, Emir Yilmaz
• Keywords: 3D Printer, Additive Manufacturing, CFRP, Fiber Orientation, Polyamide, Press Molding, Thermoplastic

References

[1] C. Soutis, Carbon fiber reinforced plastics in aircraft construction, Materials Science and Engineering: A, Vol. 412, Issues 1–2, (2005), 171-176.

DOI: 10.1016/j.msea.2005.08.064

[2] M. Hou, Stamp forming of continuous glass fibre reinforced polypropylene, Composites Part A: Applied Science and Manufacturing, Vol. 28, Issue 8, (1997), 695-702.

DOI: 10.1016/s1359-835x(97)00013-4

[3] S. Hineno, T. Yoneyama, D. Tatsuno, M. Kimura, K. Shiozaki, T. Moriyasu, M. Okamoto, S. Nagashima, Deformation Behavior during Press Forming of Rectangle Cup by Using Plane Weave Carbon Fiber Reinforced Thermoplastic Sheet, Procedia Eng., 81, (2014) 1614.

DOI: 10.1016/j.proeng.2014.10.199

[4] S. Isogawa, H. Aoki, M. Tajima, Isothermal Forming of CFRTP Sheet by Penetration of Hemispherical Punch Fiber, Procedia Eng., 81, (2014) 1620.

DOI: 10.1016/j.proeng.2014.10.201

[5] T. Ishikawa, K. Amaoka, Y. Masubuchi, T. Yamamoto, A. Yamanaka, M. Arai, and J. Takahashi, Overview of automotive structural composites technology developments in Japan, Composites Science and Technology, Vol.155, (2018), 221-246.

DOI: 10.1016/j.compscitech.2017.09.015

[6] W. Krause, F. Henning, S. Tröster, O. Geiger, and P. Eyerer, LFT-D — A Process Technology for Large Scale Production of Fiber Reinforced Thermoplastic Components, J. of Thermoplastic Composite Materials, Vol.16, No.4, (2003), 289-302.

DOI: 10.1177/0892705703016004001

[7] O. Geiger, F. Henning, P. Eyerer, R. Brüssel, and H. Ernst, LFT-D: materials tailored for new applications, Reinforced Plastics, Vol.50, Issue 1, (2006), 30-35.

DOI: 10.1016/s0034-3617(06)70870-0

[8] M. Murashima, T. Murooka, N. Umehara, and T. Tokoroyama, Development of Surface Roughness Generation Model for CFRTP Manufactured by LFT-D, Int. J. Automation Technol., Vol.14, No.2, (2020), 208-216.

DOI: 10.20965/ijat.2020.p0208

[9] Schelleis, Christoph, Benedikt M. Scheuring, Wilfried V. Liebig, Andrew N. Hrymak, and Frank Henning, Approaching Polycarbonate as an LFT-D Material: Processing and Mechanical Properties, Polymers 15, no. 9, (2023), 2041.

DOI: 10.3390/polym15092041

[10] SCHELLEIS Christoph, HRYMAK Andrew, HENNING Frank, Optimizing processing parameters for glass fiber reinforced polycarbonate LFT-D composites, Proc. of SAMPE Europe Conf., (2023).

[11] Yunfei Peng, Maojun Li, Xujing Yang, Void formation and suppression in CFRP laminate using newly designed ultrasonic vibration assisted RTM technique, Composite Structures, Vol. 329, (2024),117796.

DOI: 10.1016/j.compstruct.2023.117796

[12] Chun Yan, Jun Wei, Yingdan Zhu, Haibing Xu, Dong Liu, Gang Chen, Xiaoqing Liu, Jinyue Dai, Dongxi Lv, Preparation and properties of carbon fiber reinforced bio-based degradable acetal-linkage-containing epoxy resin composites by RTM process, PPLYMER COMPOSITE, Vol. 44, Issue 7, (2023), 4081-4094.

DOI: 10.1002/pc.27381

[13] Julen Mendikute, Maider Baskaran, Iñigo Llavori, Ekhi Zugasti, Laurentzi Aretxabaleta, Jon Aurrekoetxea, Predicting the effect of voids generated during RTM on the low-velocity impact behaviour by machine learning-based surrogate models, Composites Part B: Engineering, Vol. 260, (2023), 110790.

DOI: 10.1016/j.compositesb.2023.110790

[14] Tatsuno, D., Yoneyama, T., Satake, R., Belt-Press Tape Forming of Carbon-Fiber-Reinforced Thermoplastic. J. of Materi Eng and Perform 30, (2021), 357–366.

DOI: 10.1007/s11665-020-05401-9

[15] Daichi Tatsuno, Takeshi Yoneyama, Misaki Kuga, Hayato Hashimoto, Fiber deformation behavior of discontinuous CFRTP in gear forging, International Journal of Material Forming Vol.14, No. 6, (2021), 947–960.

DOI: 10.1007/s12289-021-01611-1

[16] Tatsuno, D., Yoneyama, T., Kinari, T., Braid-press forming for manufacturing thermoplastic CFRP tube, Int. J. Mater. Form. Vol. 14, (2021), 753–762.

DOI: 10.1007/s12289-020-01584-7

[17] Tanaka, Kazuto, and Masaki Taniguchi, Effects of the Injection Material and Resin Layer on the Mechanical Properties of Carbon Fiber-Reinforced Thermoplastic (CFRTP) Press and Injection Hybrid Molded Parts" Journal of Composites Science 8, no. 2, (2024), 56.

DOI: 10.3390/jcs8020056

[18] Madhura Limaye, Sai Aditya Pradeep, Anmol Kothari, Sushil Savla, Akshat Agha, Srikanth Pilla, Gang Li, Thermoforming process effects on structural performance of carbon fiber reinforced thermoplastic composite parts through a manufacturing to response pathway, Composites Part B: Engineering, Vol. 235, (2022), 109728.

DOI: 10.1016/j.compositesb.2022.109728

[19] I. Tatsuki and H. Tanaka, Development of Press Molding Preform Design and Fabrication Method with Unfolded Diagram for CFRP, International Journal of Automation Technology, 13, (2019), 301–309.

DOI: 10.20965/ijat.2019.p0301

[20] Hidetake Tanaka, Yuki Nishimura, Tatsuki Ikari, Yilmaz Emir, Fundamental Study of Press Molding Method for CFRTP Preform using a 3D printer, International Journal of Automation Technology, Vol. 18, No. 1, (2024), 128-134.

DOI: 10.20965/ijat.2024.p0128

[21] Keigo TAKASUGI, Takuya KUMASAKA, Naoki ASAKAWA, Development of Platform-Independent Open CAM Kernel, Proceedings of International Conference on Leading Edge Manufacturing in 21st century (LEM21), (2011), ID 3354.

DOI: 10.1299/jsmelem.2011.6._3354-1_

[22] Morgan, Robert Vaughn, McReynolds, Brandon, Husmann, Katheryn, McCoy, John, Maki, Ryan Nicholas, Holguin, Ryan Matthew, Bernardin, John David, and Siranosian, Antranik Antonio, Markforged Continuous Fiber Composite Material Testing, Technical Report, United States, (2020).

DOI: 10.2172/1641543
