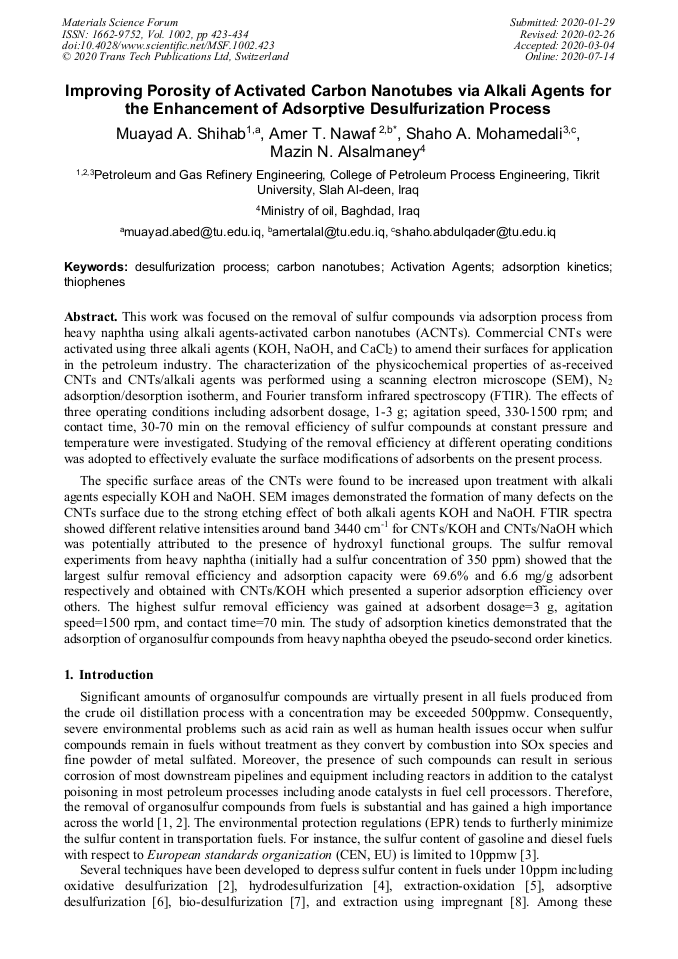

Improving Porosity of Activated Carbon Nanotubes via Alkali Agents for the Enhancement of Adsorptive Desulfurization Process

Abstract:

This work was focused on the removal of sulfur compounds via adsorption process from heavy naphtha using alkali agents-activated carbon nanotubes (ACNTs). Commercial CNTs were activated using three alkali agents (KOH, NaOH, and CaCl₂) to amend their surfaces for application in the petroleum industry. The characterization of the physicochemical properties of as-received CNTs and CNTs/alkali agents was performed using a scanning electron microscope (SEM), N₂ adsorption/desorption isotherm, and Fourier transform infrared spectroscopy (FTIR). The effects of three operating conditions including adsorbent dosage (1-3 g), agitation speed (330-1500 rpm), and contact time (30-70 min) on the removal efficiency of sulfur compounds at constant pressure and temperature were investigated. Studying of the removal efficiency at different operating conditions was adopted to effectively evaluate the surface modifications of adsorbents on the present process. The specific surface areas of the CNTs were found to be increased upon treatment with alkali agents especially KOH and NaOH. SEM images demonstrated the formation of many defects on the CNTs surface due to the strong etching effect of both alkali agents KOH and NaOH. FTIR spectra showed different relative intensities around band 3440 cm^-1 for CNTs/KOH and CNTs/NaOH which was potentially attributed to the presence of hydroxyl functional groups. The sulfur removal experiments from heavy naphtha (initially had a sulfur concentration of 350 ppm) showed that the largest sulfur removal efficiency and adsorption capacity were 69.6% and 6.6 mg/g adsorbent respectively and obtained with CNTs/KOH which presented a superior adsorption efficiency over others. The highest sulfur removal efficiency was gained at adsorbent dosage=3 g, agitation speed=1500 rpm, and contact time=70 min. The study of adsorption kinetics demonstrated that the adsorption of organosulfur compounds from heavy naphtha obeyed the pseudo-second order kinetics

• Periodical: Materials Science Forum (Volume 1002)
• Pages: 423-434
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1002.423
• Online since: July 2020
• Authors: Muayad A. Shihab, Amer Talal Nawaf*, Shaho A. Mohamedali, Mazin N. Alsalmaney
• Keywords: Activation Agents, Adsorption Kinetics, Carbon Nanotubes, Desulfurization Process, Thiophenes

References

[1] M. Rezakazemi and Z. Zhang, 2.29 Desulfurization Materials,, in Comprehensive Energy Systems, I. Dincer, Ed. Oxford: Elsevier, 2018, pp.944-979.

DOI: 10.1016/b978-0-12-809597-3.00263-7

[2] A. T. Nawaf, S. A. Gheni, A. T. Jarullah, and I. M. Mujtaba, Improvement of fuel quality by oxidative desulfurization: Design of synthetic catalyst for the process,, Fuel Processing Technology, vol. 138, pp.337-343, 2015/10/01/ (2015).

DOI: 10.1016/j.fuproc.2015.05.033

[3] N. Brandon, E. Ruiz-Trejo, and P. Boldrin, Solid Oxide Fuel Cell Lifetime and Reliability: Critical Challenges in Fuel Cells. (2017).

DOI: 10.1016/b978-0-08-101102-7.00005-2

[4] S. Brunet, D. Mey, G. Pérot, C. Bouchy, and F. Diehl, On the hydrodesulfurization of FCC gasoline: a review,, Applied Catalysis A: General, vol. 278, no. 2, pp.143-172, 2005/01/10/ (2005).

DOI: 10.1016/j.apcata.2004.10.012

[5] C. Zhang, X. Pan, F. Wang, and X. Liu, Extraction–oxidation desulfurization by pyridinium-based task-specific ionic liquids,, Fuel, vol. 102, pp.580-584, 2012/12/01/ (2012).

DOI: 10.1016/j.fuel.2012.07.040

[6] F. Zeng, X. Liao, H. Hu, and L. Liao, Effect of potassium hydroxide activation in the desulfurization process of activated carbon prepared by sewage sludge and corn straw,, Journal of the Air & Waste Management Association, vol. 68, no. 3, pp.255-264, 2018/03/04 (2018).

DOI: 10.1080/10962247.2017.1407378

[7] M. Agarwal, P. K. Dikshit, J. B. Bhasarkar, A. J. Borah, and V. S. Moholkar, Physical insight into ultrasound-assisted biodesulfurization using free and immobilized cells of Rhodococcus rhodochrous MTCC 3552,, Chemical Engineering Journal, vol. 295, pp.254-267, 2016/07/01/ (2016).

DOI: 10.1016/j.cej.2016.03.042

[8] L. Gao, H. Wan, M. Han, and G. Guan, Deep Desulfurization of Model Oil by Extraction with a Low-viscosity Ionic Liquid [BMIM]SCN,, Petroleum Science and Technology, vol. 32, no. 11, pp.1309-1317, 2014/06/03 (2014).

DOI: 10.1080/10916466.2011.653466

[9] T. A. Saleh, M. N. Siddiqui, and A. A. Al-Arfaj, Kinetic and intraparticle diffusion studies of carbon nanotubes-titania for desulfurization of fuels,, Petroleum Science and Technology, vol. 34, no. 16, pp.1468-1474, 2016/08/17 (2016).

DOI: 10.1080/10916466.2016.1202972

[10] C. Shen, Y. J. Wang, J. H. Xu, Y. C. Lu, and G. S. Luo, Porous glass beads as a new adsorbent to remove sulfur-containing compounds,, Green Chemistry, 10.1039/C2GC16559G vol. 14, no. 4, pp.1009-1015, (2012).

DOI: 10.1039/c2gc16559g

[11] A. J. Hernández-Maldonado, F. H. Yang, G. Qi, and R. T. Yang, Desulfurization of transportation fuels by π-complexation sorbents: Cu(I)-, Ni(II)-, and Zn(II)-zeolites,, Applied Catalysis B: Environmental, vol. 56, no. 1, pp.111-126, 2005/03/10/ (2005).

DOI: 10.1016/j.apcatb.2004.06.023

[12] C. Sentorun-Shalaby, S. K. Saha, X. Ma, and C. Song, Mesoporous-molecular-sieve-supported nickel sorbents for adsorptive desulfurization of commercial ultra-low-sulfur diesel fuel,, Applied Catalysis B: Environmental, vol. 101, no. 3, pp.718-726, 2011/01/14/ (2011).

DOI: 10.1016/j.apcatb.2010.11.014

[13] J. H. Kim, X. Ma, A. Zhou, and C. Song, Ultra-deep desulfurization and denitrogenation of diesel fuel by selective adsorption over three different adsorbents: A study on adsorptive selectivity and mechanism,, Catalysis Today, vol. 111, no. 1, pp.74-83, 2006/01/15/ (2006).

DOI: 10.1016/j.cattod.2005.10.017

[14] M. Seredych and T. J. Bandosz, Adsorption of Dibenzothiophenes on Nanoporous Carbons: Identification of Specific Adsorption Sites Governing Capacity and Selectivity,, Energy & Fuels, vol. 24, no. 6, pp.3352-3360, 2010/06/17 (2010).

DOI: 10.1021/ef9015087

[15] X.-l. Tang, W. Qian, A. Hu, Y.-m. Zhao, N.-n. Fei, and L. Shi, Adsorption of Thiophene on Pt/Ag-Supported Activated Carbons Prepared by Ultrasonic-Assisted Impregnation,, Industrial & Engineering Chemistry Research, vol. 50, no. 15, pp.9363-9367, 2011/08/03 (2011).

DOI: 10.1021/ie2008778

[16] J. Xiao, G. Bian, W. Zhang, and Z. Li, Adsorption of Dibenzothiophene on Ag/Cu/Fe-Supported Activated Carbons Prepared by Ultrasonic-Assisted Impregnation,, Journal of Chemical & Engineering Data, vol. 55, no. 12, pp.5818-5823, 2010/12/09 (2010).

DOI: 10.1021/je1007795

[17] B. Xu et al., Competitive effect of KOH activation on the electrochemical performances of carbon nanotubes for EDLC: Balance between porosity and conductivity,, Electrochimica Acta, vol. 53, no. 26, pp.7730-7735, 2008/11/01/ (2008).

DOI: 10.1016/j.electacta.2008.05.033

[18] T. A. Saleh and G. I. Danmaliki, Influence of acidic and basic treatments of activated carbon derived from waste rubber tires on adsorptive desulfurization of thiophenes,, Journal of the Taiwan Institute of Chemical Engineers, vol. 60, no. J Hazard Mater 244–245 2013, pp.460-468, (2016).

DOI: 10.1016/j.jtice.2015.11.008

[19] E. Svinterikos, I. Zuburtikudis, and M. Al-Marzouqi, Carbon Nanomaterials for the Adsorptive Desulfurization of Fuels,, Journal of Nanotechnology, vol. 2019, p.13, 2019, Art. no. 2809867.

DOI: 10.1155/2019/2809867

[20] T. A. Saleh and G. I. Danmaliki, Influence of acidic and basic treatments of activated carbon derived from waste rubber tires on adsorptive desulfurization of thiophenes,, Journal of the Taiwan Institute of Chemical Engineers, vol. 60, pp.460-468, 2016/03/01/ (2016).

DOI: 10.1016/j.jtice.2015.11.008

[21] A. Mittal, L. Kurup, and J. Mittal, Freundlich and Langmuir adsorption isotherms and kinetics for the removal of Tartrazine from aqueous solutions using hen feathers,, Journal of Hazardous Materials, vol. 146, no. 1, pp.243-248, 2007/07/19/ (2007).

DOI: 10.1016/j.jhazmat.2006.12.012

[22] Y. Shu et al., Hierarchical porous carbons from polysaccharides carboxymethyl cellulose, bacterial cellulose, and citric acid for supercapacitor,, Carbohydrate Polymers, vol. 227, p.115346, 2020/01/01/ (2020).

DOI: 10.1016/j.carbpol.2019.115346

[23] J. Liu, Q. Wu, Q. Zhu, Y. Guan, and B. Xu, Hierarchical porous carbon prepared from mulberry leaves for supercapacitors,, Ionics, vol. 25, no. 10, pp.4935-4941, 2019/10/01 (2019).

DOI: 10.1007/s11581-019-03023-3

[24] M. Azhar et al., One Step Assembly of Thin Films of Carbon Nanotubes on Screen Printed Interface for Electrochemical Aptasensing of Breast Cancer Biomarker,, Sensors, vol. 2016, p.651, 10/06 (2016).

DOI: 10.3390/s16101651

[25] K. Kuśmierek and A. Świątkowski, The influence of different agitation techniques on the adsorption kinetics of 4-chlorophenol on granular activated carbon,, Reaction Kinetics, Mechanisms and Catalysis, vol. 116, no. 1, pp.261-271, 2015/10/01 (2015).

DOI: 10.1007/s11144-015-0889-1

[26] Y. Kismir and A. Z. Aroguz, Adsorption characteristics of the hazardous dye Brilliant Green on Saklıkent mud,, Chemical Engineering Journal, vol. 172, no. 1, pp.199-206, 2011/08/01/ (2011).

DOI: 10.1016/j.cej.2011.05.090

[27] S. S. Meshkat, A. Rashidi, and O. Tavakoli, Removal of mercaptan from natural gas condensate using N-doped carbon nanotube adsorbents: Kinetic and DFT study,, Journal of Natural Gas Science and Engineering, vol. 55, pp.288-297, 2018/07/01/ (2018).

DOI: 10.1016/j.jngse.2018.04.036

[28] G. I. Danmaliki and T. A. Saleh, Effects of bimetallic Ce/Fe nanoparticles on the desulfurization of thiophenes using activated carbon,, Chemical Engineering Journal, vol. 307, pp.914-927, 2017/01/01/ (2017).

DOI: 10.1016/j.cej.2016.08.143

[29] T. A. Saleh, K. O. Sulaiman, S. A. Al-Hammadi, H. Dafalla, and G. I. Danmaliki, Adsorptive desulfurization of thiophene, benzothiophene and dibenzothiophene over activated carbon manganese oxide nanocomposite: with column system evaluation,, Journal of Cleaner Production, vol. 154, pp.401-412, 2017/06/15/ (2017).

DOI: 10.1016/j.jclepro.2017.03.169
