The Effect of Pressing Load on 8 mol% Yttria Stabilized Zirconia Grade 204NS-G

Abstract:

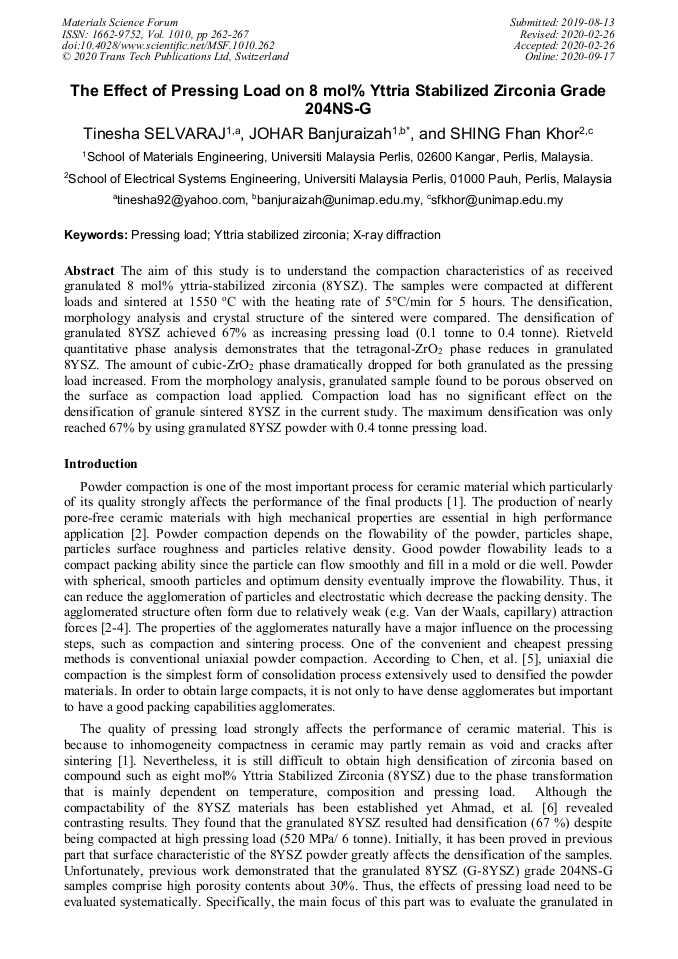

The aim of this study is to understand the compaction characteristics of as received granulated 8 mol% yttria-stabilized zirconia (8YSZ). The samples were compacted at different loads and sintered at 1550 °C with the heating rate of 5°C/min for 5 hours. The densification, morphology analysis and crystal structure of the sintered were compared. The densification of granulated 8YSZ achieved 67% as increasing pressing load (0.1 tonne to 0.4 tonne). Rietveld quantitative phase analysis demonstrates that the tetragonal-ZrO₂ phase reduces in granulated 8YSZ. The amount of cubic-ZrO₂ phase dramatically dropped for both granulated as the pressing load increased. From the morphology analysis, granulated sample found to be porous observed on the surface as compaction load applied. Compaction load has no significant effect on the densification of granule sintered 8YSZ in the current study. The maximum densification was only reached 67% by using granulated 8YSZ powder with 0.4 tonne pressing load.

• Periodical: Materials Science Forum (Volume 1010)
• Pages: 262-267
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1010.262
• Online since: September 2020
• Authors: Tinesha Selvaraj, Banjuraizah Johar*, Shing Fhan Khor
• Keywords: Pressing Load, X-Ray Diffraction, Yttria Stabilized Zirconia

References

[1] K. Yasuda, F. Takase, and Y. Matsuo, Stochastic analysis on coordination number distribution of particles during powder compaction, Adv. Powder Tech. 24 (2013) 871-878.

DOI: 10.1016/j.apt.2013.05.002

[2] C. Wang and S. Chen, The influence of agglomerates on the densification and microstructural evolution in sintering of a multi-particle system, Sci. China Phy. Mech. and Astron. 55 (2012) 1051-1058.

DOI: 10.1007/s11433-012-4743-4

[3] W. F. M. Groot Zevert, A. J. A. Winnubst, G. S. A. M. Theunissen, and A. J. Burggraaf, Powder preparation and compaction behaviour of fine-grained Y-TZP, J. of Mater. Sci. 25 (1990) 3449-3455.

DOI: 10.1007/bf00575369

[4] B. J. Briscoe and N. Özkan, Compaction behaviour of agglomerated alumina powders, Powder Tech. 90 (1997) 195-203.

DOI: 10.1016/s0032-5910(96)03210-x

[5] P. Chen, G. Y. Kim, and J. Ni, Investigations in the compaction and sintering of large ceramic parts, J. of Mater. Process. Tech. 190 (2007) 243-250.

[6] Z. Ahmad, T. Selvaraj, and B. Johar, Microstructure, Crystal structure and ionic conductivity of 3 mol%(Fe, Mn, Co, Zn) doped 8YSZ, MATEC Web of Conf. (2016) 01093.

DOI: 10.1051/matecconf/20167801093

[7] T. Selvaraj, J. Banjuraizah, and S. F. Khor, Iron/Zinc doped 8 mol% Yttria Stabilized Zirconia electrolytes for the green fuel cell technology: A comparative study of thermal analysis, crystalline structure, microstructure, mechanical and electrochemical properties, Mater. Chem. and Phy. 222 (2019) 309-320.

DOI: 10.1016/j.matchemphys.2018.10.019

[8] A. V. Galakhov, S. V. Kutsev, V. A. Kryuchkov, A. V. Prokof'ev, and I. A. Litvinov, Effect of compaction pressure on the sinterability of submicron powders of tetragonal zirconium dioxide, Refractor. 34 (1993) 70-81.

DOI: 10.1007/bf01281300

[9] W. D. Kingery and M. Berg, Study of the initial stages of sintering solids by viscous flow, evaporation‐condensation, and self‐diffusion, J. of Applied Phy. 26 (1955) 1205-1212.

DOI: 10.1063/1.1721874
